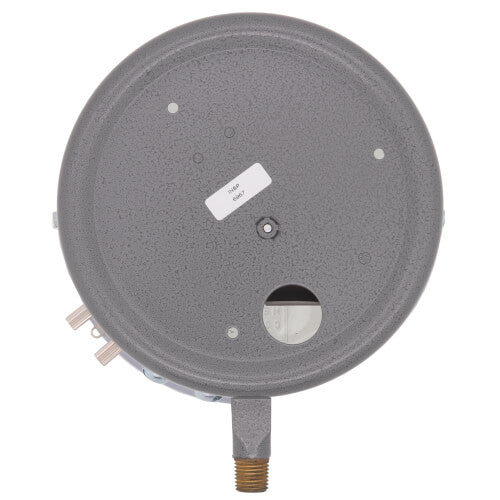

DWYER DA-7031-153-2 Brass Bourdon Tube SPDT Pressure Switch

Product Description

The DWYER DA-7031-153-2 Brass Bourdon Tube SPDT Pressure Switch offers versatile and reliable switch operation for a wide range of industrial control systems. Designed by Dwyer Instruments, this product is ideal for applications needing precise, durable pressure control.

• SPDT configuration supports diverse industrial needs.
• Operating range of 0 to 30 inches Hg VAC.
• Compact and robust construction ensures longevity under rigorous conditions.

Product Highlights

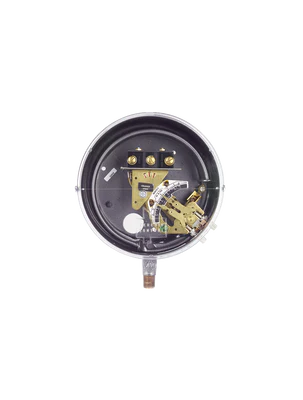

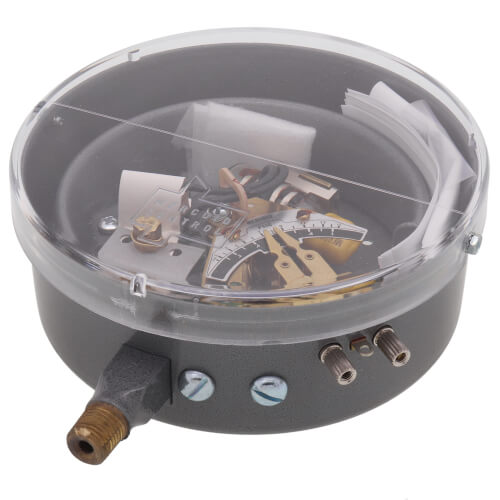

This pressure switch is equipped with a visible calibrated dial and two external adjustments for high and low pressure operating points. Its adjustable deadband maximizes application flexibility.

Product Information

Standard Information

• Applications: Suitable for compressors, HVAC, pump control, and mechanical process equipment.
• Features: Includes an on/off indication, setpoint adjustments, and minimum deadband over a full range.

Technical Specifications

• Material: Wetted parts constructed from Brass and Stainless Steel.
• Temperature Limit: Up to 180°F.
• Pressure Limit: Up to full range of the operating point.
• Enclosure Rating: Options include general purpose, weatherproof, or explosion-proof.
• Electrical Rating: Refer to the product's electrical ratings chart.
• Conduit Connection: Various options including 1/2 inch and 3/4 inch NPT.
• Process Connection: Available in 1/4 inch and 1/2 inch male NPT.
• Mounting Orientation: Vertical setup recommended.
