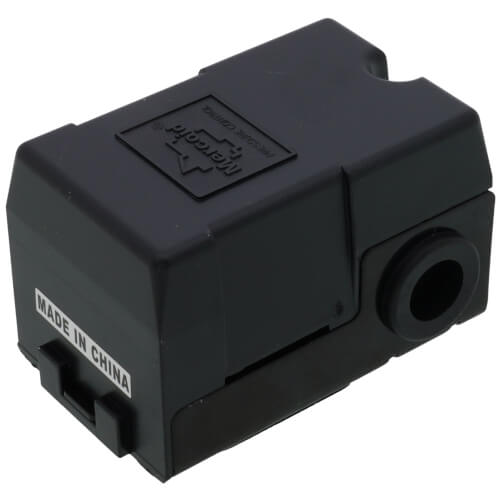

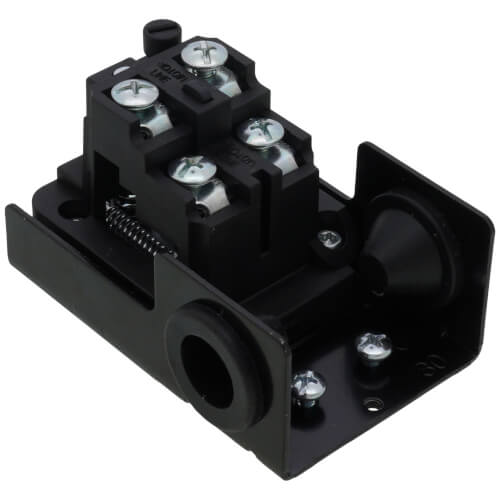

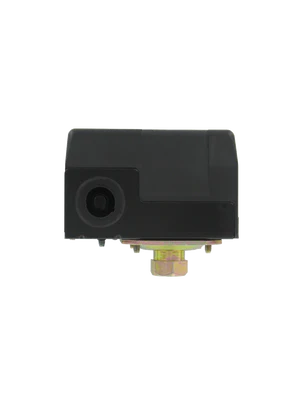

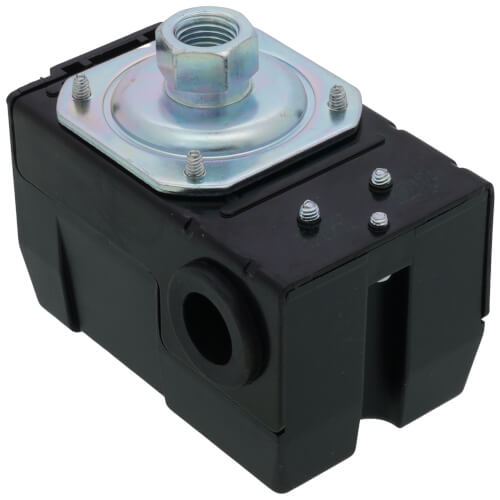

Dwyer CXA-R1 Water Pump Pressure Switch, Battery Powered, NO, Range 15-80 psig (1.0-5.5 bar)

Product Description

The Dwyer CXA-R1 Water Pump Pressure Switch, recognized for its reliability in water system control, features a simple set point and deadband adjustment. Ideal for various water systems, this pressure switch ensures efficient operation in all installations. Constructed with robust materials, it withstands demanding conditions, proving invaluable in industrial settings.

• Adjustable settings via internal screws.
• Can be mounted in any orientation, enhancing versatility.
• Designed for compatibility with gases and liquids that do not corrode wetted materials.

Product Highlights

With a pressure range of 15-80 psig and a standard 1/4 inch female NPT process connection, the CXA-R1 facilitates straightforward installation and maintenance, making it a top choice for professionals in the field.

Product Information

Standard Information

• Temperature Limits: Up to 140 degrees Fahrenheit.
• Pressure Limits: Detailed in the model chart available on the catalog page.

Technical Specifications

• Electrical Ratings: 20 A at 120 VAC, 12 A at 240 VAC.
• Enclosure Rating: General purpose.
• Agency Approvals: CE certified.
• Weight: 0.75 pounds.
