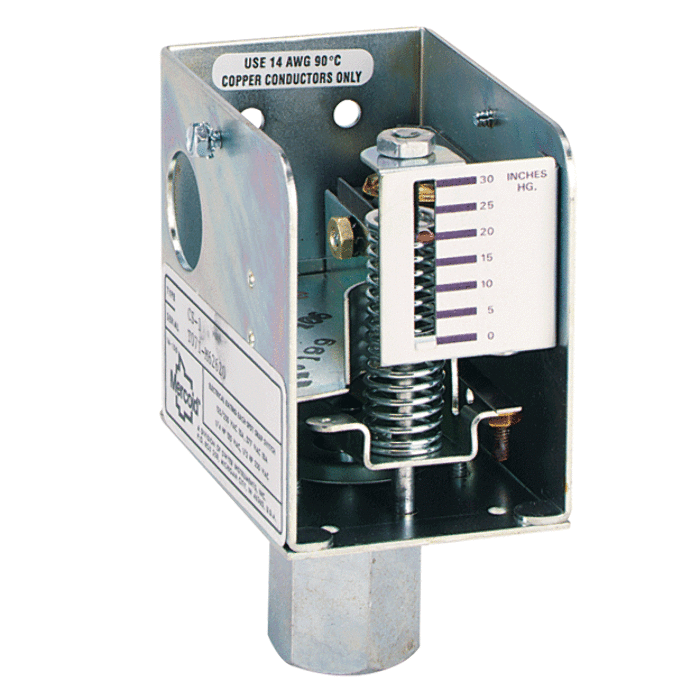

Dwyer CS-1 Diaphragm Pressure Switch 1-30HgVac

Product Description

The Dwyer Instruments CS-1 is a diaphragm pressure switch designed for varying industrial applications. It has an adjustable measuring range of one to thirty inches of mercury vacuum (Hg Vac). The switch operates on an SPDT mechanism, providing reliable switching for various systems.

• Adjustable vacuum range from one to thirty inches of mercury.
• SPDT snap action switch for enhanced operation.
• Ideal for HVAC systems, small compressors, and industrial uses.

Product Highlights

This model is ideal for precise pressure monitoring in multiple settings.

Product Information

Standard Information

• Brand: Dwyer Instruments
• Item Number: CS-1

Technical Specifications

• Measuring Range: 1 to 30 Hg Vac
• Deadband: 1.5 inches of mercury
• Maximum Load: 30#
• Construction: Durable materials for longevity
• Mounting Options: Versatile, can be installed in various orientations
• Weight: 1.42 pounds
• Dimensions: 5.2 inches (length) x 7.7 inches (width) x 2.15 inches (height)
