Dwyer BPS-015 24vac to .1-27vdc Power Supply Control

Product Description

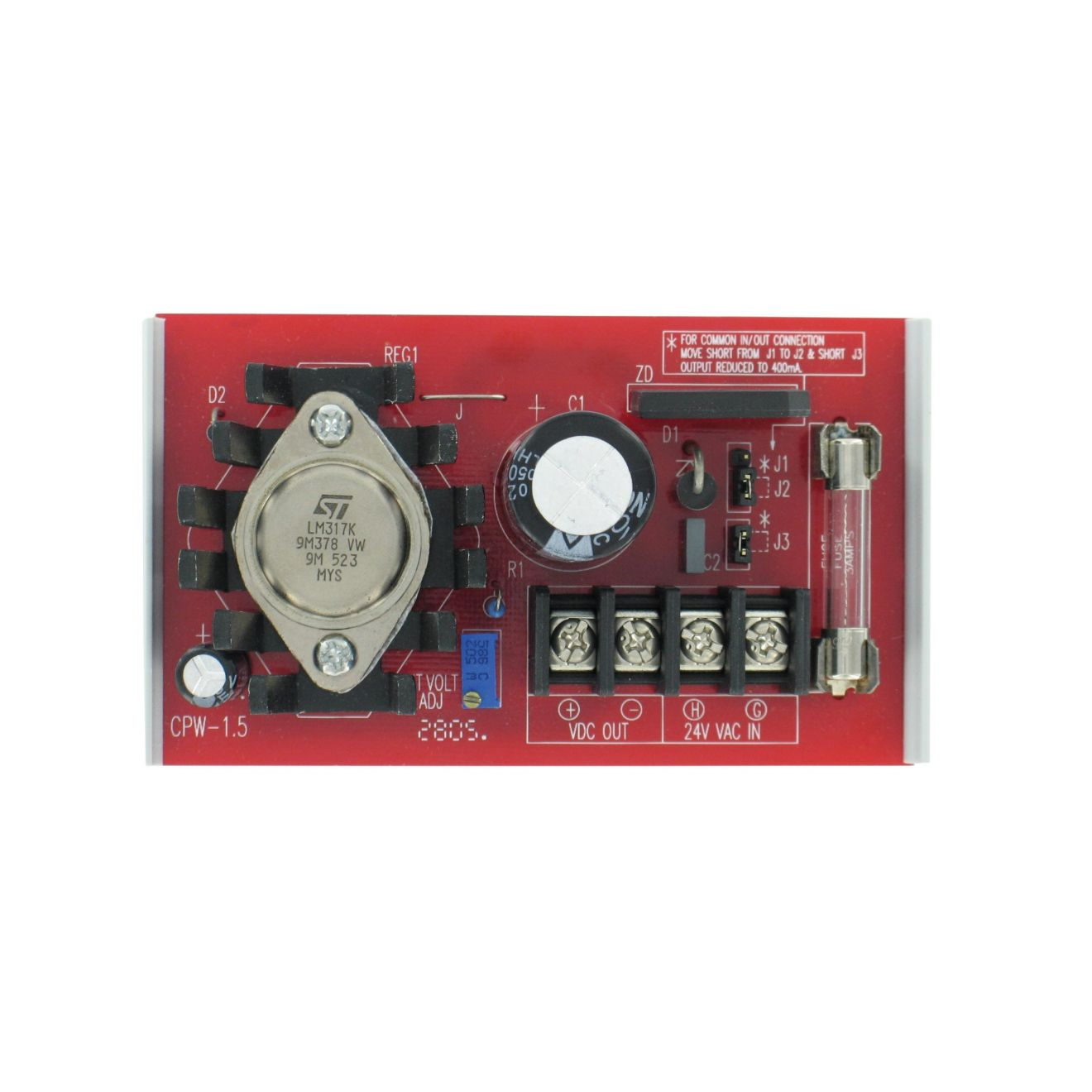

The Dwyer BPS-015 is a 24vac to .1-27vdc power supply control. It converts 24 VAC to a regulated DC power source for transmitters with 4 to 20 mA outputs. The output voltage can be field adjusted from 1.5V to 27V using a potentiometer. A 3A fuse protects the power supply from over-current conditions.

• Input: 24 VAC/VDC 50/60 Hz
• Output: 24 VDC (full wave rectified and regulated) adjustable 1.5 to 27 VDC
• Maximum Current Output: 1.5A (de-rated to 400 mA for non-isolated circuits)

Product Highlights

This power supply features a snap-on bracket that can be quickly surface mounted to any flat surface.

Product Information

Standard Information

• Brand: DWYER
• Manufacturer Part Number: BPS-015
• Country of Origin: Macao

Technical Specifications

• Input: 24 VAC/VDC 50/60 Hz
• Output: 24 VDC (full wave rectified and regulated) adjustable 1.5 to 27 VDC
• Maximum Current Output: 1.5A (de-rated to 400 mA for non-isolated circuits)
• Operating Temperature: 32 to 130°F (0 to 55°C)
• Humidity Limits: 95% (non-condensing)
• Frequency Input Range: 50/60 Hz
• Operating Temperature, Max: 130 °F
• Operating Temperature, Min: 32 °F
• Output Detail: Voltage Output: 24 VDC (full wave rectified and regulated) adjustable 1.5 to 27 VDC, Current Output: 1.5A (de-rated to 400 mA for non-isolated circuits)
• Relative Humidity: 95% (Non-Condensing)
• Voltage Input Range: 24 Vac/Vdc
• Voltage Output Range: 1.5 to 27 Vdc
• Primary Voltage Input: 24 VAC
• DC Voltage Output Type: Adjustable
• Type: DC Power Supply
• Over Current Protection: Fuse
• Primary Voltage: 24 VAC
• DC Current Output: 1.5 Amps
• Application: Building Automation System,HVAC,BAS
• Mount: Snap Track,Panel
• MPN: BPS-015
• Brand: DWYER
• Condition: New
• No. of Outputs: 1 Output
• Input Voltage VAC: 24V AC
• Power Supply Output Type: Adjustable
• Output Voltage - Output 1: 1.5 to 27VDC
• Output Current - Output 1: 1.5A
