Product Description

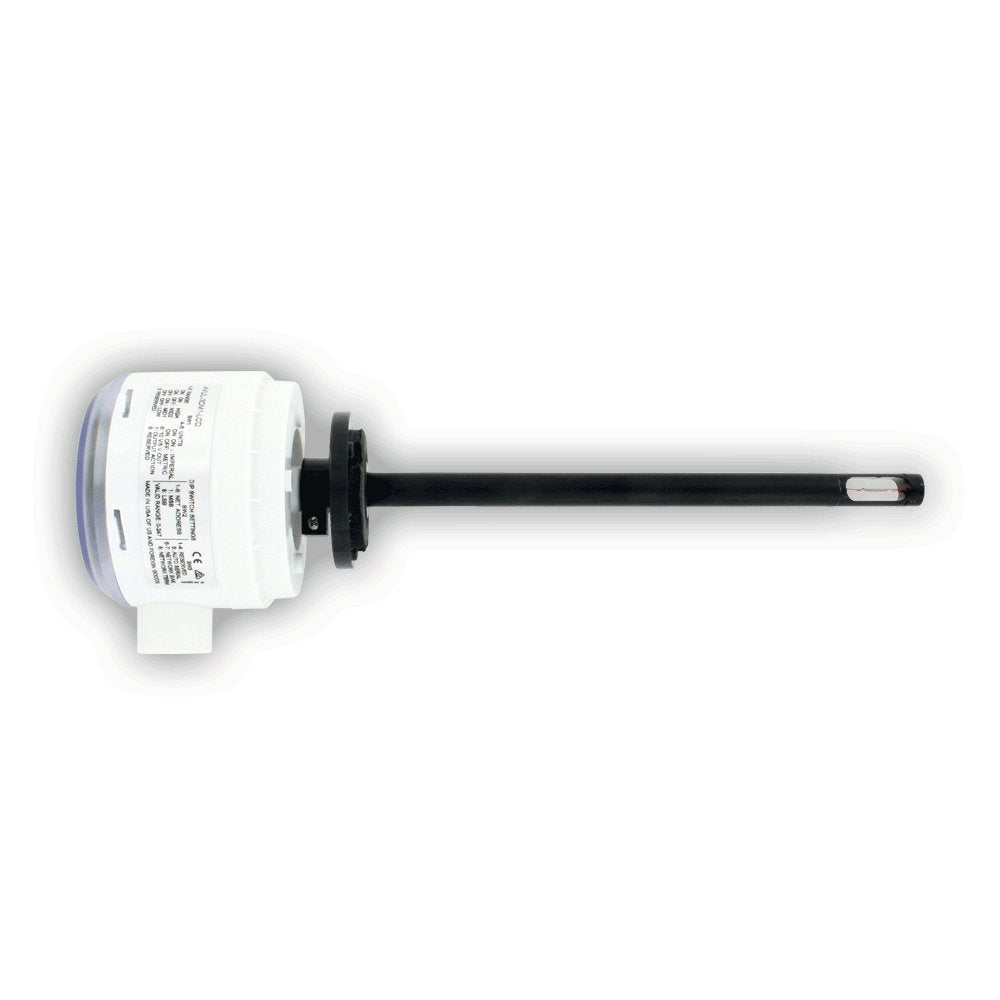

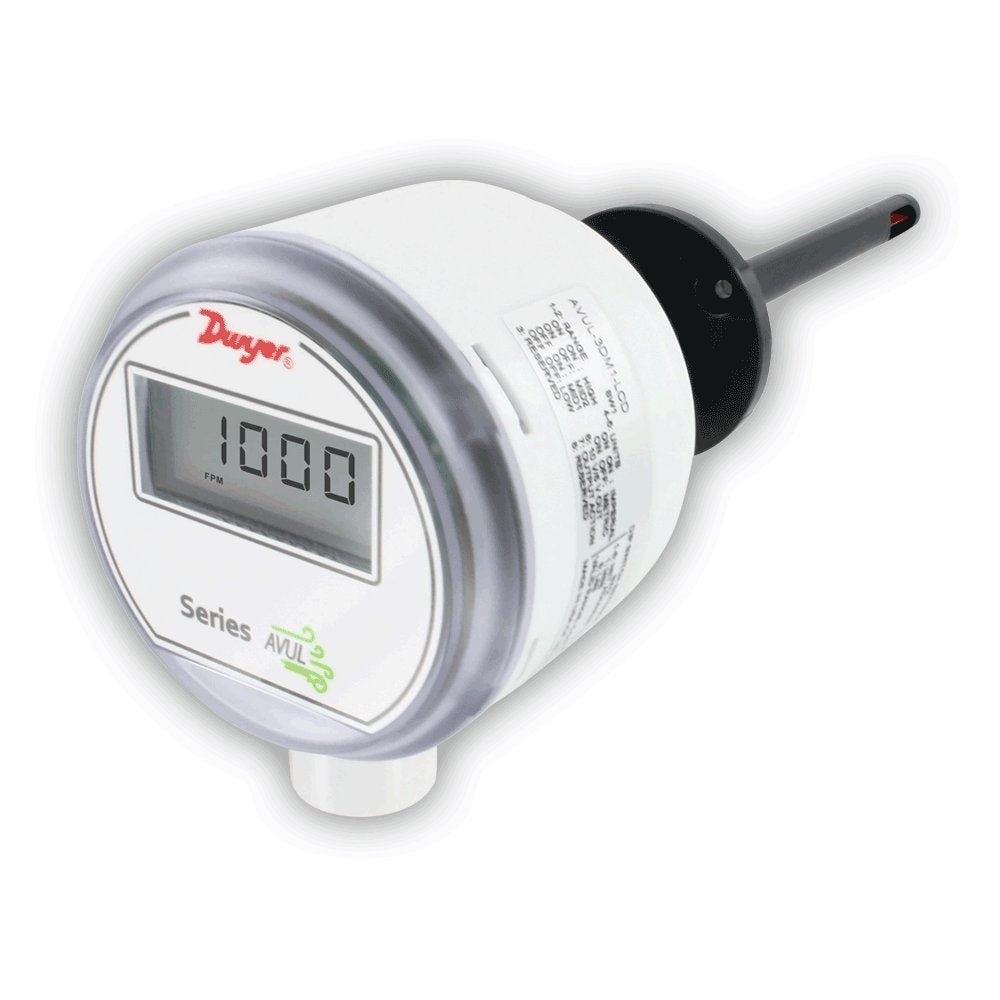

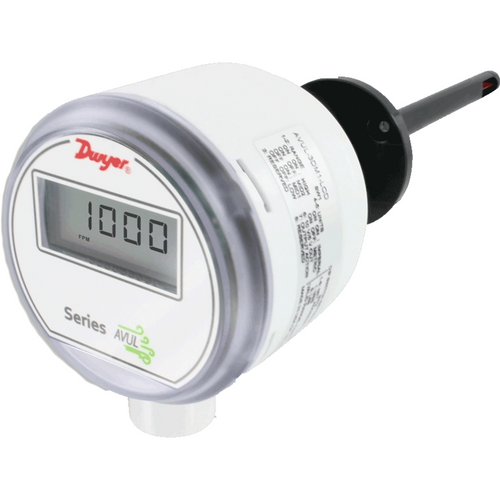

The DWYER AVUL-3DA1-LCD air velocity transmitter accurately measures air velocity or volumetric flow in imperial or metric units. Simultaneous current and voltage outputs provide universal inputs to monitoring equipment. The output range, units, and 0 to 5/10 VDC output can be configured via local DIP switches.
- Measures air velocity or volumetric flow
- Configurable output range and units
- Optional integral display for local monitoring
Product Highlights
The AVUL series air velocity transmitter is designed for use in VAV systems, building ducts, and HVAC systems.
Product Information
Standard Information
-
Brand: DWYER
-
Manufacturer Part Number: AVUL-3DA1-LCD
-
Country of Origin: United States
Technical Specifications
-
Service: Clean air and non-combustible, compatible gases
-
Temperature Limits: 32 to 122 F (0 to 50 C)
-
Humidity Limits: 5 to 95% RH, non-condensing
-
Power Requirements: 24 VDC 20% or 24 VAC 20%
-
Output Signal: 4 mA to 20 mA
-
Response Time (90%): 10 seconds, typical
-
Zero & Span Adjustments: Digital push buttons
-

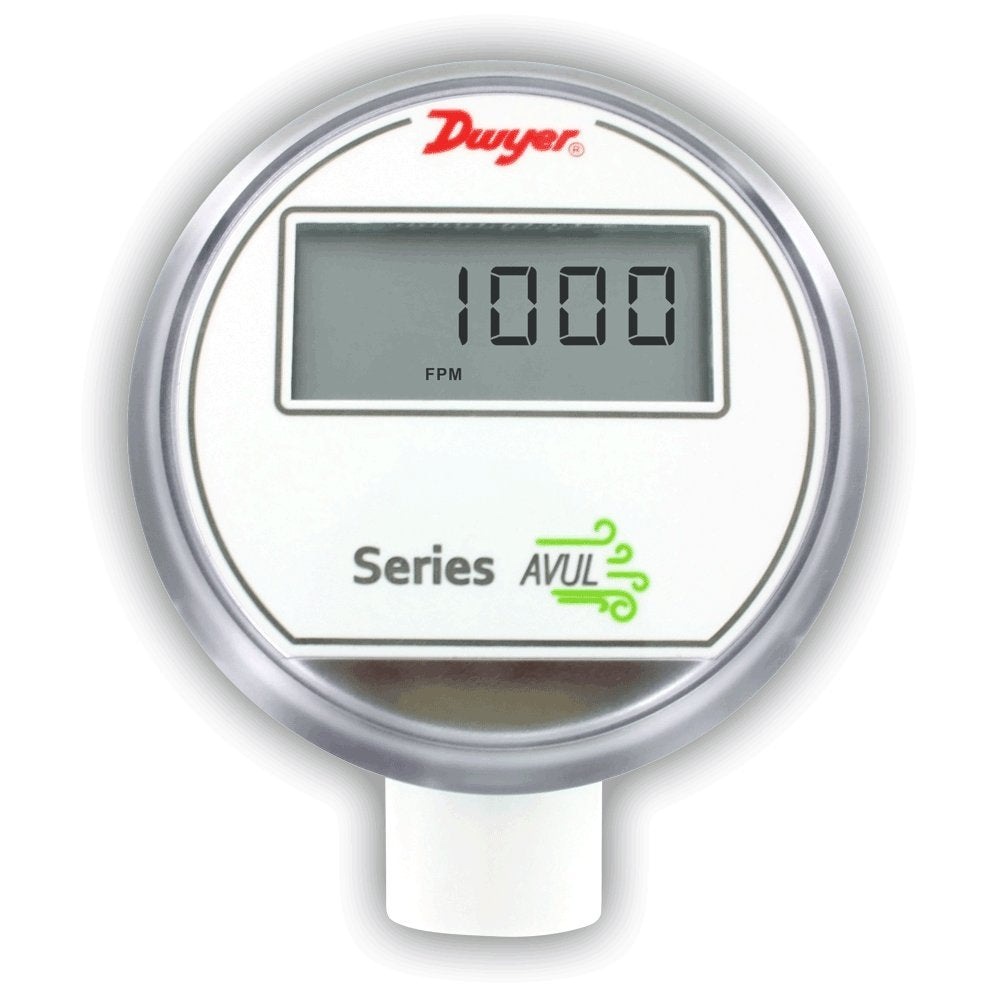

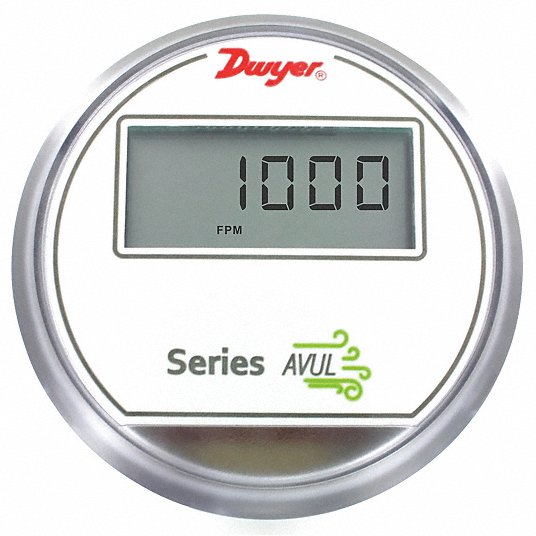

Display: LCD
-
Nominal Accuracy: +/-3%
-
Velocity Accuracy: +/-3% (32 Degrees to 122 Degrees F)
-
Velocity Ranges: FPM: 1000, 2000, 3000, 4000
-
Communication Type: Analog Universal
-
Probe Length (In.): 7 41/64 in
-
Maximum Feet Per Minute: 4000 FPM
-
Connection Size: 1/2 in
-
Type: Air Velocity Transmitter
-
Connection: 1/2 in NPS thread
-
Accuracy: (3% of reading +0.2 m/s) @ standard conditions, depending on model.
-
Range: 1000, 2000, 3000, 4000 FPM (5, 10, 15, 20 m/s; Field selectable.
-
Current Consumption: 60 mA max
-
Device Load: 1/8 unit load.
-
Electrical Entry: 1/2 NPS thread; Accessory (A-151): Cable gland for 5 to 10 mm diameter cable.
-
Enclosure Rating: NEMA 4X (IP66).
-
Compliance: CE.
-
Flow Transmitter Output: 4mA to 20mA, 0V to 5V, 0V to 10V
-
Supply Voltage Min: 19.2V
-
Supply Voltage Max: 28.8V
-
Media Type: Argon, Carbon Dioxide, Clean Dry Air, Helium, Nitrogen, Non-Corrosive Dry Gas
-
Sensor Mounting: Duct Mount
-
Operating Temperature Min: 0 C
-
Operating Temperature Max: 50 C
-
Product Range: AVUL Series
-
SVHC: No SVHC (25-Jun-2025)
-
Operating Temperature: 122 F
-
Air Velocity Measured: 1,000 fpm to 4,000 fpm
-
Digital Display Screen Type: LCD
-
Maximum AC Voltage Required: 24 V
-
Maximum DC Voltage Required: 24 V
-
Maximum Operating Temperature: 122 F
-
Probe Diameter: 0.47 in
-
Maximum Output Signal: 20 mA
-
Maximum Probe Length: 7.64 in
-
Maximum Velocity Measured: 4,000 fpm
-
Minimum Temperature Measured: 32 F
-
Minimum Velocity Measured: 1,000 fpm
-
Minumum Output Signal: 4 mA
-
UNSPSC: 41112509
-
Dia. (In.): 15/32 in
