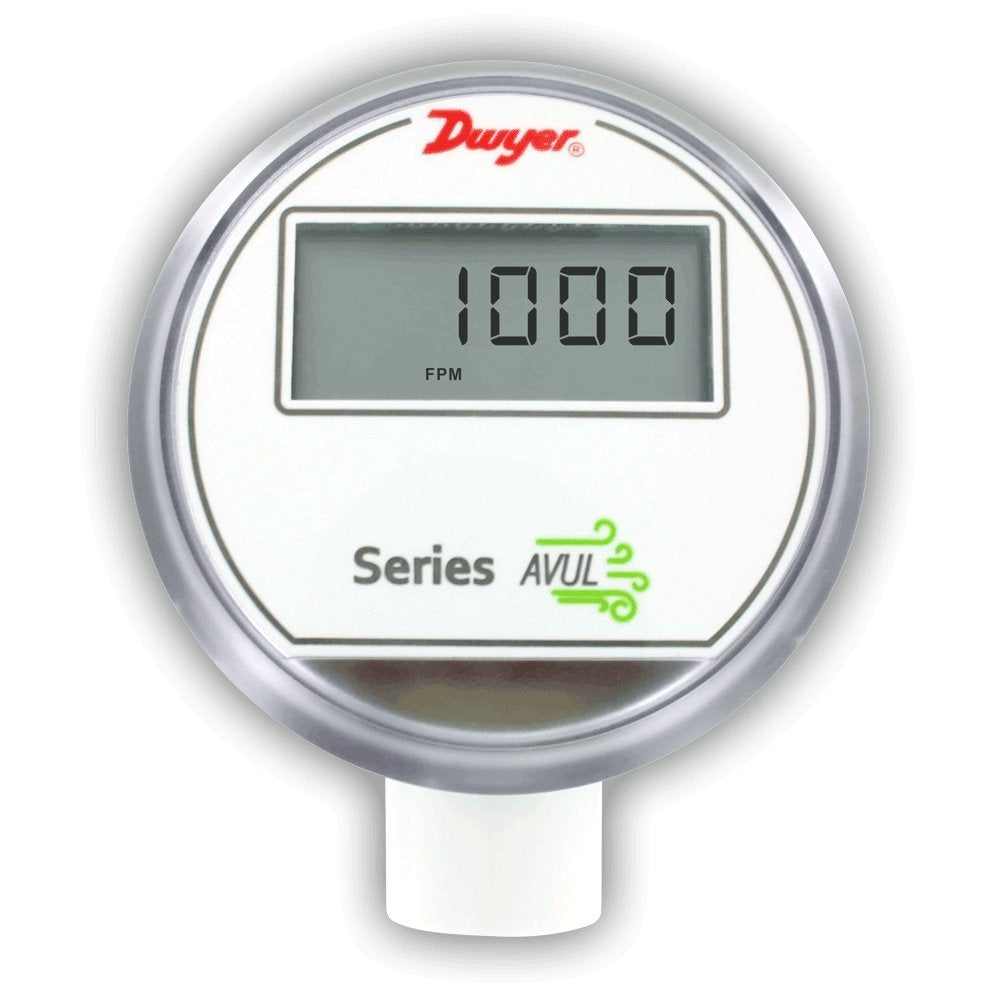

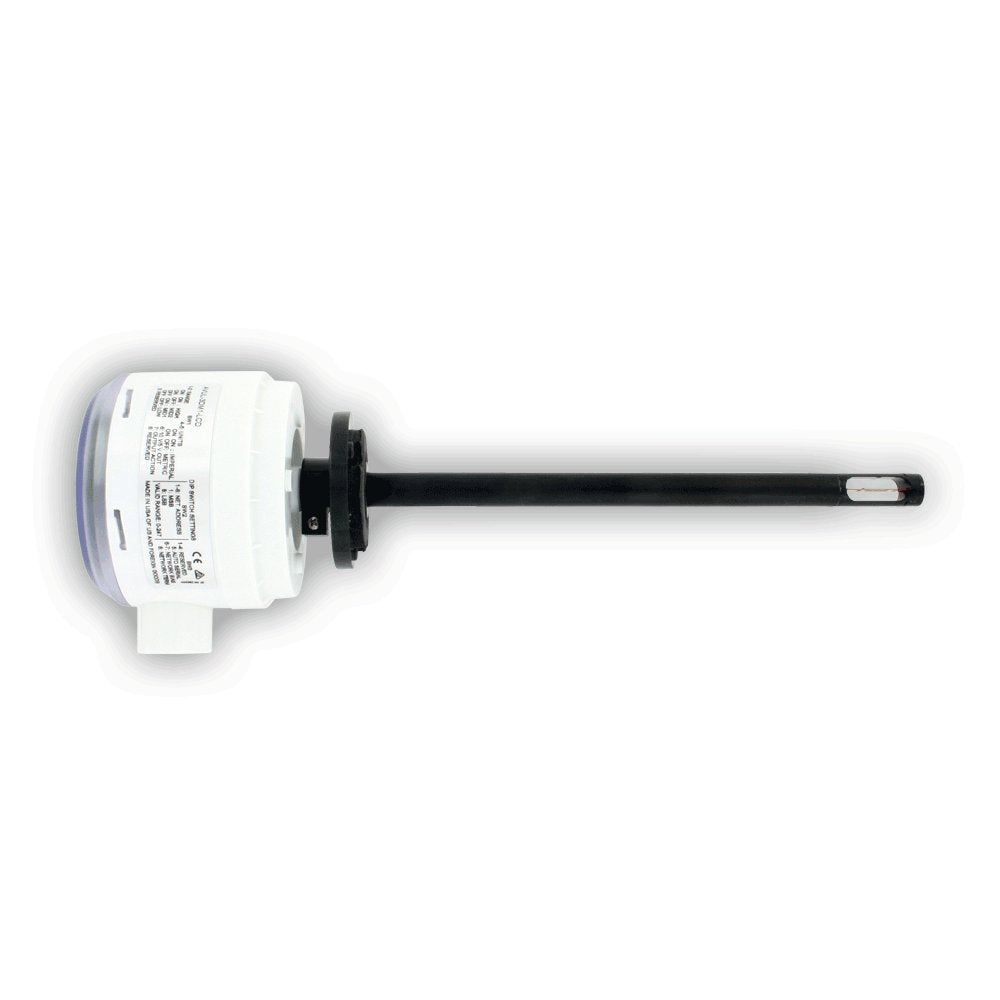

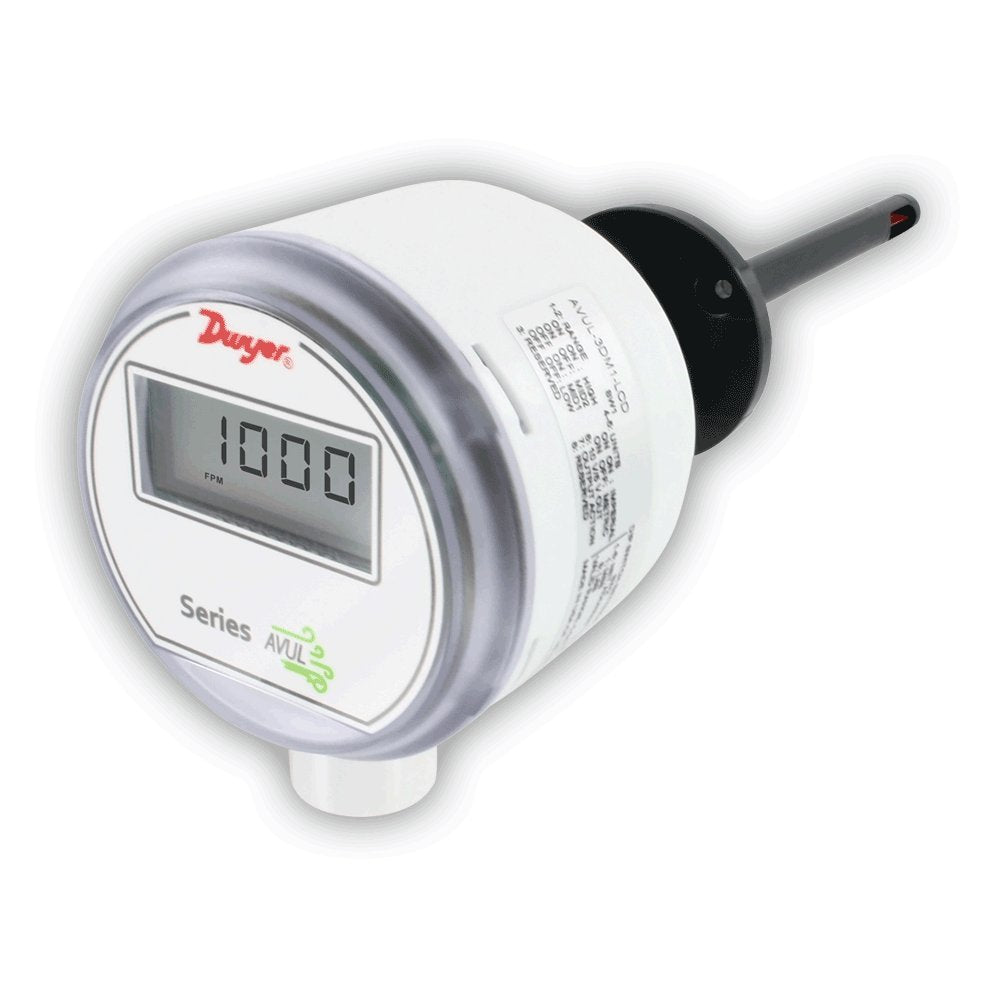

Dwyer AVUL-3DA1 Air Velocity Transmitter 3% Accuracy Duct Mount Universal Current/Voltage Outputs

Product Description

The DWYER AVUL-3DA1 air velocity transmitter accurately measures air velocity or volumetric flow. Simultaneous current and voltage outputs provide universal inputs to monitoring equipment. Output range, units, and 0 to 5/10 VDC output can be configured via local DIP switches. It is designed for use with clean air and compatible gases.

• Measures air velocity or volumetric flow in imperial or metric units.
• Features simultaneous current and voltage outputs for universal inputs.
• Configurable output range, units, and 0 to 5/10 VDC output via DIP switches.

Product Highlights

The Dwyer AVUL Series Air Velocity Transmitter offers accurate air velocity measurement with versatile output options and easy configuration for various monitoring applications.

Product Information

Standard Information

• Brand: DWYER
• Manufacturer Part Number: AVUL-3DA1
• Country of Origin: United States

Technical Specifications

• Service: Clean air and non-combustible, compatible gases.
• Temperature Limits: 32 to 122°F (0 to 50°C)
• Humidity Limits: 5 to 95% RH, non-condensing
• Power Requirements: 24 VDC ±20% or 24 VAC ±20%
• Output Signals: 4 to 20 mA, 0 to 5 VDC, 0 to 10 VDC
• Response Time (90%): 10 seconds, typical
• Zero & Span Adjustments: Digital push buttons
• Output: 4 to 20ma DC
• Dia. (In.): 15/32 in
• Display Type: None
• Product Type: Air Velocity Transmitter
• Operating Temp.: 32 Degrees to 122 Degrees F (0 Degrees to 50 Degrees C)
• Velocity Ranges: FPM: 1000, 2000, 3000, 4000
• Nominal Accuracy: +/-3%
• Velocity Accuracy: +/-3% (32 Degrees to 122 Degrees F)
• Communication Type: Analog Universal
• Probe Length (In.): 7 41/64 in
• Maximum Feet Per Minute: 4000 FPM
• Manufacturers Warranty Length: 1 yr
• Country of Origin (subject to change): United States
• Connection Size: 1/2 in
• Type: Air Velocity Transmitter
• Connection: 1/2 in NPS thread
• Accuracy: 3%
• Length: 8 in
• Max Temperature: 122 °F
• Velocity Range: 0 - 4,000 FPM
• Product Series: AVUL
• Manufacturer Part Number: AVUL-3DA1
• Manufacturer: Dwyer Instruments
• Family Series: Dwyer Instruments Anemometers, AVUL Series
• Description: Air Velocity Transmitter 3pct. Acc Duct Mount Universal Current/ Voltage Outputs
• Humidity Range: 5-95 %
• Air Temperature (F): 32-122 °F
• Temperature Units: Degree C, Degree F
• Net Weight: 0.86 lbs
• Gross Weight: 0.86 lbs
