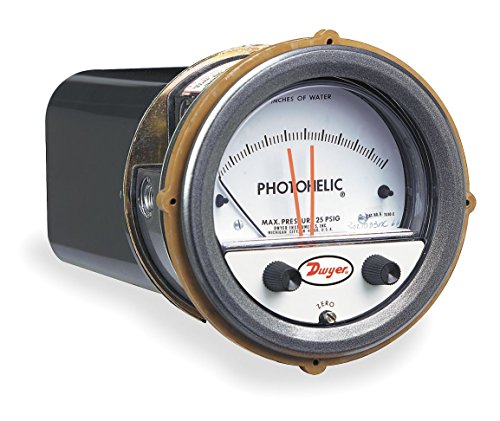

Dwyer A3002 Photohelic Pressure Switch/Gauge 0-2 WC 1/8 NPT(F)

Product Description

The Dwyer A3002 Photohelic Pressure Switch/Gauge is designed for accurate pressure measurement and control in various industrial applications. This device offers a differential pressure range of 0 to 2 inches water column (WC) and features a 1/8 NPT female connection.

• Diaphragm pressure sensor for precise measurements
• Durable aluminum case for long-lasting use
• Switch point adjustment for customizable operation

Product Highlights

The Dwyer A3002 Photohelic Pressure Switch/Gauge is engineered to measure and control pressure accurately. Suitable for gases and liquids, this device is ideal for HVAC, plumbing, and manufacturing industries.

Product Information

Standard Information

• Brand: Dwyer Instruments
• MPN: A3002
• Part Number: A3002

Technical Specifications

• Accuracy: +/-2.00%
• Contact Rating: 10A at 120/240VAC, 10A at 28VDC
• Differential Pressure Range: 0 to 2 inches WC
• Body Material: Die Cast Aluminum
• Gauge Case Material: Metal
• Gauge Operating Temperature Range: 20 to 120 degrees Fahrenheit
• Power Requirement: 110 to 120V AC at 50/60 Hz
• Process Connection Size: 1/8 inch NPT Female
• Switch Contact Type: DPDT
• Process Temperature Range: 20 to 120 degrees Fahrenheit
• Nominal Dial Size: 3.75 inches
