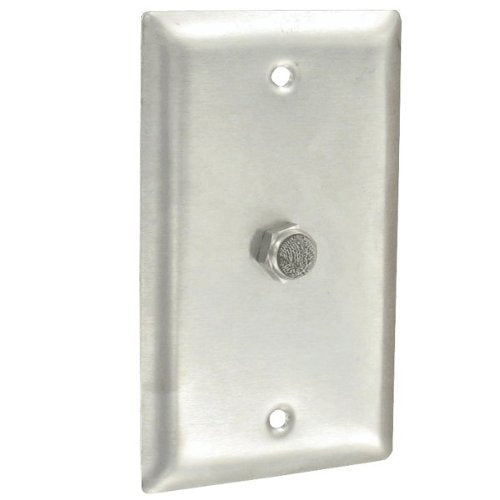

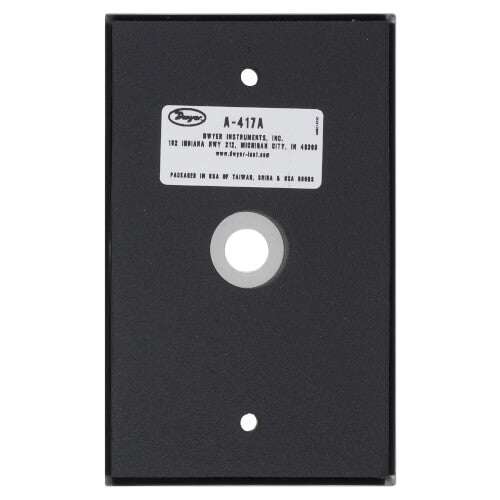

Dwyer A-417A Static Pressure Pickup Plate Wall Mount

Product Description

The Dwyer A-417A Static Pressure Pickup Plate is designed for precise detection of static pressure in various applications. This wall-mountable plate is essential for HVAC professionals and others in need of reliable pressure measurement.

• Model: A-417A
• Wall mountable
• Includes foam gasket and mounting screws

Product Highlights

Detects static pressure accurately for HVAC systems and other applications. The stainless steel wall plate includes a 60-micron filter and is compatible with 1/8 to 3/16 inch ID tubing.

Product Information

Standard Information

• Brand: Dwyer Instruments
• MPN: A-417A
• Model: A-417A
• Color: Stainless Steel

Technical Specifications

• Material: Stainless Steel
• Connection Size: 1/8 inch, 3/16 inch
• Connection Type: Hose Barb
• Filter: 60 Micron
• Mounting: Single Gang Electrical Box
• Includes: Foam Gasket, Mounting Screws
• Usage: Static Pressure Detection
• Compatibility: Dwyer Megahelic Gauges
• Weight: 0.16 lbs
• Dimensions: 3.7 inches (L) x 5.1 inches (W) x 0.95 inches (H)
