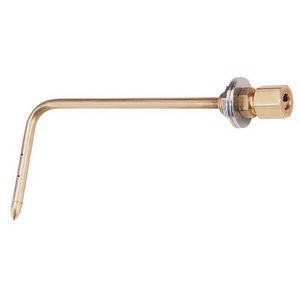

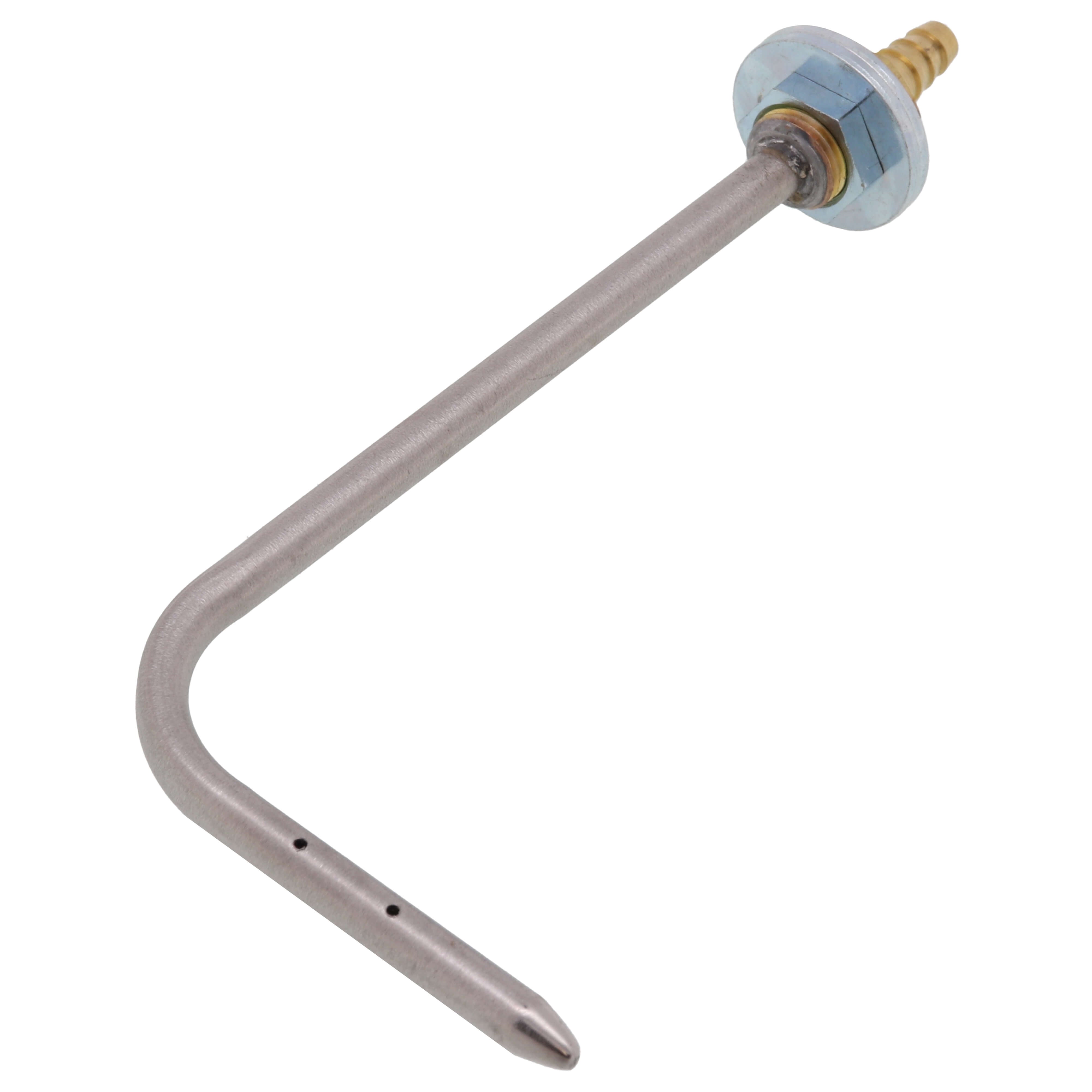

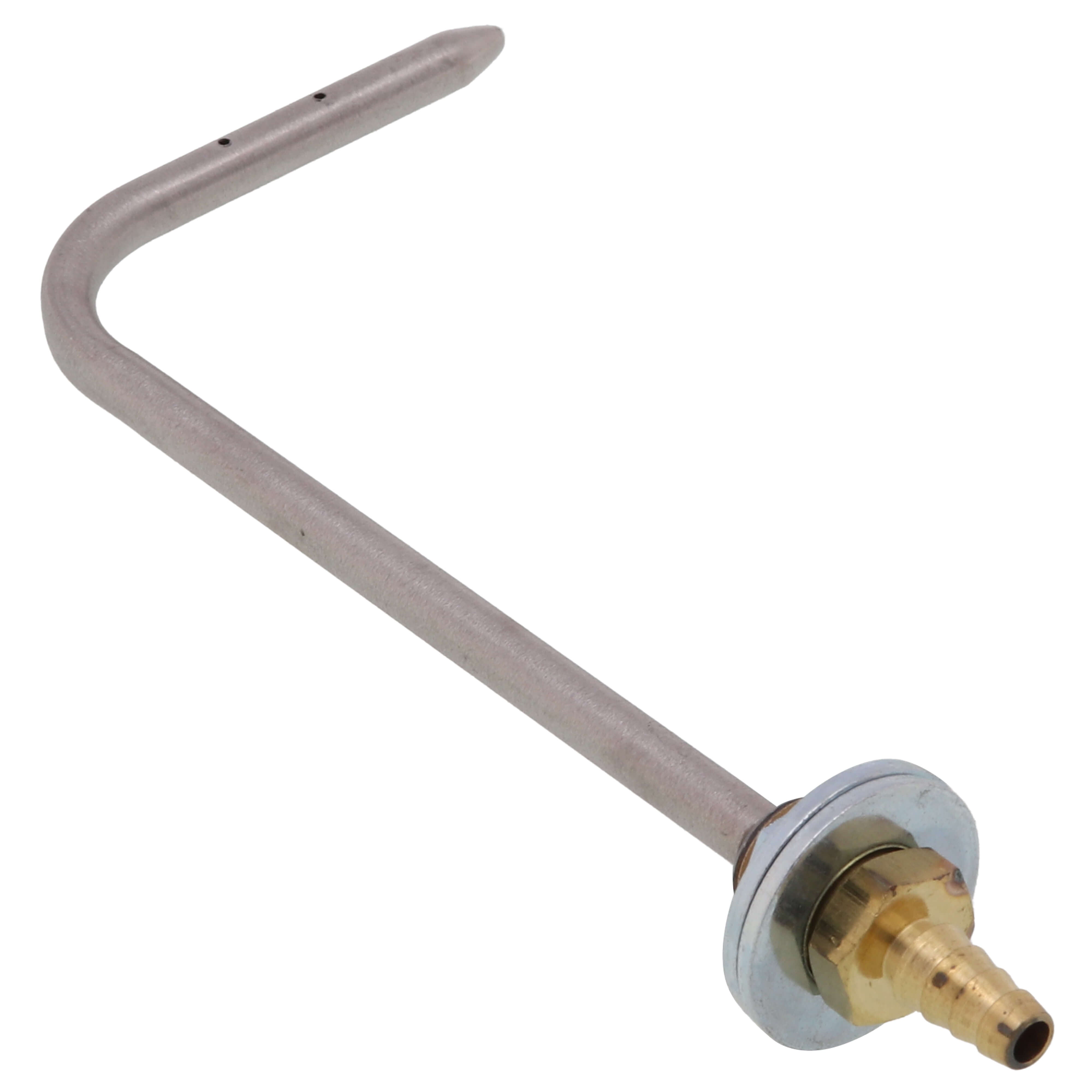

Dwyer A-302 Static Pressure Tips 3/16 or 1/8 Plastic/Rubber Tubing 4 inch Insertion Depth

Product Description

The Dwyer A-302 Static Pressure Tips, MPN A-302, are designed for use with 3/16 or 1/8 plastic or rubber tubing. Featuring a 4 inch insertion depth, these tips provide precise measurements and are suitable for permanent setups with manometers, Magnehelic gauges, pressure switches, and other controllers to sense static pressure drop across air filters, cooling coils, blower input, and discharge pressures.

• 3/16 or 1/8 rubber/plastic tubing connection
• 4 inch insertion depth
• Four radially drilled, 0.040 inch sensing holes

Product Highlights

Ideal for sensing static pressure drops in air filters and cooling coils, these Dwyer Static Pressure Tips ensure accurate and stable readings, making them reliable for industrial applications.

Product Information

Standard Information

• Brand: Dwyer Instruments
• MPN: A-302
• Material: Stainless Steel

Technical Specifications

• Insertion Depth: 4 inches
• Connection Size: 3/16 or 1/8 rubber/plastic tubing
• Sensing Holes: 0.040 inches, radially drilled
• Weight: 0.07 pounds
• Dimensions: 6.05 inches (width) x 1.05 inches (height) x 2 inches (length)
