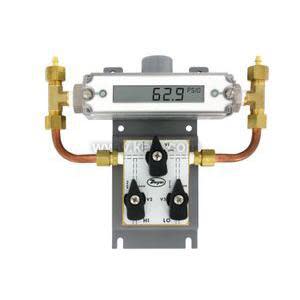

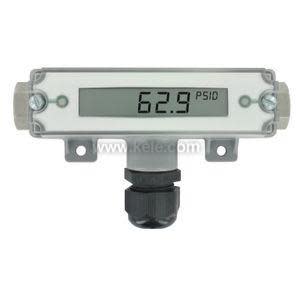

Dwyer 629C03CHP2E5S3LCD+ Wet/Wet Differential Pressure Transmitter

Product Description

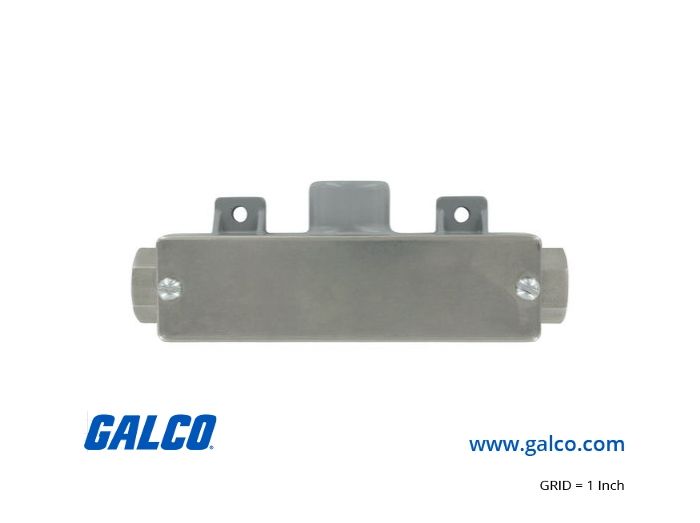

The Dwyer 629C03CHP2E5S3LCD+ is a reliable differential pressure transmitter suitable for monitoring differential pressure of gases and liquids. This transmitter uses advanced dual pressure sensors to convert pressure variations into an output signal effectively. It is enclosed in a robust conduit housing featuring one quarter inch NPT female process connections and a half inch NPT female conduit electrical connection. Designed to comply with NEMA 4X (IP66) standards, it ensures durability and reliability in various conditions.

• Measures differential pressure
• Includes 1/4 NPT female process connections
• Provides field selectable voltage output

Product Highlights

This device is ideal for HVAC applications, laboratories, and industrial processes, providing accurate readings across a wide range of pressures.

Product Information

Standard Information

• Brand: Dwyer
• MPN: 629C03CHP2E5S3LCD+

Technical Specifications

• Measurement Pressure Type: Differential
• Measurement Pressure, Min: 0 psi
• Measurement Pressure, Max: 25 psi
• Accuracy: 0.5%
• Media Compatibility: Air, Argon, Carbon Dioxide, Helium, Hydrogen, Nitrogen, Oxygen, Steam, Liquid/Gas
• Output Signal: Voltage
• Electrical Output: 0 to 5Vdc, 1 to 5Vdc, 0 to 10Vdc, 2 to 10 Vdc
• Response Time: 400 ms
• Supply Voltage: 13 to 35 Vdc/16 to 33 Vac
• Power Consumption: max 28 mA
• Operating Temperature Range: -18 °C to 93 °C
• Process Connection Size: 1/4 inch
• Enclosure Rating: IP66, NEMA Type 4X
• Weight: 286 g
• Display: LCD
• Dimensions: 5.15W x 3.28H x 1.6D (14.7 x 8.3 x 4.1 cm)
