Dwyer 616KX-200-104-IN Differential Pressure Transmitter 2% FSO 0 to 1 W.C. Unidirectional

Product Description

The DWYER 616KX-200-104-IN Series 616KX Differential Pressure Transmitters are designed for installers and maintenance professionals seeking maximum flexibility in pressure ranges within a compact design. This transmitter features edge-mounted push button zero for easy access and field-selectable output signals. The molded housing accommodates three sizes of both imperial and metric process connections, along with optional 1/8 in NPT or BSPT threaded models.

• Extensive range and accuracy selection suitable for a broad range of applications offering maximum flexibility in one product platform
• Edge mounted push button zero for easy access in all mounting configurations saves time
• Optional 1/8" NPT and BSPT process connection allows customer to use their own fittings

Product Highlights

Ideal for pressure range flexibility, the compact design features easy access zeroing and versatile process connections.

Product Information

Standard Information

• Brand: DWYER
• Manufacturer Part Number: 616KX-200-104-IN

Technical Specifications

• Display: No
• Enclosure Rating: NEMA 1 (IP20)
• Operating Temperature Range: -4F to 159F
• Service: Air and non-combustible, compatible gases
• Output Signal: 4-20 mA, or option with field selectable: 0-10 V, 0-5 V, 2-10 V, and 1-5 V
• Temperature Limits: -4F to 159F, -20C to 70C
• Pressure Limits: 3.6 psig for ranges 0-1” w.c., 6 psig for ranges 0-40” w.c.
• Power Requirements: 4-20mA output: 10-35 VDC (2-wire) or 12-26 VAC (4-wire); 5V output: 10-35 VDC (3-wire) or 12-26 VAC (4-wire); 10V output: 13-35 VDC (3-wire) or 12-26 VAC (4-wire)
• Current Consumption: 21 mA max

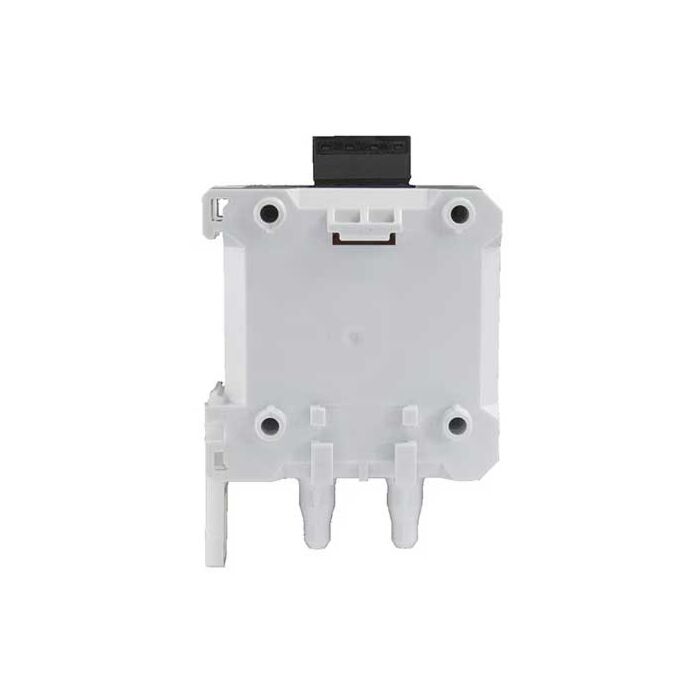

• Mounting Orientation: Not sensitive to position. 35mm DIN rail side and back. Mounting holes for wall mount with #6 screws
• Component: Differential Pressure Transmitter
• Manufacturer: Dwyer Instruments
• Accuracy: +/- 2 %
• Measurement Pressure, Max: 1 inH2O
• Measurement Pressure, Min: 0 inH2O
• Range: 0 in w.c. to 1 in w.c. (250 Pa, 25 mm w.c.)
