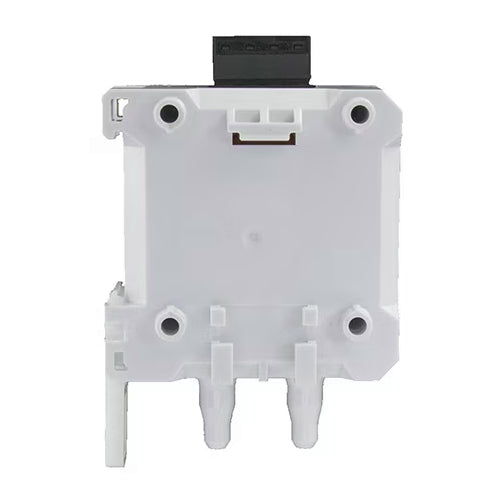

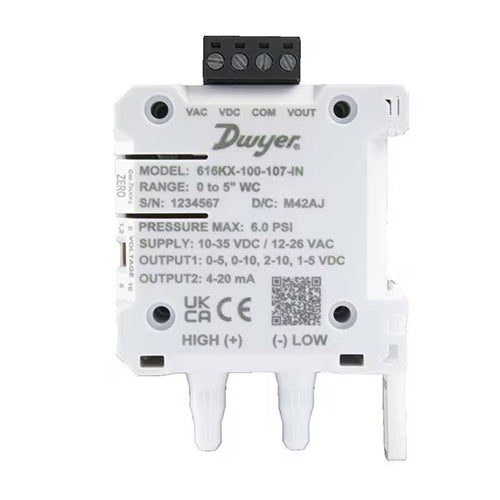

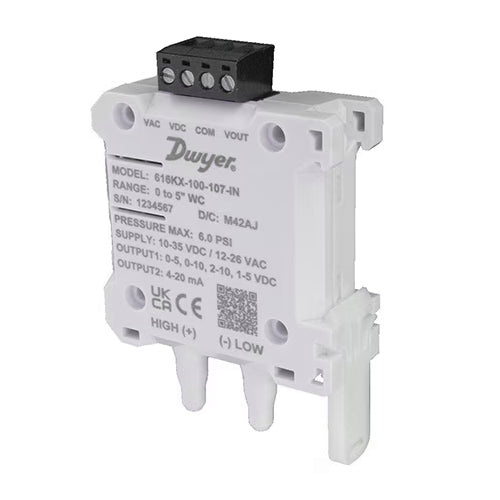

Dwyer 616KX-025-110-IN Differential Pressure Transmitter 10 to 35 Vdc (0 to 20 in w.c., 0.25% FSO)

Product Description

The Dwyer 616KX-025-110-IN is a differential pressure transmitter providing 0.25% FSO accuracy for a unidirectional 0 to 20 in w.c. range. It supports field-selectable current and voltage outputs (including 4 to 20 mA and multiple Vdc ranges), accepts 10 to 35 Vdc supply, and features a compact molded housing with stepped barb process connections and an edge-mounted push-button zero for HVAC and OEM pressure monitoring.

• Accuracy ±0.25% FSO for 0 to 20 in w.c.; unidirectional differential pressure measurement
• Field-selectable outputs: 4 to 20 mA, 0 to 5 Vdc, 1 to 5 Vdc, 0 to 10 Vdc, 2 to 10 Vdc; loop resistance 0 to 1250 Ω
• Stepped barb fitting (1/8, 3/16, 1/4 in) for tubing, screw terminal electrical connection, edge-mounted push-button zero

Product Highlights

Compact differential pressure transmitter with 0.25% FSO accuracy, multiple selectable output signals, 10 to 35 Vdc supply, and stepped barb process connections for HVAC and OEM applications.

Product Information

Standard Information

• Brand: DWYER
• Manufacturer Part Number: 616KX-025-110-IN

Technical Specifications

• Brand: Dwyer
• Manufacturer Part Number: 616KX-025-110-IN
• Accuracy: ±0.25% FSO
• Pressure Range: 0 to 20 in w.c. (unidirectional)
• Pressure Type: Differential
• Pressure Max: 20 inH2O
• Pressure Min: 0 inH2O
• Output Signal: 4 to 20 mA; 0 to 5 Vdc; 1 to 5 Vdc; 0 to 10 Vdc; 2 to 10 Vdc
• Output Detail: Field selectable
• Input Voltage: 10 to 35 Vdc
• Power Consumption: max 21 mA
• Loop Resistance: 0 to 1250 Ω
• Electrical Connection: Screw terminal
• Number of Wires: 2, 3, 4
• Process Connection: Stepped barb fitting; 1/8 in, 3/16 in, 1/4 in (fits ~3.2 mm and ~6.4 mm ID tubing)
• Mounting: Vertical with downward pressure ports
• Span Adjustment: Push button
• Zero Adjustment: Edge-mounted push-button zero
• Compensated Temperature Range: -20 °C to 70 °C
• Operating Temperature Range: -17.8 °C to 60 °C
• Thermal Effects: ±0.02% FS/°F (includes zero and span)
• Long Term Stability: ±1% FS/year
• Proof Pressure: Up to 6 psi
• Enclosure Rating: IP20, NEMA Type 1
• Materials Wetted: Consult factory
• Media Compatibility: Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-conductive gases, Non-corrosive dry gases
• Display Type: N/A
• Compliance: CE
• Weight (manufacturer): 51 g
