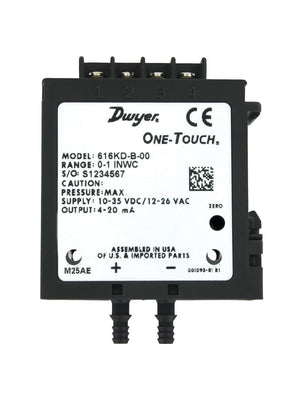

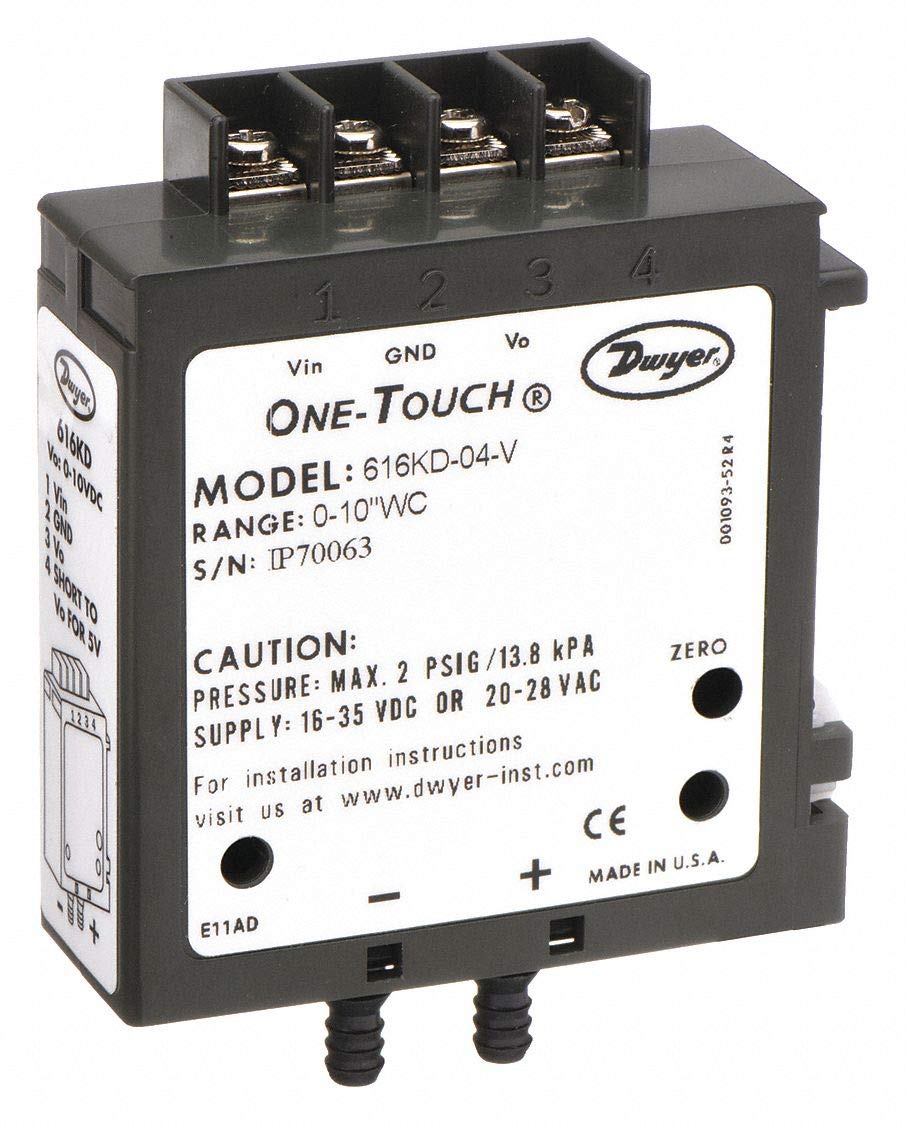

Dwyer 616KD-04 DP Transmitter DIN Mount 0-10 inches wc

Product Description

Experience precision with the Dwyer Differential Pressure Transmitter, model 616KD-04. This device is engineered to measure and transmit differences in pressure accurately. Ideal for HVAC systems, industrial settings, and scientific labs, it enhances various pressure monitoring operations.

• Rugged aluminum housing ensures durability
• 4 to 20mA output signal over a 0 to 10 inches wc range
• Simple installation with versatile screw terminals for electrical connections

Product Highlights

The 616KD-04 is designed for reliability, suitable for demanding applications. It offers clarity and control in pressure management, essential for maintaining system efficiency and accuracy.

Product Information

Standard Information

• Brand: Dwyer
• MPN: 616KD-04

Technical Specifications

• Output: 4 to 20mA DC
• Pressure range: 0 to 10 inches wc
• Accuracy: +/-2.00% Full Scale
• Operating Temperature: 0 to 140 Degrees F
• Process Connection Type: Hose Barb
• Power Requirements: 16 to 35V DC
