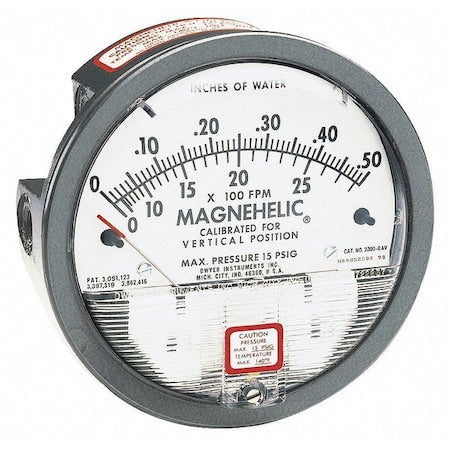

DWYER 2001AV Magnehelic Differential Pressure Gauge 0 to 1 in wc

Product Description

The DWYER 2001AV Magnehelic Differential Pressure Gauge is engineered for highly accurate readings in applications such as HVAC systems and filter monitoring. Manufactured with a durable die-cast aluminum case, this gauge measures pressures from 0 to 1 inch of water column.

• Accurate within +/-2% across its full scale.
• Features dual 1/8 inch FNPT connections for versatile installation.
• Operates effectively within a temperature range of 20 to 140 degrees Fahrenheit.

Product Highlights

This gauge is perfect for professionals monitoring air pressure in clean rooms, HVAC systems, and filtration units. The easy-to-read dial and robust construction make it a reliable choice for demanding environments.

Product Information

Standard Information

• Brand: DWYER
• Series: Magnehelic

Technical Specifications

• Material: Die Cast Aluminum
• Dial Size: 4.5 inches
• Connection Type: FNPT
• Operating Temperature Range: 20 to 140 degrees Fahrenheit
• Pressure Range: 0 to 1 inch wc
