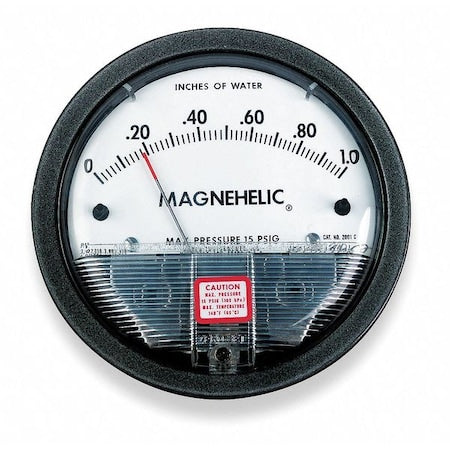

Dwyer 2001 Magnehelic Differential Pressure Gauge 0-1 in wc

Product Description

The Dwyer Magnehelic Differential Pressure Gauge, model 2001, is a crucial instrument for measuring pressure differences in various environments, including HVAC systems and industrial applications. This gauge is particularly noted for its accuracy in displaying readings from 0 to 1 in water column (wc) pressures. The device's robust construction with a die-cast aluminum case ensures long-term durability and reliability.

• Provides precise pressure measurements within a 0 to 1 inch wc range.
• Features a clear 4-inch dial for easy reading and setup.
• Suitable for applications in airflow monitoring, filtration systems, and more.

Product Highlights

The Dwyer 2001 model boasts compatibility with both clean and industrial environments, capable of operating between temperatures of 20 to 140 degrees Fahrenheit. Its compact design and easy installation make it a favorite among professionals in the HVAC and process monitoring sectors.

Product Information

Standard Information

• Brand: Dwyer Instruments
• MPN: 2001

Technical Specifications

• Differential Pressure Range: 0 to 1 in wc
• Accuracy: +/-2.00%
• Case Material: Die Cast Aluminum
• Connection Type: 1/8 in FNPT
• Panel-Mountable: Yes
• IP/NEMA Rating: IP67
• Operating Temperature Range: 20 Degrees to 140 Degrees F
