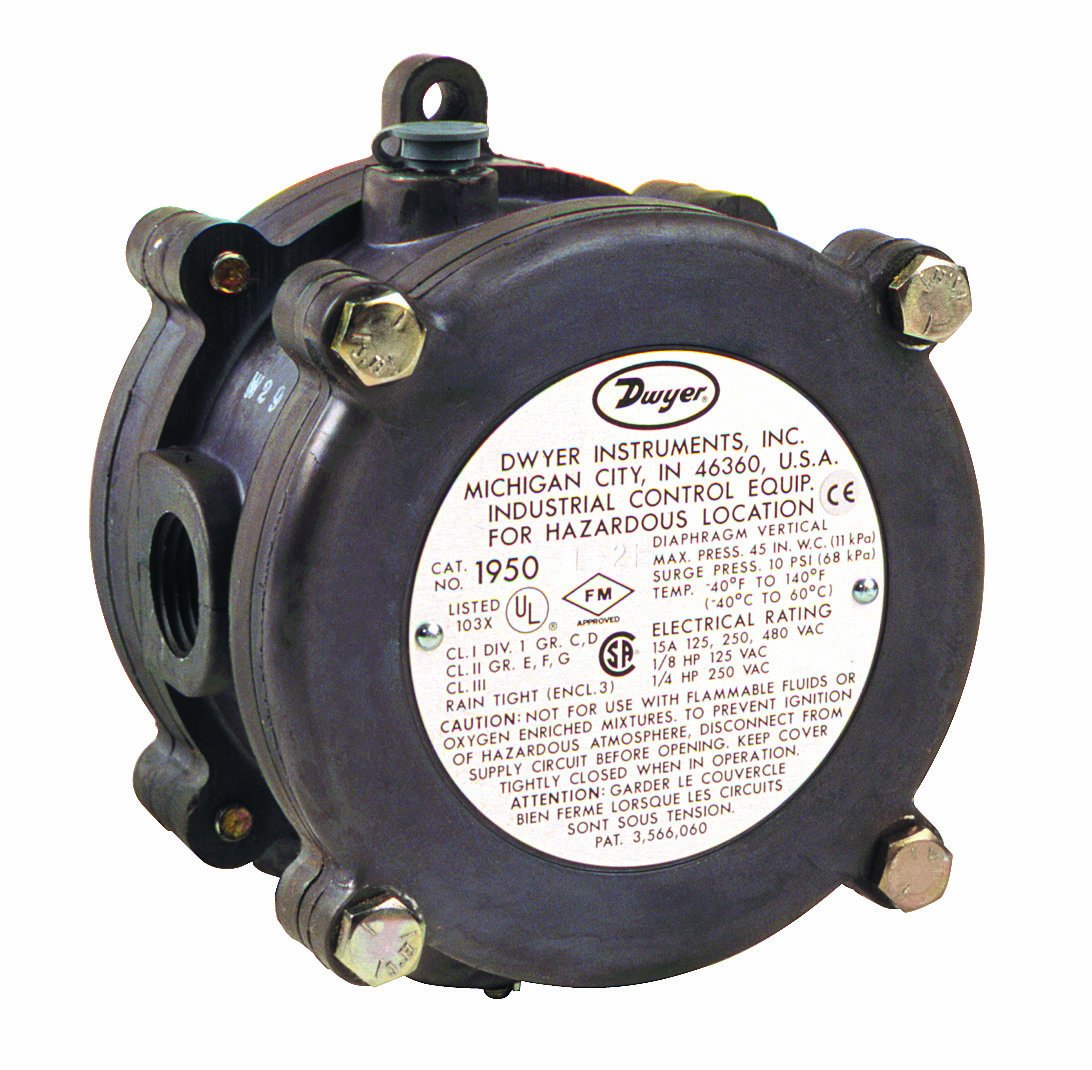

Dwyer 1950-00-2F Explosion-Proof Differential Pressure Switch 0.07-0.15WC Silver Contact Micro Switch

Product Description

The Dwyer 1950-00-2F Explosion-Proof Differential Pressure Switch is engineered for precise monitoring of differential pressures. Incorporating a robust silver contact micro switch, this switch is ideal for ensuring operational integrity in various industrial settings. With an adjustable range of 0.07 to 0.15 inches W.C., it provides flexibility and precision in pressure monitoring.

• Designed for both indoor and outdoor use, ensuring versatility across environments.
• Easy set-point adjustment without opening the enclosure enhances user convenience.
• Comes with an IP54 international protection rating, signifying a high level of protection against dust and water ingress.

Product Highlights

This pressure switch operates within a temperature range of -40 to 140 degrees Fahrenheit and offers multiple installation orientations for adaptability in different system configurations.

Product Information

Standard Information

• Brand: Dwyer
• MPN: 1950-00-2F

Technical Specifications

• Electrical Rating: 15 A at 125, 250, 480 VAC, 60 Hz.
• Process Connections: 1/8 inch female NPT.
• Switch Type: Single-pole double-throw (SPDT).
• Enclosure: Explosion-proof, meets NEMA 3, IP54 standards.
• Weight: 3.25 pounds
