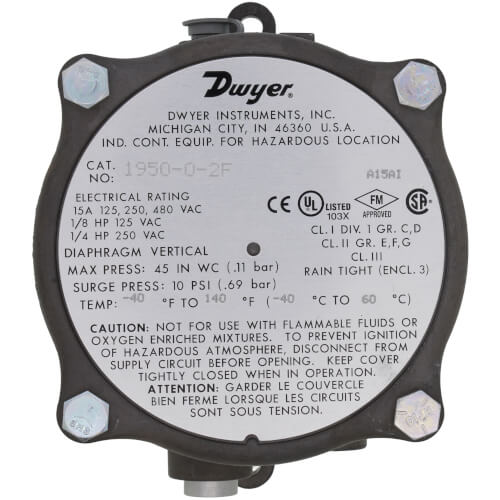

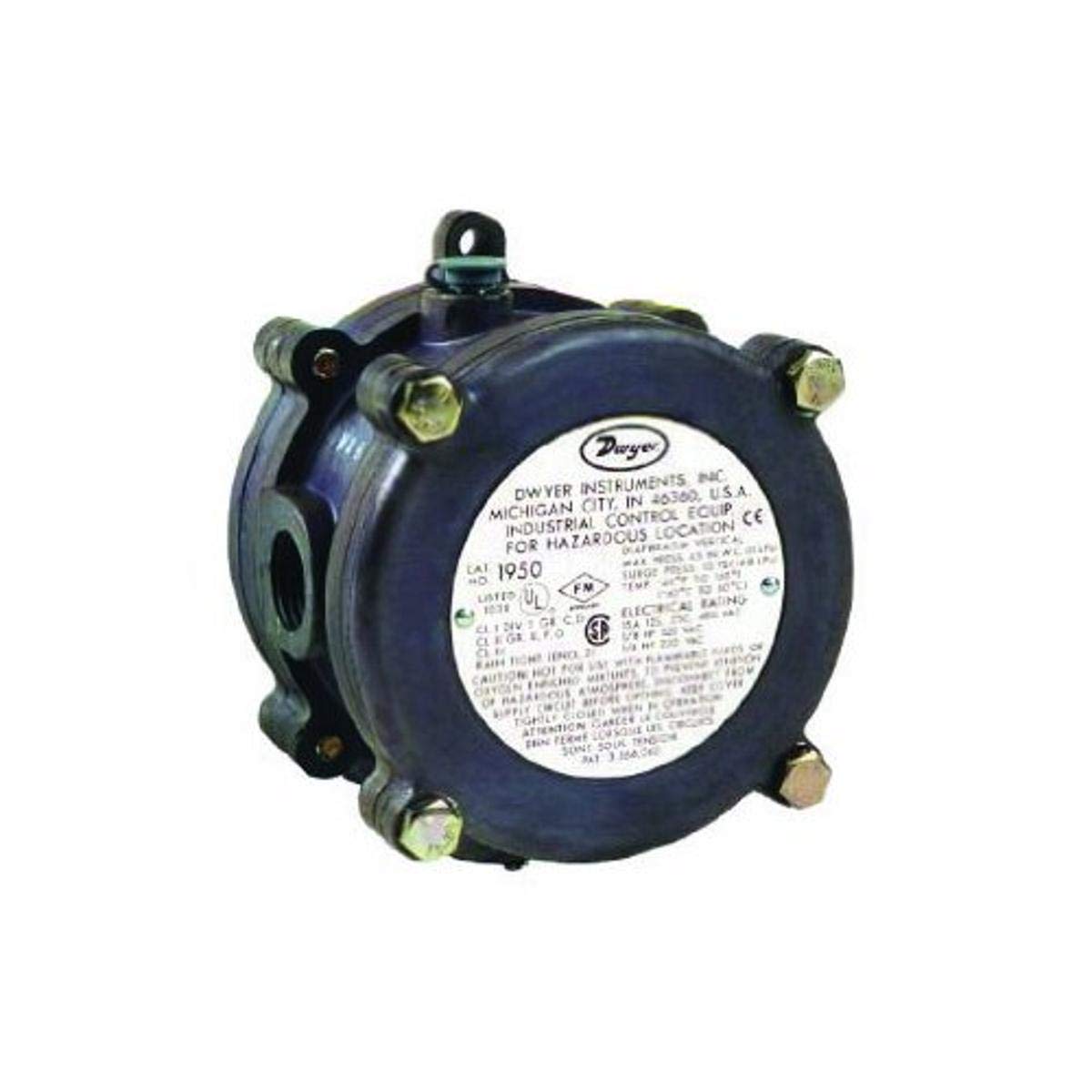

Dwyer 1950-0-2F Explosion-Proof Differential Pressure Switch 0.15-0.50WC Mica Silver Contact Micro Switch

Product Description

The Dwyer Series 1950 Explosion-Proof Differential Pressure Switch, model 1950-0-2F, offers robust performance with a pressure range of 0.15 to 0.50 inches WC. Ideal for industrial environments, this switch features a fluorosilicone diaphragm and a 10G mica silver contact micro switch, enhancing its reliability and durability.

• Explosion-proof, suitable for Class I, Div 1 groups.
• Weather-proof features including a sealed cover with a drain plug.
• SPDT switch type with three screw-type electrical connections.

Product Highlights

This pressure switch is specially designed for safety and operational efficiency in harsh environments, including HVAC systems and industrial applications where explosive gases may be present.

Product Information

Standard Information

• Brand: Dwyer
• MPN: 1950-0-2F

Technical Specifications

• Pressure Range: 0.15 to 0.50 inches WC
• Housing: Explosion-proof and weather-proof
• Electrical Rating: 15 A at 125, 250, 480 VAC
• Temperature Limits: -40 to 140 degrees Fahrenheit
• Certifications: CE, CSA, UL, FM
