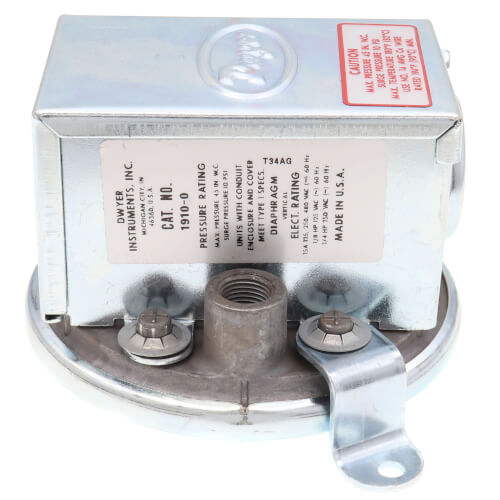

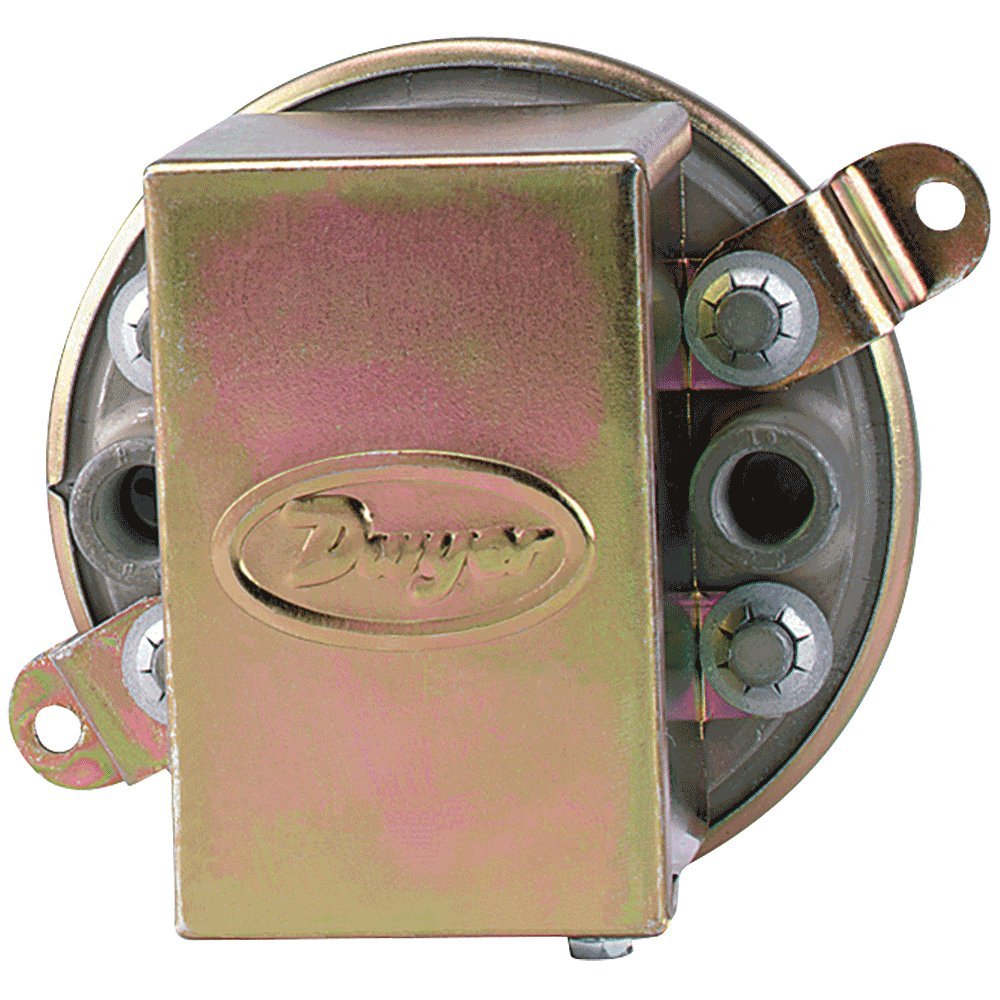

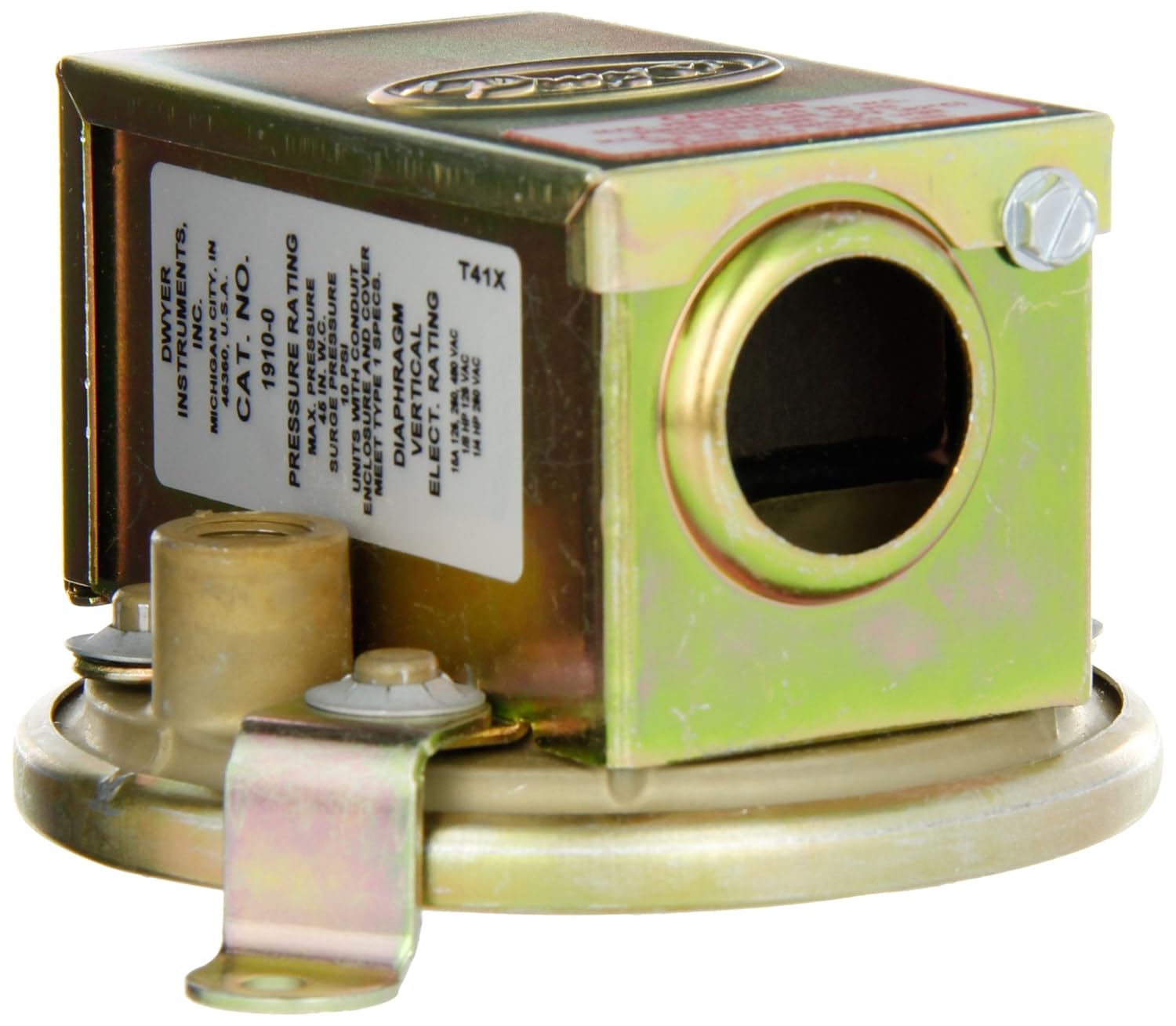

Dwyer 1910-0 Series 1900 Compact Low Differential Pressure Switch

Product Description

The Dwyer Series 1900 Compact Low Differential Pressure Switch, model 1910-0, is a high-quality solution for monitoring air and non-combustible gases. This switch is designed to perform reliably in a variety of industrial, HVAC, and appliance applications.

• Range of 0.15 to 0.55 inches of water column.
• Compatible with air and non-combustible gases.
• UL, CE, CSA, and FM approved.

Product Highlights

This pressure switch is favored for its compact size and precision. It effectively handles tasks normally performed by larger, more expensive units.

Product Information

Standard Information

• Brand: Dwyer Instruments
• MPN: 1910-0

Technical Specifications

• Service: Air and non-combustible, compatible gases
• Temperature Limits: -30 to 180°F (-34 to 82.2°C)
• Pressure Limits: 45 inches w.c. continuous, 10 psig surge
• Switch Type: SPDT
• Electrical Rating: 15 A @ 120-480 VAC, 60 Hz
• Process Connections: 1/8 inch female NPT
• Mounting Orientation: Diaphragm in vertical position
• Set Point Adjustment: Screw type inside conduit enclosure
