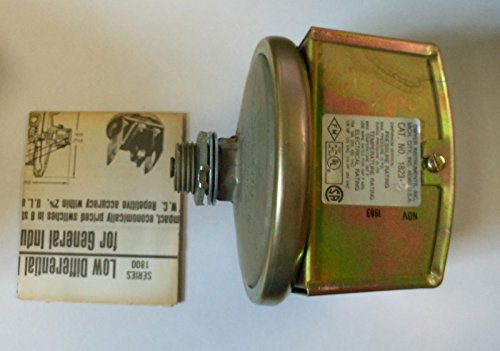

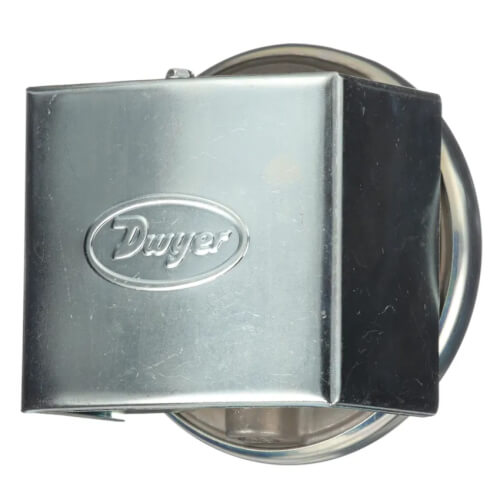

Dwyer 1823-5 Low Differential Pressure Switch SPDT 1.5-5.0 WC

Product Description

The Dwyer 1823-5 Low Differential Pressure Switch is a precise tool for measuring low differential pressures. It offers a range of 1.5 to 5.0 WC, making it ideal for HVAC systems, industrial processes, and medical equipment. This pressure switch provides reliable performance with a polycarbonate housing and Buna-N diaphragm.

• 1.5 to 5.0 WC range
• SPDT switch type
• Durable and compact design

Product Highlights

The Dwyer 1823-5 offers accurate pressure monitoring, compact design for tight spaces, and versatile applications in various settings.

Product Information

Standard Information

• Brand: Dwyer
• MPN: 1823-5

Technical Specifications

• Range: 1.5 to 5.0 WC
• Switch Type: SPDT
• Pressure Limits: 10 psig continuous, 25 psig surge
• Agency Approvals: CE, CSA, FM, UL
• Electrical Rating: 15 A @ 120-480 VAC, 60 Hz
• Material: Polycarbonate housing, Buna-N diaphragm
• Temperature Limits: -30 to 180°F
• Connections: 1/8 female NPT, 3-screw type
