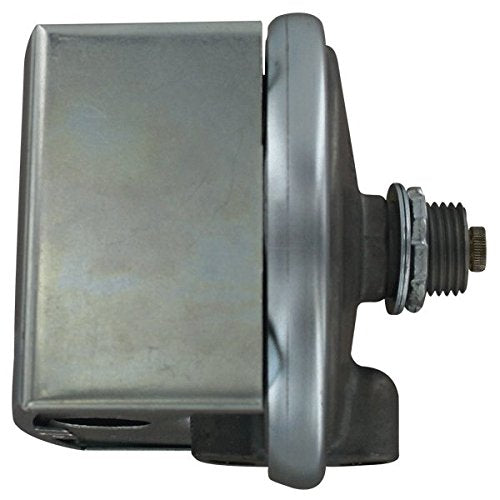

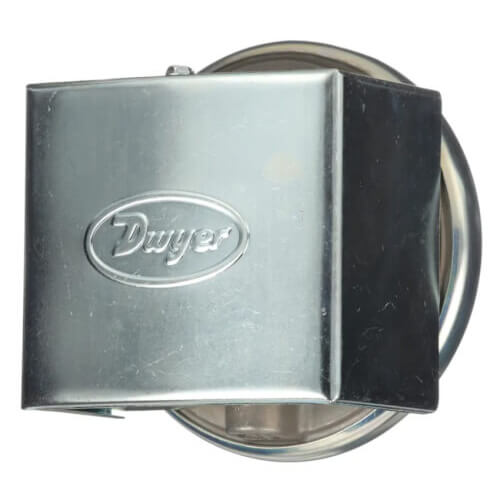

Dwyer 1823-00 Low Differential Pressure Switch SPDT 0.07-0.22 WC

Product Description

The Dwyer 1823-00 Low Differential Pressure Switch is a reliable and precise tool designed for industrial environments. It offers a range of 0.07 to 0.22 inches water column and is ideal for a broad array of applications.

• MANUFACTURER DIRECT
• Range: 0.07 to 0.22 w.c.
• Pressure limits: 10 psig continuous, 25 psig surge

Product Highlights

The Dwyer 1823-00 is equipped with SPDT switch type for flexible usage. It is designed for both wall and panel mounting, which enhances its versatility in various industrial settings.

Product Information

Standard Information

• Service: Air and non-combustible, compatible gases
• Temperature Limits: -30 to 180 degrees Fahrenheit
• Approval: CE, CSA, FM, UL

Technical Specifications

• Pressure Range: 0.07-0.22 inches water column
• Repeatability: 2 percent
• Electrical Rating: 15 A at 120-480 VAC, 60 Hz

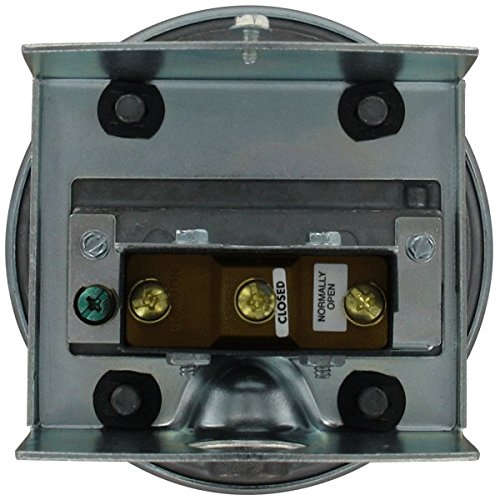

• Electrical Connections: 3 screw type, common, normally open, normally closed

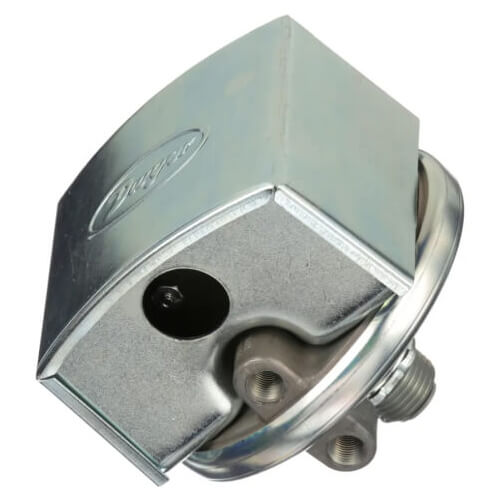

• Process Connections: 1/8 female NPT
• Mounting Orientation: Diaphragm in vertical position
• Set Point Adjustment: Screw type inside mounting spud
• Weight: 1 lb, 5 oz
