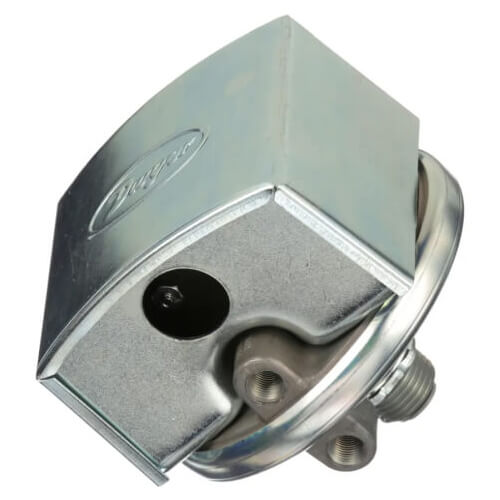

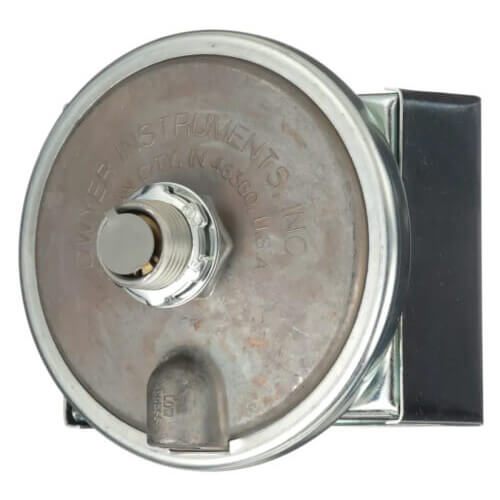

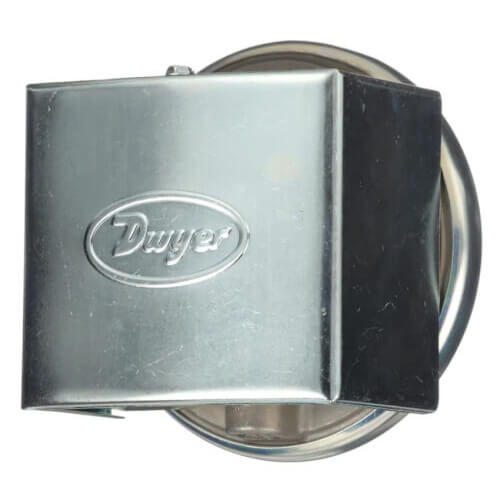

Dwyer 1823-0 Low Differential Pressure Switch 0.15-0.5 Inch WC

Product Description

The Dwyer 1823-0 Low Differential Pressure Switch is a compact device designed for reliable performance in industrial environments. Featuring a pressure range of 0.15 to 0.5 inches water column, this switch is ideal for a wide range of applications.

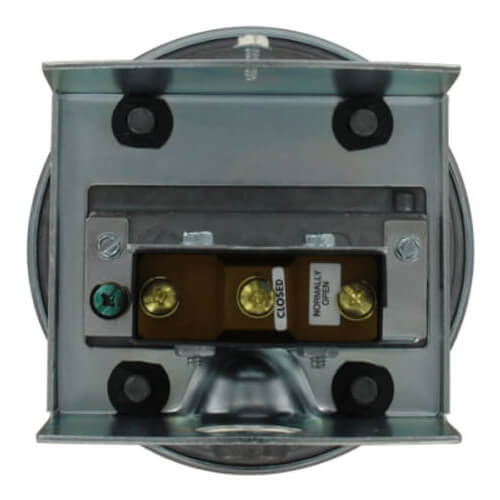

• SPDT switch type enabling versatile application
• Pressure limits up to 25 psig to accommodate various scenarios
• UL, CSA, CE, and FM approved for quality assurance

Product Highlights

Optimized for both panel and wall mounting, the Dwyer 1823-0 offers easy set point adjustments and is designed for non-combustible, compatible gases. This low differential pressure switch is essential for applications requiring precise pressure monitoring and control.

Product Information

Standard Information

• Service: Air and non-combustible, compatible gases
• Temperature Limits: -30 to 180 degrees Fahrenheit

Technical Specifications

• Electrical Rating: 15 A @ 120-480 VAC, Resistive 1/8 HP @ 125 VAC, 1/4 HP @ 250 VAC
• Process Connections: 1/8 inch female NPT
• Mounting Orientation: Diaphragm in vertical position, adjustable via internal screw
• Weight: 1 pound 5 ounces
