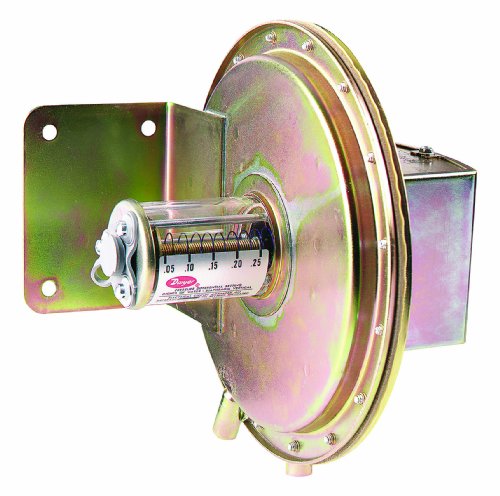

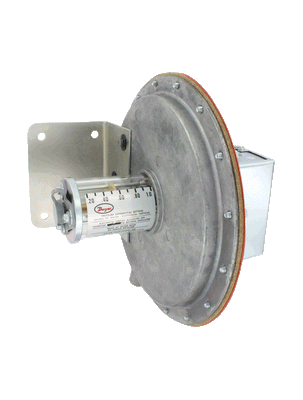

Dwyer 1638-10 Large Diaphragm Pressure Switch 3.0-12 w.c.

Product Description

The Dwyer 1638-10 is a large diaphragm pressure switch designed for reliable pressure control in industrial applications. Featuring an adjustable range between 3.0 and 12 water column, this switch offers dependable performance.

• Manufacturer direct
• Adjustable range: 3.0 to 12 w.c.
• Switch type: SPDT

Product Highlights

This Dwyer pressure switch ensures precise pressure measurement and control. The large diaphragm design promotes accuracy, while the visible set point indicator aids in easy adjustments. Suitable for HVAC systems, fluid handling, and other industrial processes, this switch is versatile and reliable.

Product Information

Standard Information

• Manufacturer: Dwyer Instruments
• Brand: Dwyer
• Model: 1638-10
• Category: Industrial Switches
• Weight: 5.3 pounds

Technical Specifications

• Pressure Range: 3.0 to 12 w.c.
• Switch Type: SPDT
• Pressure Limits: 10 psig (68.95 kPa) continuous, 25 psig (172.4 kPa) surge
• Agency Approvals: CSA, FM, UL
• Weight: 3.74 pounds
• Length: 8.75 inches
• Width: 8.65 inches
• Height: 7.45 inches
