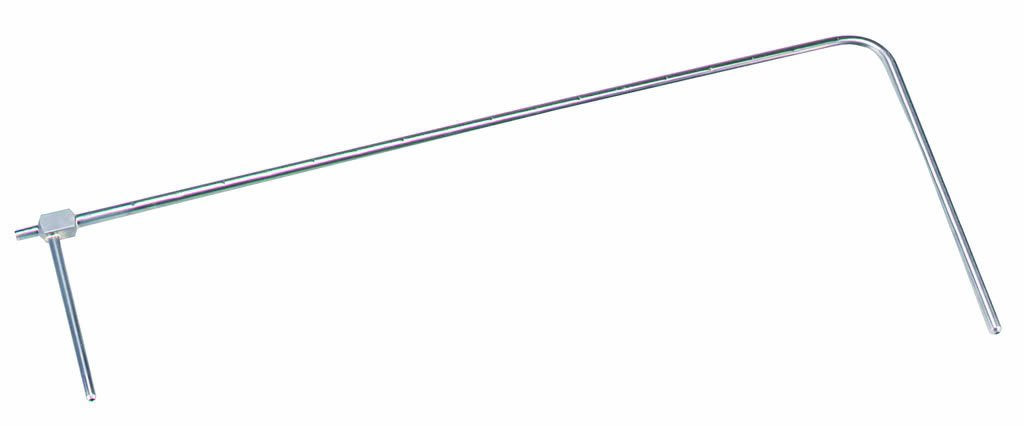

Dwyer 160-48 Stainless Steel Pitot Tube 48-5/8 inches Insertion Length, 5/16 inches Diameter

Product Description

The Dwyer 160-48 Stainless Steel Pitot Tube is constructed from corrosion resistant stainless steel with permanently etched insertion depth graduations. The static pressure port is parallel to the sensing tube to allow quick, easy alignment of the tube with air flow. The 16048 has a probe insertion length of 48-5/8".

• No calibration needed
• Precisely located, burr-free static pressure holes
• Hemispherical tip design, best for accuracy if imperfectly aligned and nearly impossible to damage

Product Highlights

Constructed from corrosion resistant stainless steel, the Dwyer Pitot Tubes are designed for use with precision manometers and air velocity gauges.

Product Information

Standard Information

• Brand: DWYER
• Manufacturer Part Number: 160-48
• Country of Origin: United States

Technical Specifications

• Insertion Length: 48-5/8"
• Diameter: 5/16"
• Material: 304 Stainless Steel
• Brand: Dwyer
• Manufacturer: Dwyer Instruments
• Model / MPN: 160-48
• Number of Items: 1.0
• Part ID / MPN: 160-48
• Item: Pitot Tube
• Series: 160
• Includes: Air Velocity Calculator and Direct Reading Velocity Charts
• Standards: CE, ASHRAE, ROHS
• Pitot Type: Standard
• Tube Diameter: 5/16 in
• Tube Material: Stainless Steel
• Accessory Type: Pitot Tube
• Duct Dia. (In.): Min 10
• Tube Dia. (In.): 5/16 in
• Airflow Sensor Type: Pitot Tube
• Connection Size (In.): 1/4
• Minimum Duct Diameter: 10 in
• Process Connection Size: 1/4 in
• Process Connection Type: NPT
• Maximum Media Temperature: 1,500 Degrees F
• Process Connection Gender: Male
• Country of Origin (subject to change): United States
• Probe length (in): 48
• Probe Diameter (in): 5/16
• Description: Stainless Steel Pitot Tube 48" Insertion Length 5/16" Diameter
