Dwyer 160-18 Stainless Steel Pitot Tube 18 inch

Product Description

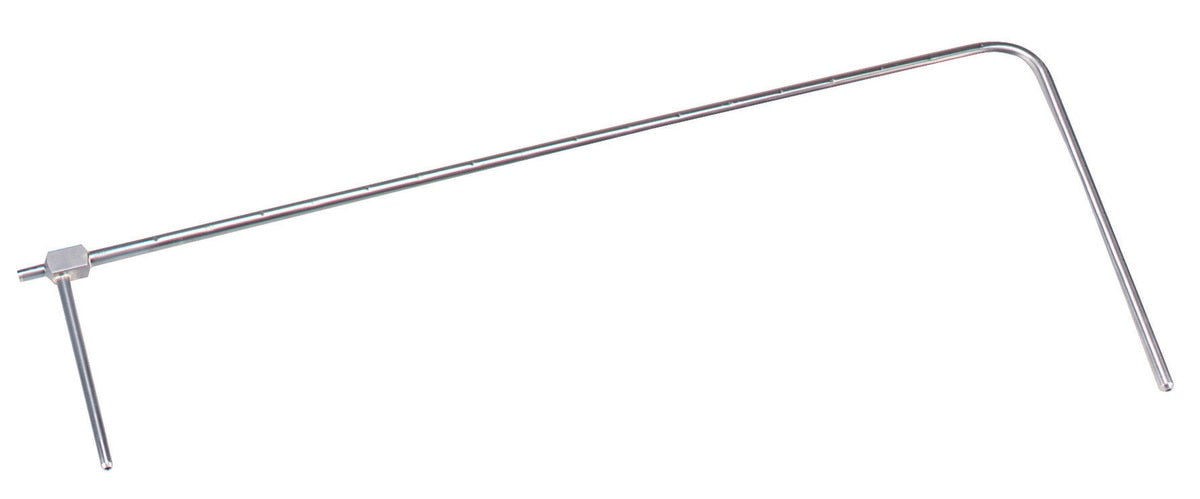

The Dwyer 160-18 Stainless Steel Pitot Tube is constructed from corrosion resistant stainless steel with permanently etched insertion depth graduations. The static pressure port is parallel to the sensing tube to allow quick, easy alignment of the tube with air flow. The 160-18 has a probe insertion length of 18-5/8".

• Insertion Length: 18-5/8"
• No calibration needed
• Precisely located, burr-free static pressure holes

Product Highlights

Constructed from corrosion resistant stainless steel, the Dwyer Pitot Tube meets AMCA and ASHRAE specifications for maximum accuracy. It is ideal for use with precision manometers and air velocity gauges.

Product Information

Standard Information

• Brand: DWYER
• Manufacturer Part Number: 160-18
• Country of Origin: United States

Technical Specifications

• Insertion Length: 18.625 in
• Tube Diameter: 5/16 in
• Tube Material: Stainless Steel
• Process Connection Gender: Male
• Process Connection Size: 1/4 in
• Process Connection Type: NPT
• Maximum Media Temperature: 1,500 Degrees F
• Series: 160
• Includes: Air Velocity Calculator and Direct Reading Velocity Charts
• Standards: CE, ASHRAE, ROHS
• Minimum Duct Diameter: 10 in
• Airflow Sensor Type: Pitot Tube
