Duro Dyne Dur FTC34 Econo-point Duct Liner Pins

Product Description

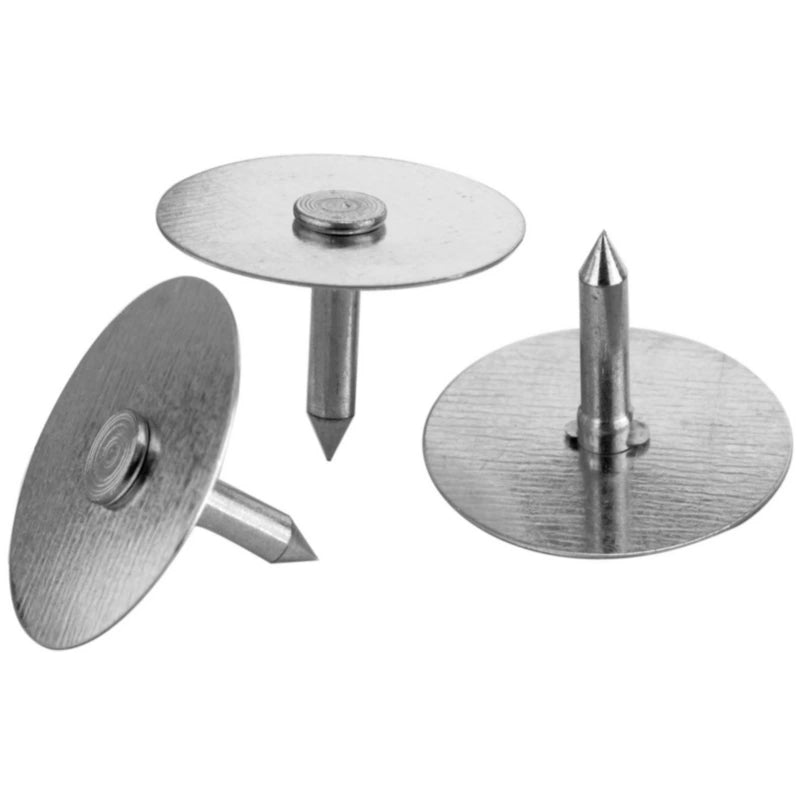

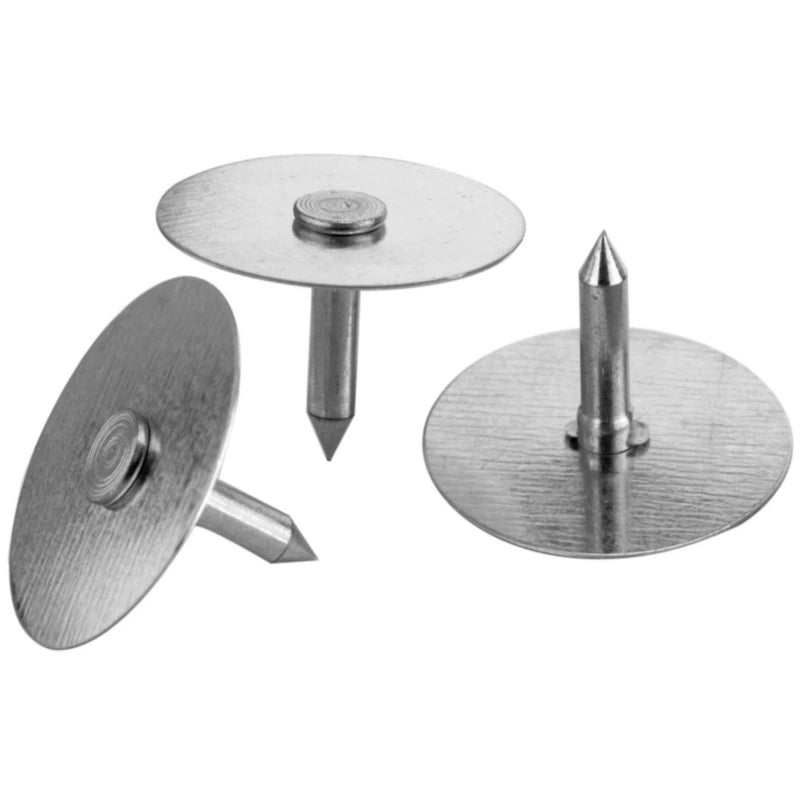

The DURO DYNE DUR FTC34 is a box of 3/4-inch Econo-Point pins designed for securing 1-inch duct liner insulation inside sheet metal ductwork. These 30-gauge galvanized steel pins are driven or welded through the duct liner to hold the insulation firmly against the duct wall, preventing separation and maintaining airflow efficiency. Manufactured in the USA, these pins are a standard fastening solution on residential and light commercial HVAC duct lining jobs. The silver-finish steel construction provides durability in the typical interior duct environment.

These pins are suited for new construction and retrofit duct liner installations where 1-inch flexible or rigid fiberglass duct liner is being applied to the interior of sheet metal ductwork. HVAC sheet metal mechanics and duct installers use Econo-Point pins as a quick, cost-effective method to mechanically fasten insulation before applying adhesive or as a standalone fastener depending on the job spec. The box ships at 36 pounds, making it appropriate for job-site stocking on larger duct fabrication and installation projects.

Key Features

• 3/4-inch pin length matched for use with 1-inch duct liner
• 30-gauge galvanized steel construction for durability in interior duct applications
• Silver finish for easy visual inspection after installation
• Domestic manufacture — country of origin USA
• Sold by the box (UOM: EA) — suitable for bulk job-site stocking

Compatibility

Designed as an OEM-style mechanical fastener for securing 1-inch duct liner insulation to sheet metal ductwork in residential and light commercial HVAC systems.

Installation Notes

Installation is performed by licensed sheet metal mechanics or HVAC duct installers following applicable SMACNA guidelines. Pins are driven or welded through the duct liner into the sheet metal duct wall — verify pin spacing requirements per the project specification or SMACNA Duct Construction Standards before installation. De-energize any associated air handling equipment before working inside or on ductwork. Note that this product is subject to California Proposition 65 requirements.

Technical Specifications

• Pin Length: 0.75 inches
• Compatible Liner Thickness: 1 inch
• Gauge: 30 GA
• Material: Galvanized Steel
• Color: Silver
• Package Length: 13 inches
• Package Width: 9 inches
• Package Height: 11 inches
• Package Weight: 36 pounds
• Country of Origin: USA
• UPC: 797582104737
• Prop 65: Yes

Standard Information

• Brand: DURO DYNE
• Manufacturer Part Number: DUR FTC34
