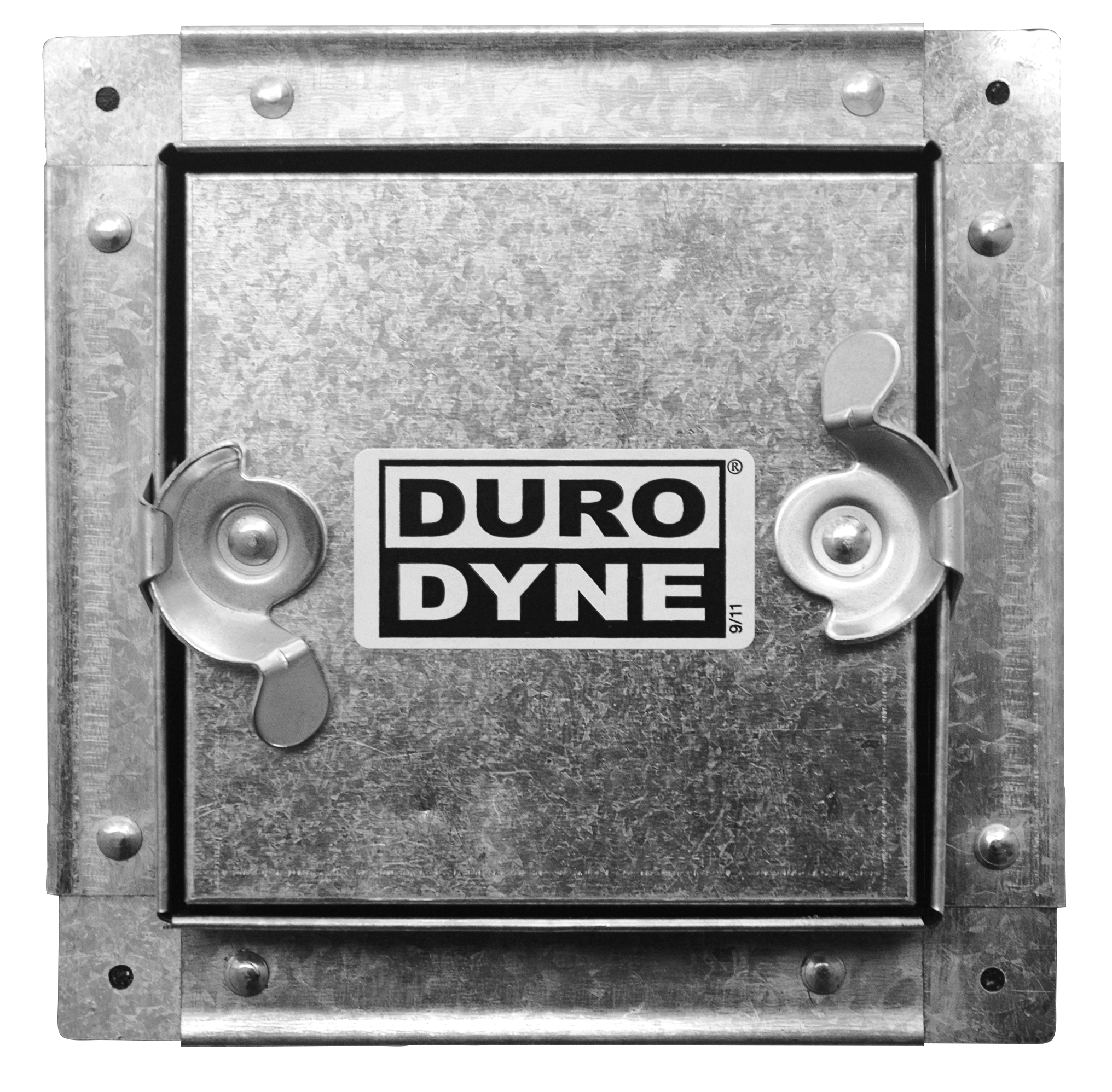

Duro Dyne 36067 Duct Board Access Door 10x10

Product Description

The DURO DYNE 36067 is an insulated square access door designed for installation in 1-inch and 1.5-inch duct board systems. It provides a serviceable opening in fibrous glass duct board assemblies, allowing HVAC technicians to inspect, clean, or service internal duct components without cutting new openings. The door measures 9.875 x 9.875 inches and fits a nominal 10 x 10 inch opening. Sold in boxes of 10, it suits contractors stocking up for commercial or residential sheet metal and duct board work. The insulated construction maintains the thermal performance of the surrounding duct board panel.

This access door is intended for use in duct board HVAC distribution systems, both residential and light commercial. It is applied wherever an inspection or service point is required along a fibrous glass duct board run. The nominal 10 x 10 inch size fits even-sized cutouts per standard duct board fabrication practice. Multiple sizes are available in the DURO DYNE DBD series, ranging from 8 through 18 inches in even increments, making it straightforward to spec the correct door for any opening on the same job.

Key Features

• Insulated construction maintains duct board system thermal integrity at the access point
• Nominal 10 x 10 inch door with actual panel dimensions of 9.875 x 9.875 inches
• Compatible with both 1-inch and 1.5-inch duct board thickness
• Sold in a box of 10 units, suitable for multi-job stocking
• Square profile fits standard even-size cutouts per duct board fabrication practice
• Part of the DBD series, available in even sizes from 8 through 18 inches

Compatibility

Designed for use with 1-inch and 1.5-inch fibrous glass duct board systems. Part of the DURO DYNE DBD series; the companion 8 x 8 inch door is available under part number 36066.

Installation Notes

Installation is performed by licensed HVAC technicians or qualified sheet metal workers familiar with duct board fabrication. The duct system should be depressurized and the air handler shut down before cutting any access opening. Cut the duct board opening to the nominal size and follow the duct board manufacturer's guidelines for sealing edges and securing the door to maintain air tightness. Adhere to local mechanical codes and SMACNA duct construction standards for access door placement and sealing requirements.

Technical Specifications

• Nominal Size: 10 x 10 inches
• Actual Panel Dimensions: 9.875 x 9.875 inches
• Compatible Duct Board Thickness: 1 inch and 1.5 inches
• Quantity per Box: 10
• Series: DBD (DBD10x10)

Standard Information

• Brand: DURO DYNE
• Manufacturer Part Number: 36067
