Duro Dyne 15155 Sap 8X1/2 5M Screws

Product Description

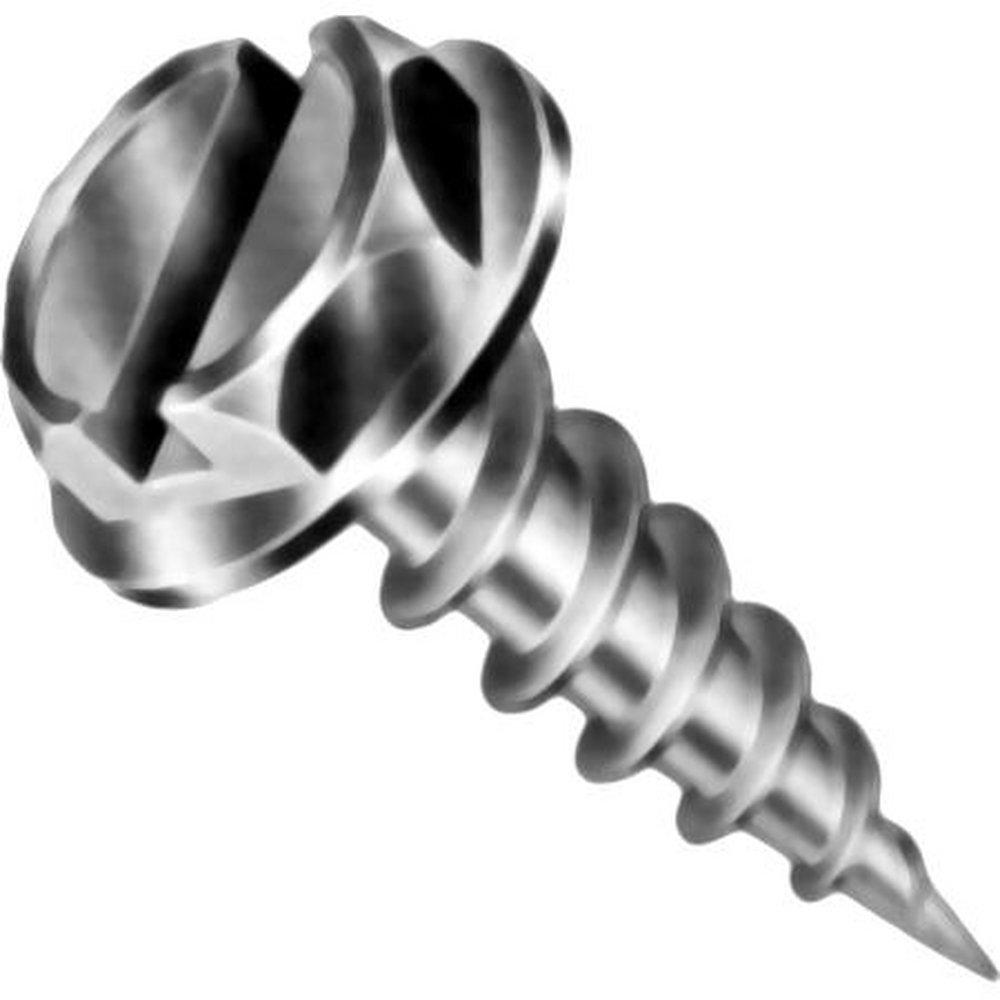

The DURO DYNE 15155 self-piercing screw features a drive style of hex and slotted, a nominal diameter of #8, and 15 TPI. This steel screw is 1/2 inch in length with a zinc plated finish and is made through cold heading process. It conforms to JIS 1125 standards.

• Thread designed to pull the screw through steel with no strip-out
• Precision formed point for consistent performance
• Designed for light to medium gauge materials

Product Highlights

This self-piercing screw is designed for light to medium gauge materials and provides time saving performance. It features a super sharp, specially hardened, non-walking point.

Product Information

Standard Information

• Brand: DURO DYNE
• Manufacturer Part Number: 15155

Technical Specifications

• Drive Style: Hex, Slotted
• Nominal Diameter: #8
• TPI: 15
• Length: 1/2 Inch
• Material: Steel
• Process: Cold Heading
• Finish: Zinc Plated
• Applicable Standard: JIS 1125
• Drive Size: 1/4 Inch
• Maximum Piercing Capability: 0.044 Inch
• Minimum Torsional Strength: 32.5 Inch-Pound
• Coating: Zinc Plated
• Product Type: Screw
• Screw Head: Hex
• Size: #8 x 1/2 in
