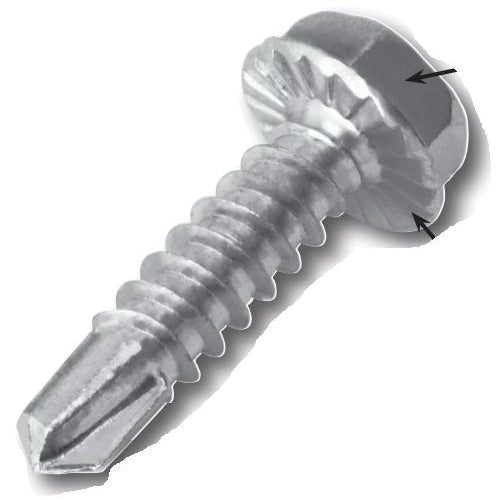

Duro Dyne 14345 PRO POINT Self Drilling Screw #10 3/4 in OAL Hex Unslotted Head

Product Description

The Duro Dyne 14345 PRO POINT Self Drilling Screw is suitable for fastening heavy gauge metals. It creates accurately sized holes, providing maximum holding power. These screws do not require any hole preparation and have undergone quality testing with one-eighth inch cold rolled steel. This product is ideal for connecting a four-bolt flange to ductwork.

• Precision formed drill point
• Designed for heavy gauge metals
• Eliminates hole preparation

Product Highlights

The Duro Dyne self drilling screw offers efficient fastening with reduced prep work and reliable strength.

Product Information

Standard Information

• Brand: Duro Dyne
• Diameter - Thread Size: #10

Technical Specifications

• Drive Size: 5/16 inch
• Finish: Zinc Plated
• Hardness: C52-58 Case Hardened to Rockwell
• Head Type: Hex Unslotted
• Material: Steel
• Measurement System: Imperial
• Overall Length: 3/4 inch
• Point Size: #3
• TPI: 16
• Minimum Torsional Strength: 61 lb inch
