Duro Dyne 14191 ppt 10x1 screws (1000pk)

Product Description

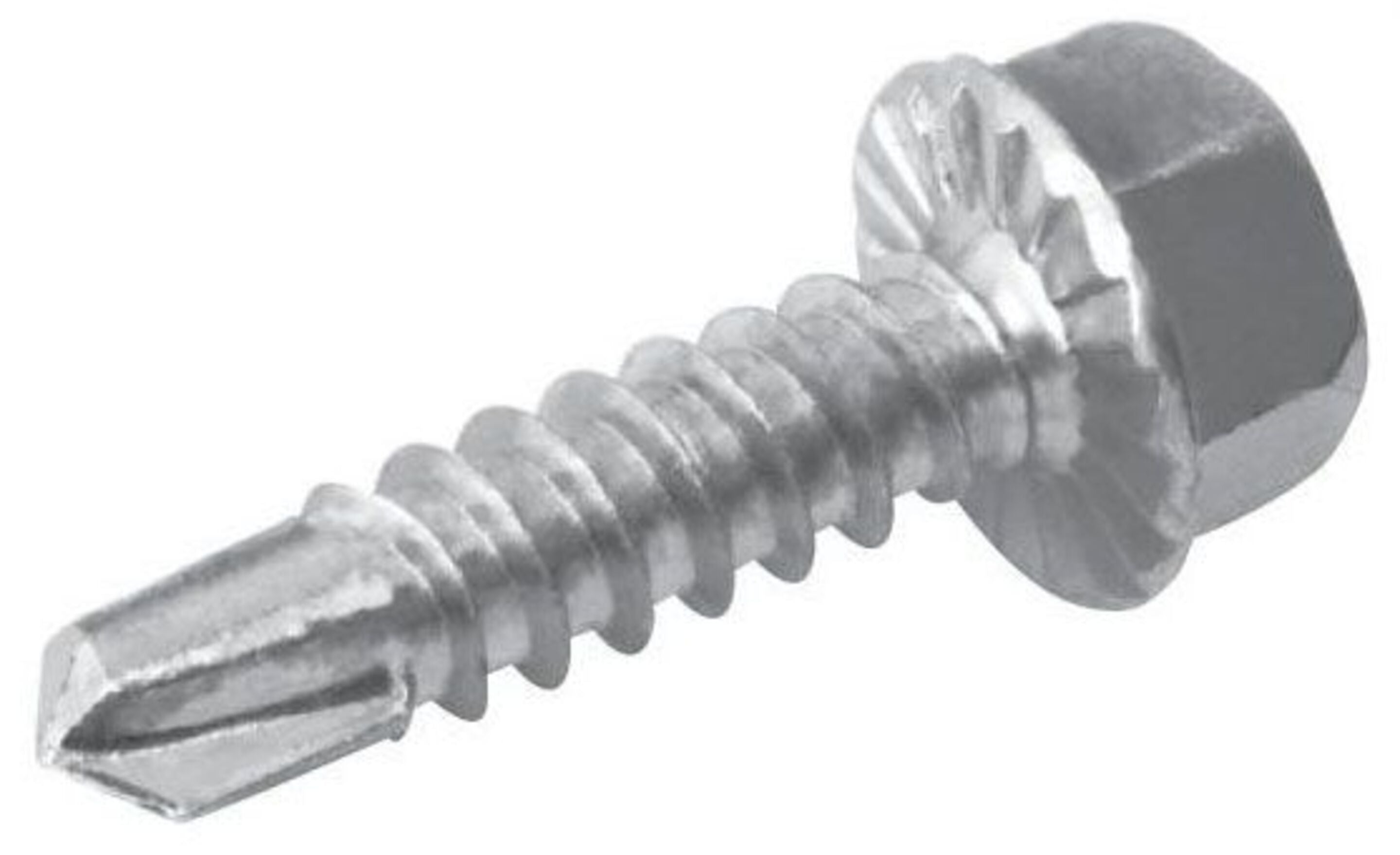

The DURO DYNE 14191 PPT 10X1 screws are self-drilling screws with a hex, unslotted drive style. These #10 nominal diameter screws feature a #3 drill point size and 16 TPI. They are 1 inch in length and made from 410 stainless steel with a zinc plated finish, manufactured using a cold rolled process.

• Corrosion resistant
• Serrated edge prevents screw back out
• Precision formed drill point for faster penetration

Product Highlights

Ideal for fastening 4-bolt flange to ductwork. Quality tested through 1/8 inch cold rolled steel.

Product Information

Standard Information

• Brand: DURO DYNE
• Manufacturer Part Number: 14191

Technical Specifications

• Applicable Standard: IFI-113
• Brand Name: PRO POINT
• Category: Fasteners & Hardware
• Description: Self-Drilling Screw; Drive Style Hex, Unslotted; Nominal Diameter #10; Drill Point Size #3; TPI 16; Length 1 Inch; Material 410 Stainless Steel; Process Cold Rolled; Finish Zinc Plated; Applicable Standard IFI-113; Drive Size 5/16 Inch; Maximum Drill Capability 0.175 Inch; Minimum Torsional Strength 61 Inch-Pound
• Drill Point Size: #3
• Drive Style: Hex, Unslotted
• Finish: Zinc Plated
• Length: 1 Inch
• Manufacturer Name: Duro Dyne
• Manufacturer Part Number: 14191
• Material: 410 Stainless Steel
• Nominal Diameter: #10
• Process: Cold Rolled
• TPI: 16
• Drive Size: 5/16 Inch
• Maximum Drill Capability: 0.175 Inch
• Minimum Torsional Strength: 61 Inch-Pound
• UNSPSC Code: 31161528
