Duro Dyne 14175 sat 8x1-1/2 screws 1000pk

Product Description

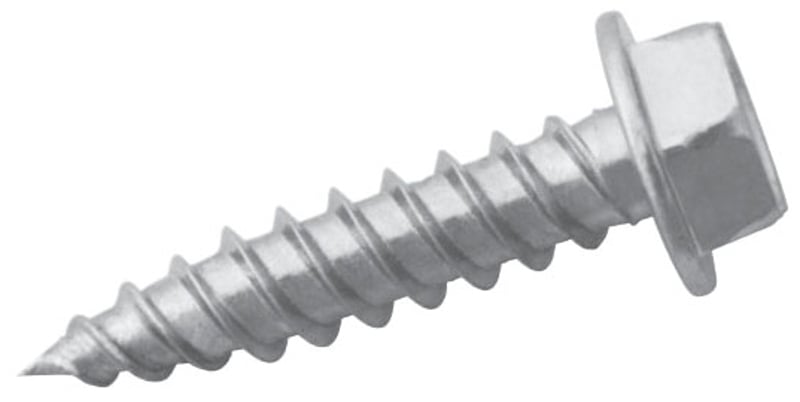

The DURO DYNE 14175 SAT 8X1-1/2 self-piercing screw features a hex and slotted drive style, a nominal diameter of #8, and 15 TPI. It measures 1-1/2 inches in length and is constructed from steel with a zinc-plated finish. This screw conforms to JIS 1125 standards and has a 1/4 inch drive size.

• Thread designed to pull the screw through steel with no strip-out
• Precision formed point for consistent performance
• Designed for light to medium gauge materials

Product Highlights

The DURO DYNE 14175 screw offers time-saving performance with its saber sharp piercing point and fine cut machine thread. It is corrosion resistant and case hardened to Rockwell C55 minimum.

Product Information

Standard Information

• Brand: DURO DYNE
• Manufacturer Part Number: 14175

Technical Specifications

• Applicable Standard: JIS 1125
• Brand Name: SUPER SABER
• Category: Fasteners & Hardware
• Drive Style: Hex, Slotted
• Finish: Zinc Plated
• Length: 1-1/2 Inch
• Manufacturer Name: Duro Dyne
• Manufacturer Part Number: 14175
• Material: Steel
• Nominal Diameter: #8
• TPI: 15
• UNSPSC Code: 31161506
• Drive Size: 1/4 Inch
• Maximum Piercing Capability: 0.044 Inch
• Minimum Torsional Strength: 32.5 Inch-Pound
• Head Type: Hex
• Point Type: Self-Piercing
• Series: Super Saber Series
• Thread Size: #8
• Diameter - Thread Size: #8-15
• Hardness: C55
• Measurement System: Imperial
• Type: Threaded
