Duro Dyne 14168 Sac 8X3/4 Screws

Product Description

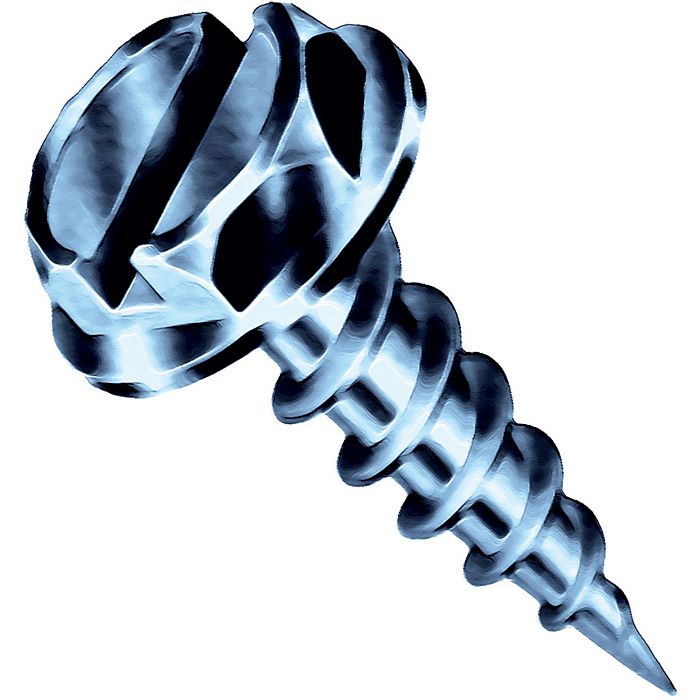

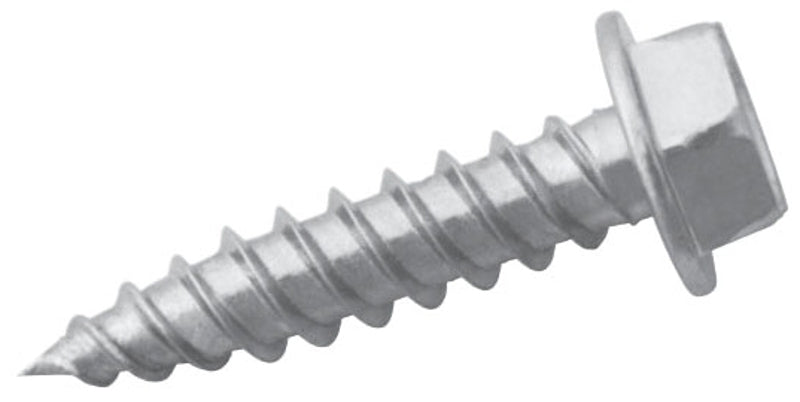

The DURO DYNE 14168 Sac 8X3/4 screws are self-piercing screws designed for light to medium gauge materials. These steel screws feature a hex and slotted drive style, with a zinc-plated finish for corrosion resistance. They conform to JIS 1125 standards and are suitable for securing sheet metal HVAC components and ductwork joints.

• Thread designed to pull the screw through steel with no strip-out
• Precision formed point for consistent performance
• Designed for light to medium gauge materials

Product Highlights

These self-piercing screws offer time-saving performance with a saber sharp piercing point and fine cut machine thread.

Product Information

Standard Information

• Brand: DURO DYNE
• Manufacturer Part Number: 14168

Technical Specifications

• Manufacturer Part Number: 14168
• Brand Name: SUPER SABER
• Drive Style: Hex, Slotted
• Nominal Diameter: #8
• TPI: 15
• Length: 3/4 Inch
• Material: Steel
• Process: Cold Heading
• Finish: Zinc Plated
• Applicable Standard: JIS 1125
• Drive Size: 1/4 Inch
• Maximum Piercing Capability: 0.044 Inch
• Minimum Torsional Strength: 32.5 Inch-Pound
• Thread Size: #8
• Head Type: Hex
• Point Type: Self-Piercing
