Duro Dyne 031114 Dyna-Tite Cable Lock CL12-WC3 100-Pack

Product Description

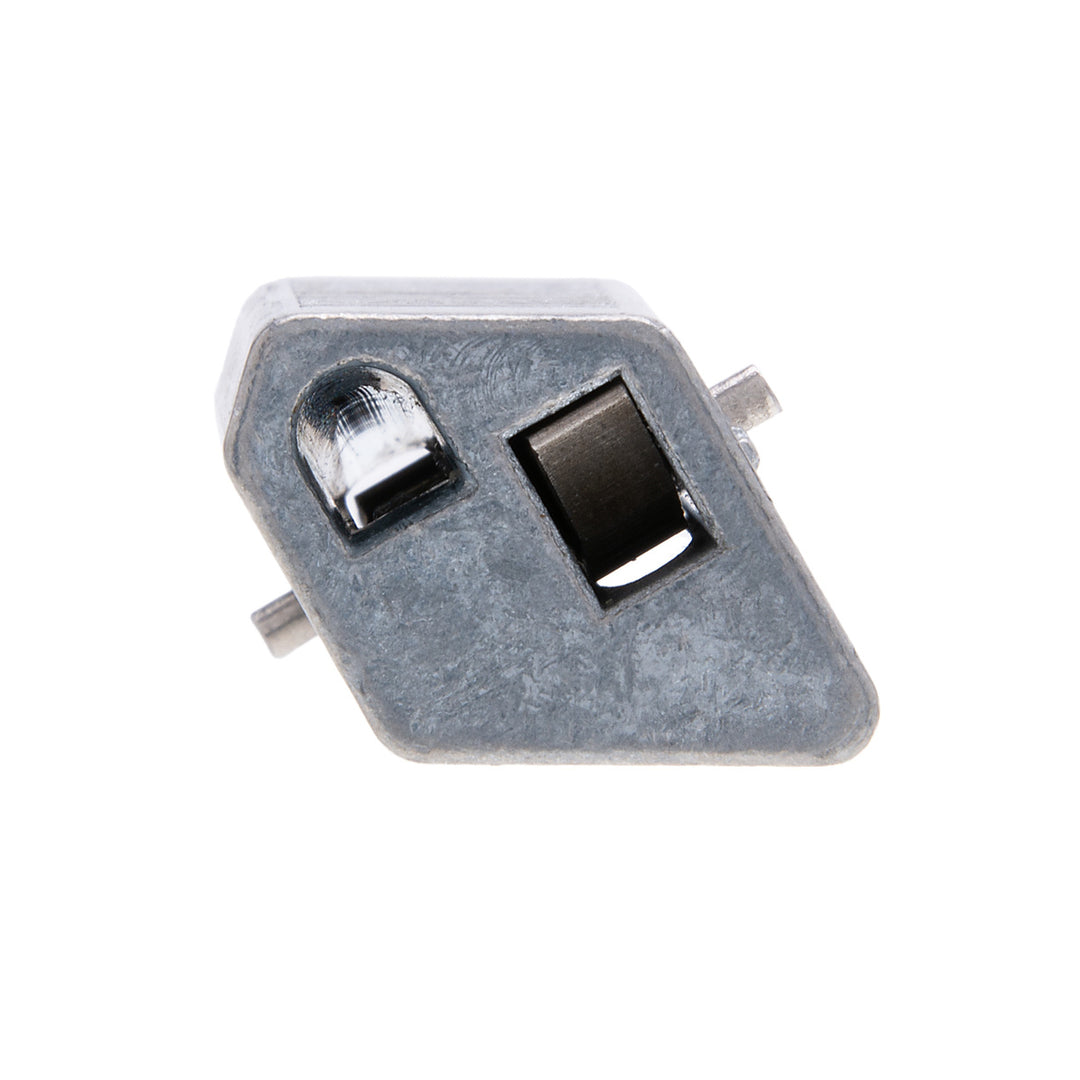

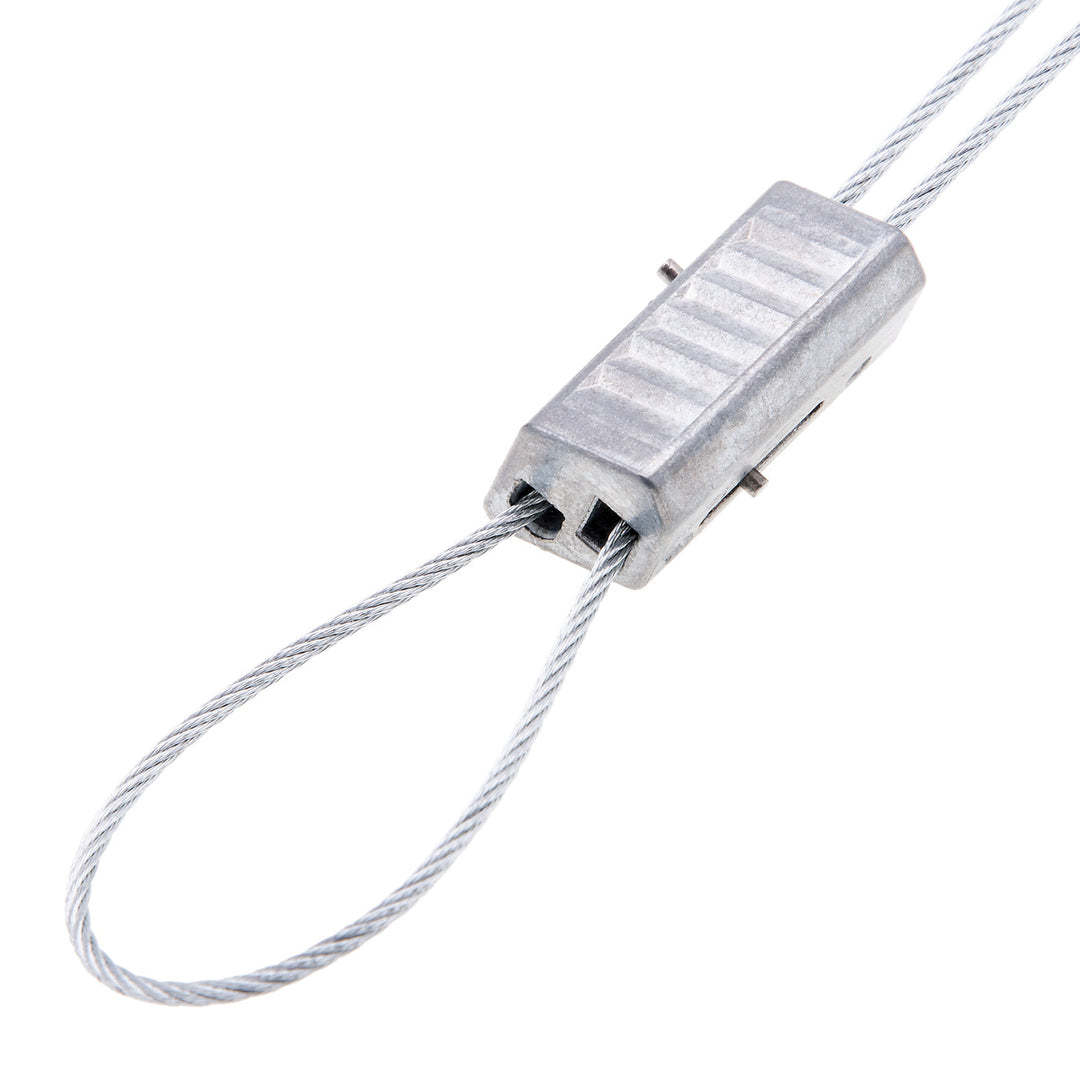

The Duro Dyne Dyna-Tite Cable Lock CL12-WC3, MPN 031114, is designed for hanging mechanical and HVAC systems. This cable suspension system can also support lighting, sound systems, cable trays, and fan units. Built with a die-cast Zinc Zamac 5 housing, it features internal locking wedges made of oil-impregnated, sintered steel.

• Compatible with 3/32 galvanized steel wire rope
• UL Listed to UL 1598
• Supports a variety of hanging applications

Product Highlights

This cable lock is built for durability and reliability in various applications.

Product Information

Standard Information

• Brand: Duro Dyne
• MPN: 031114

Technical Specifications

• Type: Cable Lock
• Application: Hanging spiral pipe and duct
• Wire Rope Compatibility: WC3 (RWC3)
• Wire Rope Diameter: 3/32 inch
• Wire Rope Construction: 7x7
• Wire Rope Min Breaking Strength: 920 lbs
• Safe Working Load: 25-150 lbs (12-68 kg)
• Quantity: 100
