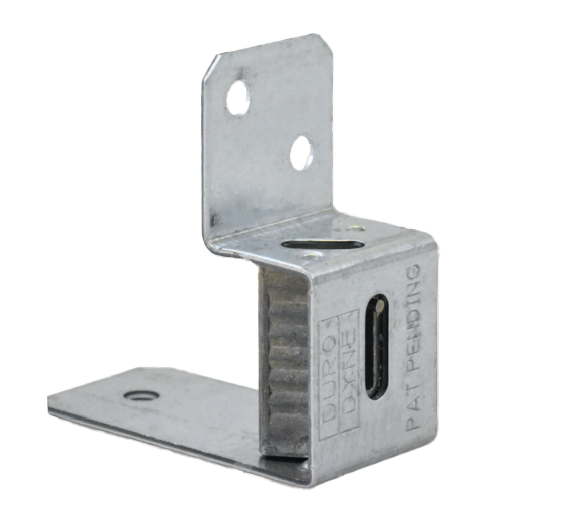

DURO DYNE 031075 KV Bracket Assembly with Cable Lock

Product Description

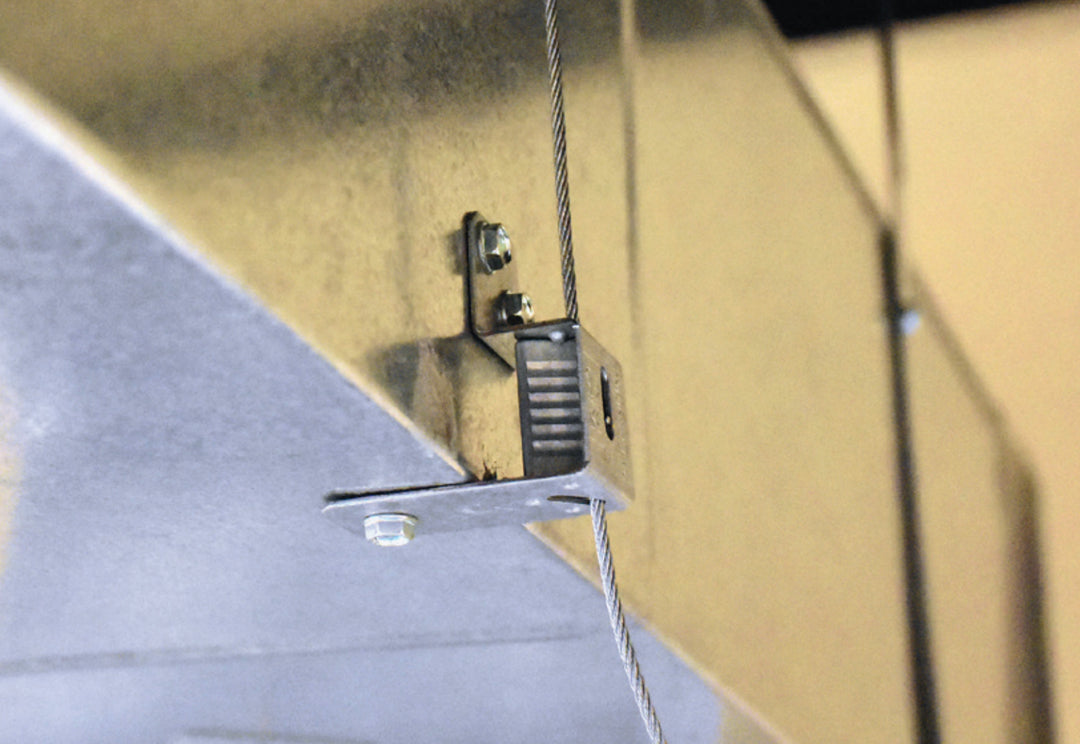

The Duro Dyne 31075 KV Bracket Assembly provides support for Dyna-Tite suspension systems. This assembly includes a cable lock designed to secure rectangular ductwork with sheet metal screws. A wire rope is threaded through the bracket and cable lock, where the locking teeth engage the wire rope to hold the ductwork firmly in place. A release pin allows for easy adjustments.

• Easy attachment with sheet metal screws
• Pre-assembled cable lock
• Release pin for adjustments

Product Highlights

The Duro Dyne KV Bracket is made of zinc plated steel and supports WC2/WC3 wire ropes and WC2-CL6/WC3-CL12 cable locks.

Product Information

Standard Information

• Brand: Duro Dyne
• MPN: 031075

Technical Specifications

• Type: Bracket Assembly
• Load Capacity: 25 to 150 lbs
• Color: Zinc Plated
