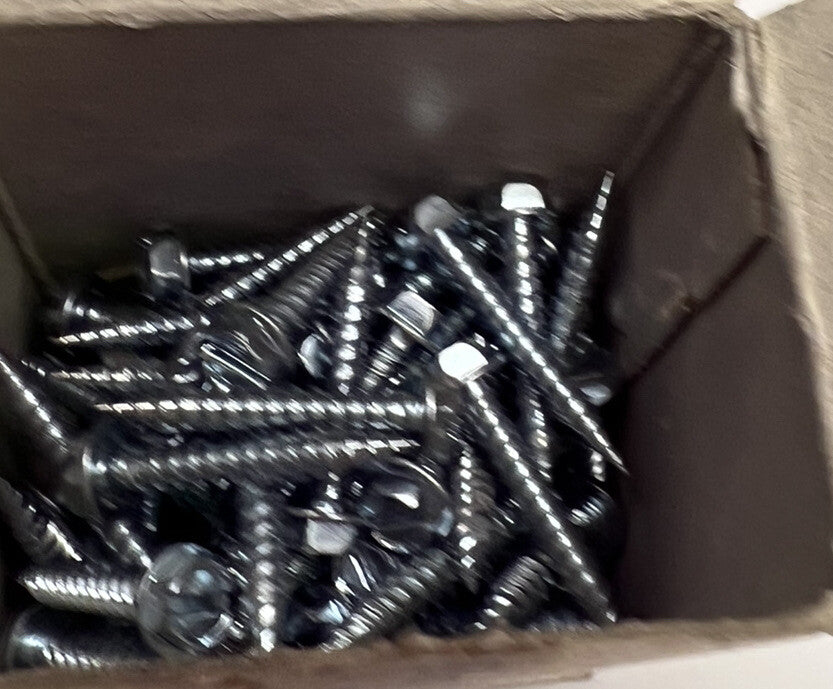

Duro Dyne 014191 Self-Drilling Screw

Product Description

The Duro Dyne 014191 is a self-drilling screw suitable for fastening heavy gauge metals. This product features a precision-formed drill point designed to create accurately sized holes. It eliminates the need for pre-drilling, making assembly easier and reducing alignment problems. Quality testing involves passing through one-eighth inch cold rolled steel, ensuring strength in various applications including attachment of four-bolt flanges to ductwork. The screw also has corrosion resistance, making it durable.

• Designed for heavy gauge metal fastening.
• Pre-drilling is not required.
• Resistant to corrosion for increased longevity.

Product Highlights

These screws are ideal for HVAC systems, ensuring secure and reliable connections.

Product Information

Standard Information

• Brand: Duro Dyne
• MPN: 014191

Technical Specifications

• Drill Point Size: #3
• Drive Style: Hex
• Finish: Zinc Plated
• Nominal Diameter: #10
• Length: 1 Inch
• Maximum Drill Capability: 0.175 Inch
• Drive Size: 5/16 Inch
• TPI: 16
• Applicable Standard: IFI-113
