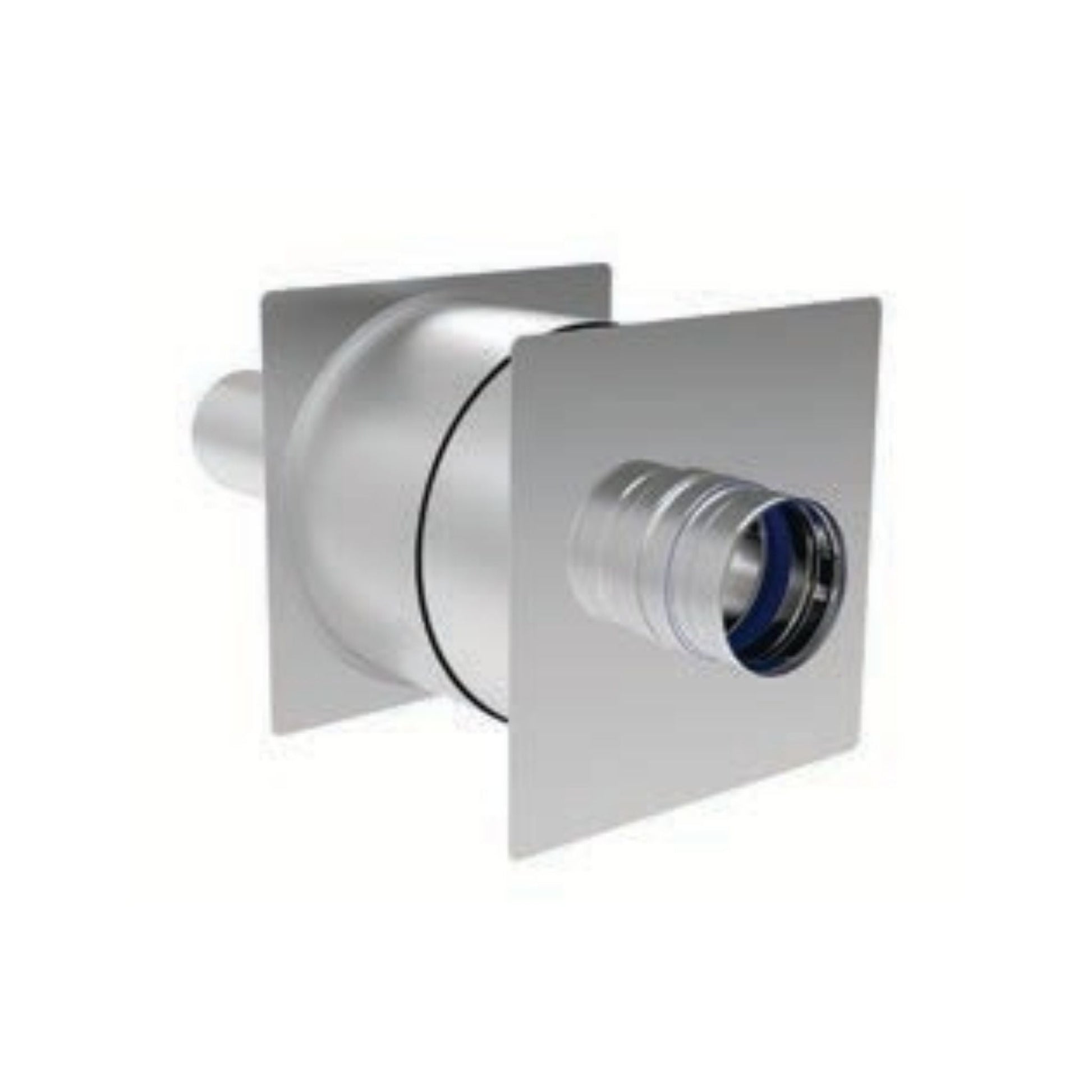

DuraVent FSWTI06 FasNSeal Insulated Wall Thimble 6 inch

Product Description

The DuraVent FSWTI06 FasNSeal Insulated Wall Thimble is made from 29-4C stainless steel. It features a mechanical locking band and triple-lipped directional gaskets. The design includes an air space between the inner and outer walls, which reduces the clearance to combustibles while providing a heat shield. This wall thimble is compatible with Category II, III, and IV gas burning appliances.

• Available in diameters ranging from three inches to sixteen inches
• Designed to fit between standard wall studs
• Includes AVL pipe for length adjustability

Product Highlights

Ideal for venting applications, this wall thimble enhances safety by maintaining proper clearances for gas appliances.

Product Information

Standard Information

• Brand: DuraVent
• Series: FasNSeal

Technical Specifications

• Model: FSWTI06
• Product Type: Insulated Wall Thimble
• Construction: 29-4C Stainless Steel
• Size (Diameter): 6 inches
• A: 11 inches
• B-Min: 5.75 inches
• B-Max: 11.5 inches
