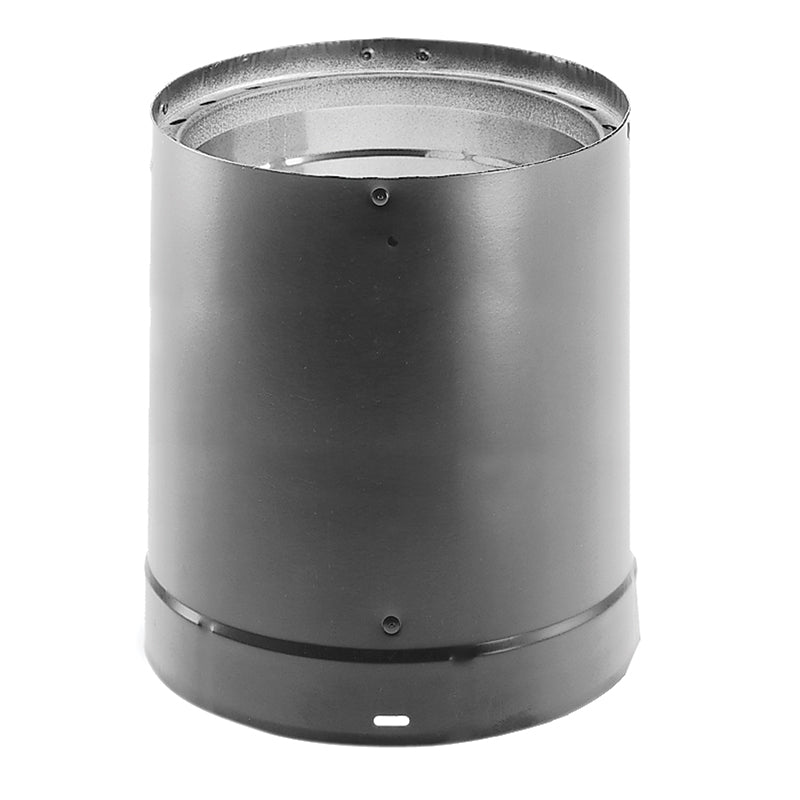

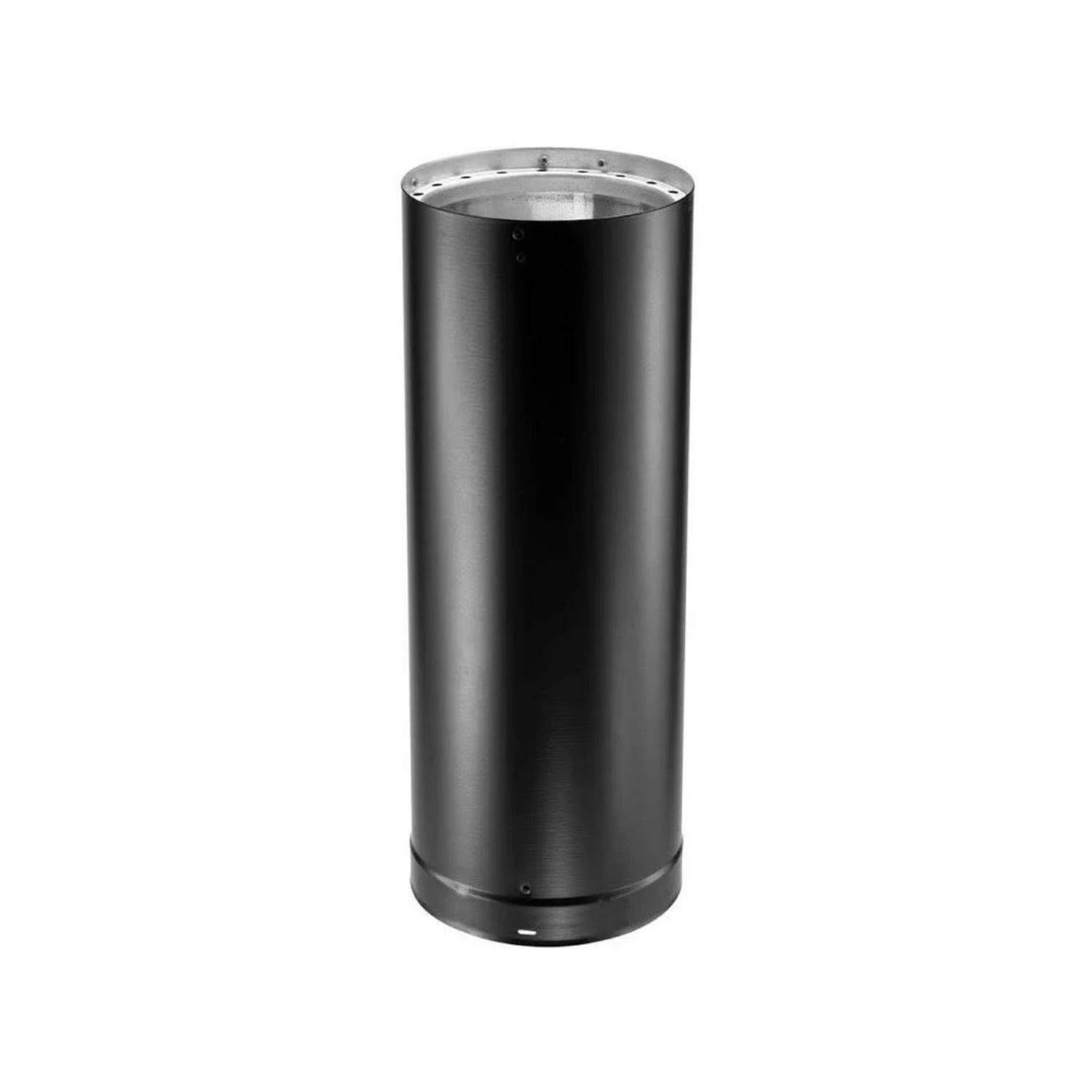

Duravent 8DVL-24 DVL 8 inches Diameter x 24 inches Long Double Wall Black Stove Pipe

Product Description

The DuraVent 8DVL-24 DVL 8" diameter by 24" long double wall black stove pipe adds 22.75" of length to the stove pipe run after connection overlap. This double wall air-insulated stove pipe reduces the minimum clearance to combustibles to 6" to walls and 8" to the ceiling. It features a .016" stainless steel inner wall and .018" galvanized outer wall that is painted black. Intended for interior use only.

• Double wall air-insulated stove pipe
• Reduces minimum clearance to combustibles
• .016" stainless steel inner wall

Product Highlights

The DuraVent DVL stove pipe is designed for installations requiring minimum clearance to combustibles and improves stove performance by maintaining high flue gas temperatures.

Product Information

Standard Information

• Brand: DURAVENT
• Manufacturer Part Number: 8DVL-24
• Country of Origin: United States

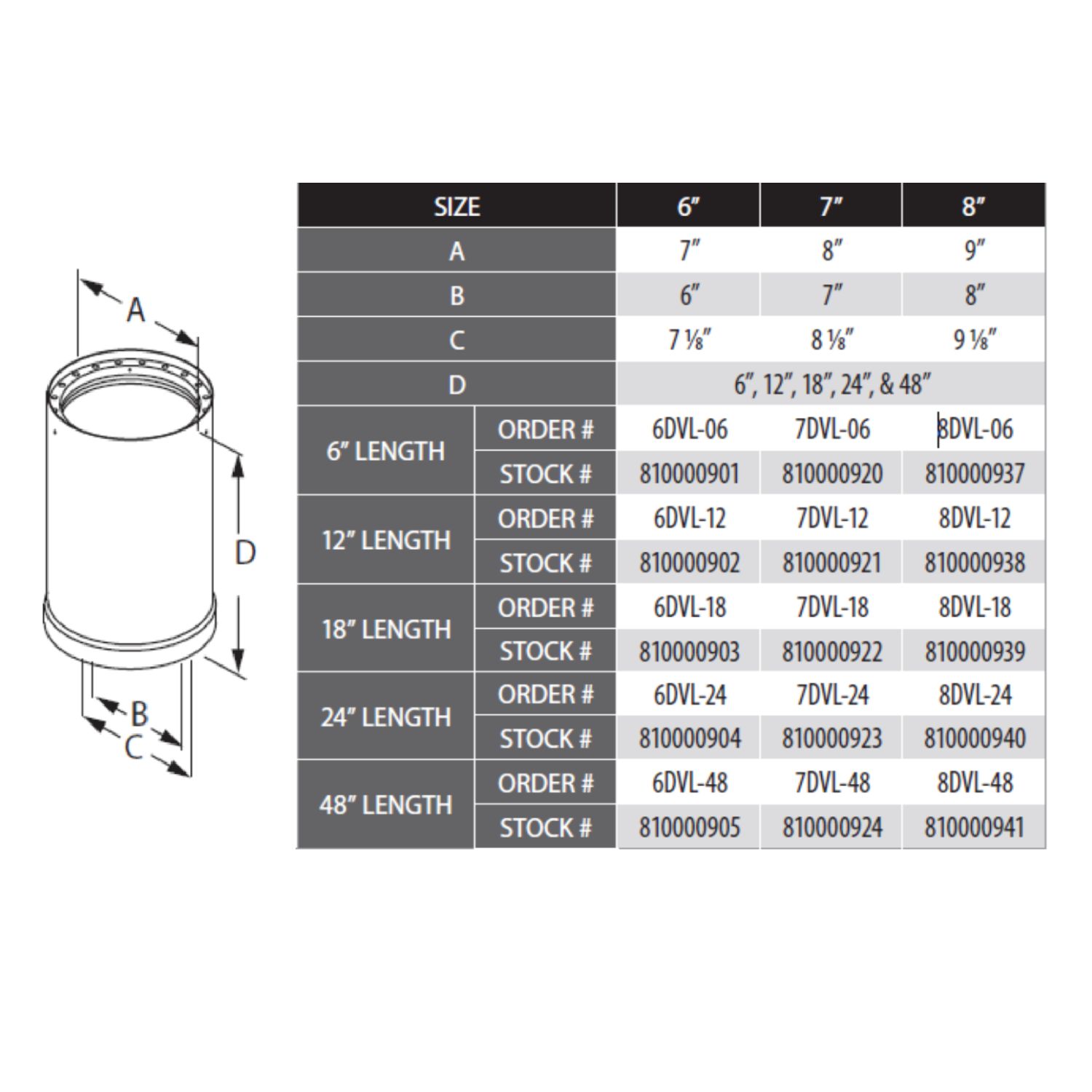

Technical Specifications

• Inner Diameter: 8"
• Outer Diameter: 9"
• Listed to: ULC S641
• Vertical run clearance to walls/combustibles: 6"
• Horizontal run clearance to ceilings: 8"
• Inner wall: .016" stainless steel
• Outer wall: .018" galvanized outer wall
• Installed length subtract: 3/4"
• Outer wall paint: black
• For Use With: Designed for installation with minimum clearance to combustibles
• Heavy-Duty Construction: Constructed with a stainless steel inner wall
• Length: 24"
• Inner Pipe Gauge: 27
• Outer Pipe Gauge: 28
• Pipe Inside Diameter: 8 in.
• Pipe Length: 24 in.
• Configuration: Pipe Length
• Inner Pipe Material: Stainless Steel
• Insulation Type: Air
• Material: Steel
• Outer Pipe Material: Galvanized Steel
• Pipe Class: Stove Pipe
• Pipe Shape: Round
• Vent Construction: Double Wall
• Fuel Type: Wood
• Application: Stove
• Approved for Commercial Use: No
• Certifications: UL
• Collection: DVL
• UL Listing Number: ULC S641
• Type: Vent Pipe
• Item Length: 24 in
• Model: 8DVL-24
• MPN: 8DVL-24
• Compatible Brand: DuraVent
• Compatible Model: Certain DuraVent 8 Inch DVL models.
• California Prop 65 Warning: Yes
• UL Listed: Yes
