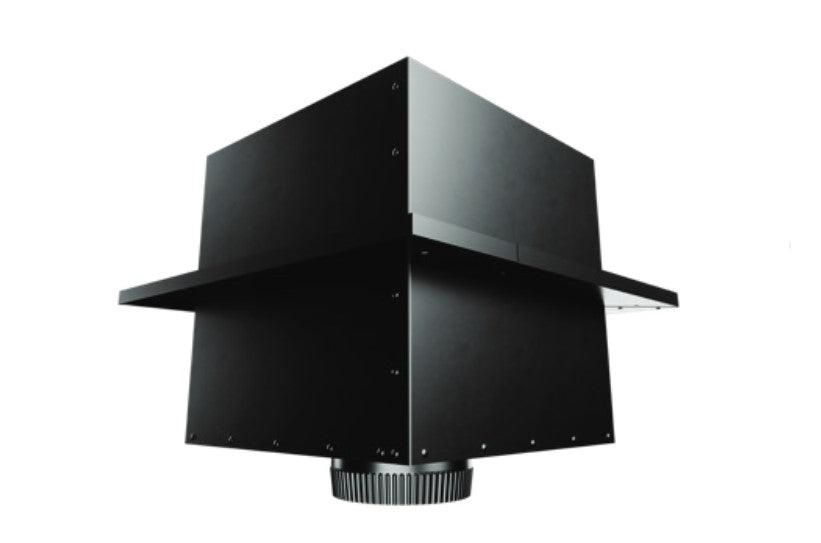

Duravent 8DT-CS11-2 DuraTech 11 feet' Square Ceiling Support Box

Product Description

The DURAVENT 8DT-CS11-2 DuraTech 11'' Square Ceiling Support Box supports chimney pipe and provides a positive connection between the support box and chimney with a built-in twist-lock. It is suitable for flat and cathedral (A-Frame) ceiling applications and can be used in short attic spaces. It fits between standard 16" on-center joists and most manufactured home applications. Supports up to 60' of DuraTech Chimney.

• Supports chimney pipe and provides a positive connection between support box and chimney with a built-in twist-lock.
• Suitable for both flat and cathedral (A-Frame) ceiling applications.
• Fits between standard 16" on-center joists and most manufactured home applications.

Product Highlights

The DuraTech ceiling support box features an integrated adapter that accepts either single-wall or double-wall stovepipe.

Product Information

Standard Information

• Brand: DURAVENT
• Manufacturer Part Number: 8DT-CS11-2

Technical Specifications

• Model: 8DT-CS11-2
• Series: DuraTech DT (5"-8")
• Product Type: Ceiling Support Box
• Inside Diameter: 8"
• Inner Diameter: 8-1/4"
• Height: 11"
• Outer Diameter: 11"
• Configuration: Support Box
• Material: Steel
• Pipe Class: Class A
• Pipe Shape: Round
• Vent Construction: Double Wall
• Fuel Type: Coal, Gas, Oil, Wood
• Certifications: UL
• Collection: DuraTech
