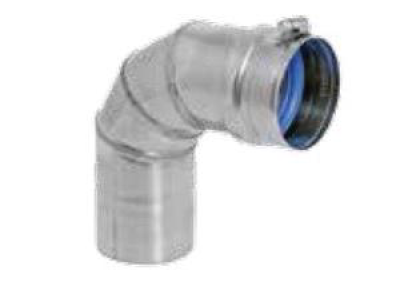

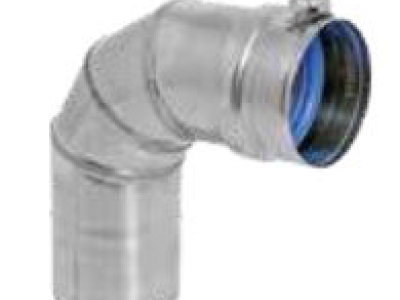

Duravent 810003106 FasNSeal Vent Elbow 3 in 90 deg

Product Description

The DURAVENT 810003106 FasNSeal vent lengths and components feature a patented built-in mechanical locking band and triple lipped directional gaskets. Pipes and components have smooth clean welds located 90 degrees from mechanical locking bands. It is suitable for use with FasNSeal special gas vents.

• Use to go from horizontal to vertical runs or vertical to horizontal runs
• Use to turn vent 90 deg
• Use with natural gas or propane Categories II, III and IV appliances or Canada's Type BH Gas Vent Systems, having a maximum rated operating temperature of 480 deg F and a maximum positive pressure of 15 in (FasNSeal Flex 6 in) water column

Product Highlights

The DURAVENT FasNSeal vent elbow features a built-in mechanical locking band and gasket for easy installation and maintenance. It provides horizontal or vertical venting for high efficiency gas boilers, furnaces, and water heaters.

Product Information

Standard Information

• Brand: DURAVENT
• Manufacturer Part Number: 810003106
• Country of Origin: CANADA

Technical Specifications

• Size: 3 in
• Angle: 90 deg
• Suitable For Use With: FasNSeal Special Gas Vent
• Material: Stainless Steel
• Model #: FSELB9003
• Shape: 90 Degree Elbow
• Type: Type-B
• P1 Diameter (inches): 3
• P1 Style: Round
• P1 Connection: Locking Band
• P2 Diameter (inches): 3
• P2 Style: Round
• P2 Connection: Locking Band
