Duravent 6DVL-E45 Vent Elbow DVL 45 Degree Double Wall Adjustable 6 Inch

Product Description

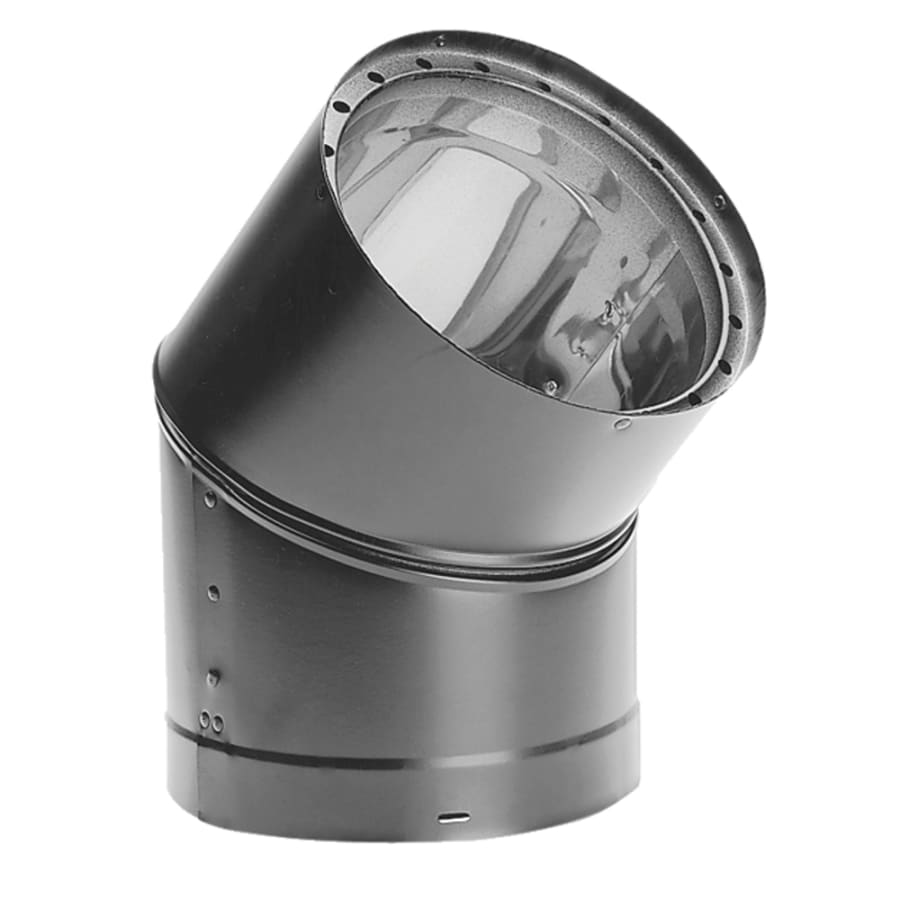

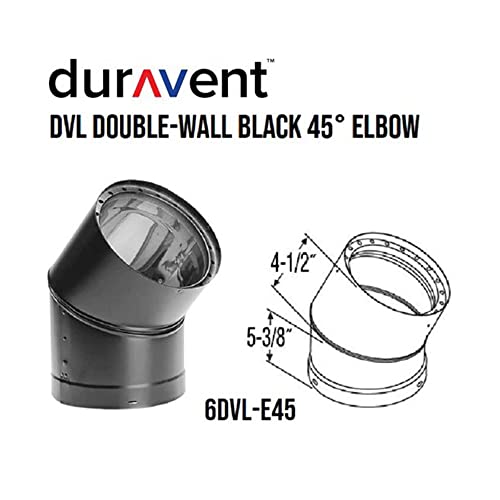

The DURAVENT 6DVL-E45 vent elbow is a DVL 45-degree double-wall adjustable component with a 6-inch diameter, designed for venting systems. It is used to navigate around obstructions with an adjustable angle. DVL's double-wall, air-insulated design reduces clearances to combustibles from 18 inches to 6 inches. The inner wall is stainless steel.

• Double Wall Construction
• 45 Degree Elbow
• Twist-Lock Connection

Product Highlights

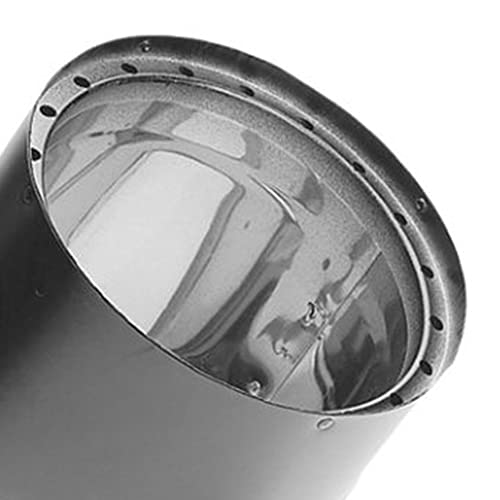

Double-wall air-insulated design reduces clearances to combustibles and improves stove performance. Stainless steel inner wall minimizes creosote formation.

Product Information

Standard Information

• Brand: DURAVENT
• Manufacturer Part Number: 6DVL-E45
• Country of Origin: China

Technical Specifications

• MPN: 6DVL-E45
• Brand: DURAVENT
• Configuration: Elbow
• Elbow by Angle: 45 (degree)
• Vent Construction: Double Wall
• Clearance: 6" for Double-wall DVL
• Continuous Burn: 1000°F (UL 103)
• Intermittent Burn: 2100°F (UL 103)
• Material (DVL): .016" Stainless Steel
• Insulation (DVL): 1/2", Air
• Joint/Connection Overlap: 1-1/2"
• Joint/Connection Type: Twist-Lock
• Supported Fuels: Wood
• Fuel Type: Wood
• Material: 26 Gauge Aluminized Steel
• Pipe Class: Stove Pipe
• Pipe Inside Diameter: 6
• Inner Diameter: 6"
• Elbow Angle: 45º
• Inner Pipe Material: Stainless Steel
• Insulation Type: Air
• Outer Pipe Material: Galvanized Steel
• Pipe Shape: Round
• Application: Stove
• Approved for Commercial Use: No
• Certifications: UL
• Collection: DVL
• UL Listing Number: ULC S641
• Inner Pipe Gauge: 27
• Outer Pipe Gauge: 28
• Item Package Quantity: 1
• Number Of Pieces: 1
• Batteries Included?: No
• Batteries Required?: No
• Nominal Wall Thickness: 0.1875 inch
• Outside Diameter: 7 Inches
• Item Length: 6 Inches
