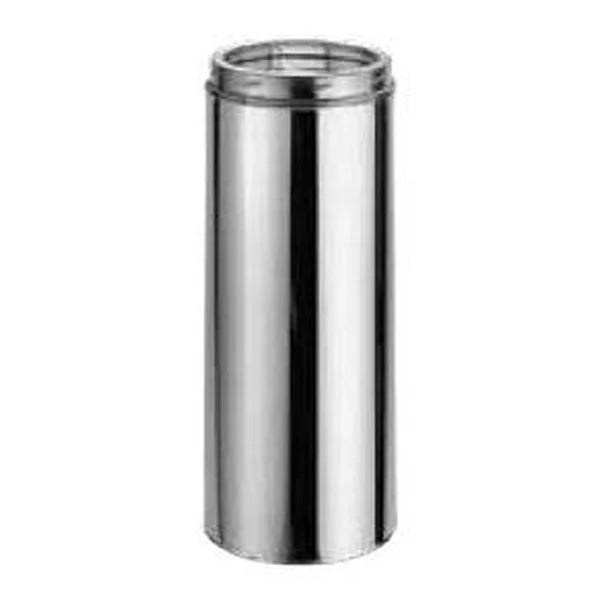

Duravent 6DT-48CF DuraTech Chimney Pipe 6 inches x 48 inches

Product Description

The DURAVENT 6DT-48CF DuraTech Chimney Pipe is designed for appliances tested and listed for use with a 2100 °F HT chimney system. Suitable for venting wood stoves, fireplaces, furnaces, boilers, ranges, water heaters, and other appliances fueled by wood, oil, coal, or gas. It features twist-lock connections for a strong secure fit and a clean smooth exterior finish.

• Designed for appliances tested and listed for 2100 °F HT chimney systems
• 430-alloy stainless steel inner wall
• 2" clearance to combustibles

Product Highlights

This Class A chimney pipe has a double-wall construction and ThermalTech blanket insulation. Approved for most fuel types and able to vent large fireplaces and building heating appliances.

Product Information

Standard Information

• Brand: DURAVENT
• Manufacturer Part Number: 6DT-48CF

Technical Specifications

• Brand: Duravvent
• Manufacturer: Duravent
• Model / MPN: 9407GACF
• Size: 48"
• Number of Items: 1.0
• Product Type: MECHANICAL_COMPONENTS
• Product Group: BISS
• Clearance to combustibles: 2"
• Outer Wall: 430 G-90 Galvanized Steel, .016" Thick, or .021" Galvalume Steel
• Inner Wall: 430 Stainless, .020" Thick.
• Insulation: Thermal Tech Blanket
• Maximum Temperature Rating: Rated for continuous use at 1000°, intermittent use at 2100°
• Supported Fuels: Wood, Oil, and Coal
• UL Listed: 103HT, 103
• Configuration: Pipe Length
• Fuel Type: Wood/Oil/Coal
• Length: 48"
• Material: Galvanized Steel
• Pipe Class: Class A
• Pipe Inside Diameter: 6
• Vent Construction: Double Wall
• Joint/Connection Overlap: 1-1/2"
• Joint/Connection Type: Twist-Lock standard on all diameters
