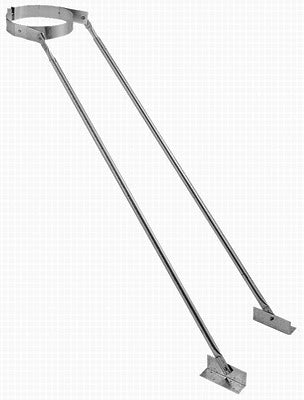

Duravent 6DP-XRB Extended Roof Bracket 6 Inches

Product Description

The DURAVENT 6DP-XRB is an extended roof bracket designed to stabilize chimney systems that extend more than 4 feet above the roofline. It mounts at the roof deck and provides lateral support against wind and snow loads, keeping the chimney plumb and secure through seasonal weather cycles. The bracket ships with adjustable legs, allowing the installer to match varying roof pitches without additional hardware. This fitting is sold as a single unit and weighs 2.6 pounds.

This bracket is used in residential and light commercial chimney installations where vertical vent runs extend well above the roof surface. Extended chimney heights are common on steep-pitch roofs or when termination clearances require added height above a ridge or obstruction. The adjustable leg design accommodates a range of installation angles, making it suitable for both new construction and retrofit projects where chimney stability is a code or manufacturer requirement.

Key Features

• Supports chimney assemblies extending more than 4 feet above the roof
• Resists lateral movement caused by wind and snow loading
• Adjustable legs included for variable roof pitch compatibility
• Designed for 6-inch diameter vent systems
• Single-unit package for straightforward inventory and ordering

Compatibility

Designed as an OEM-style component for 6-inch diameter pellet vent or double-wall chimney systems requiring extended above-roof support.

Installation Notes

Installation is typically performed by a licensed chimney professional or HVAC technician familiar with venting codes and roof penetration requirements. Power down any connected appliance and allow the system to cool completely before working on roof-mounted vent components. The bracket must be fastened to solid roof framing or blocking, not to sheathing alone. Consult local building codes and the appliance manufacturer installation instructions for required clearances and fastener specifications.

Technical Specifications

• Diameter: 6 inches
• Weight: 2.6 pounds
• Package Quantity: 1

Standard Information

• Brand: DURAVENT
• Manufacturer Part Number: 6DP-XRB
