Duravent 6DP-FRS DuraPlus All-Fuel Chimney 6in. Diameter Firestop Radiation Shield

Product Description

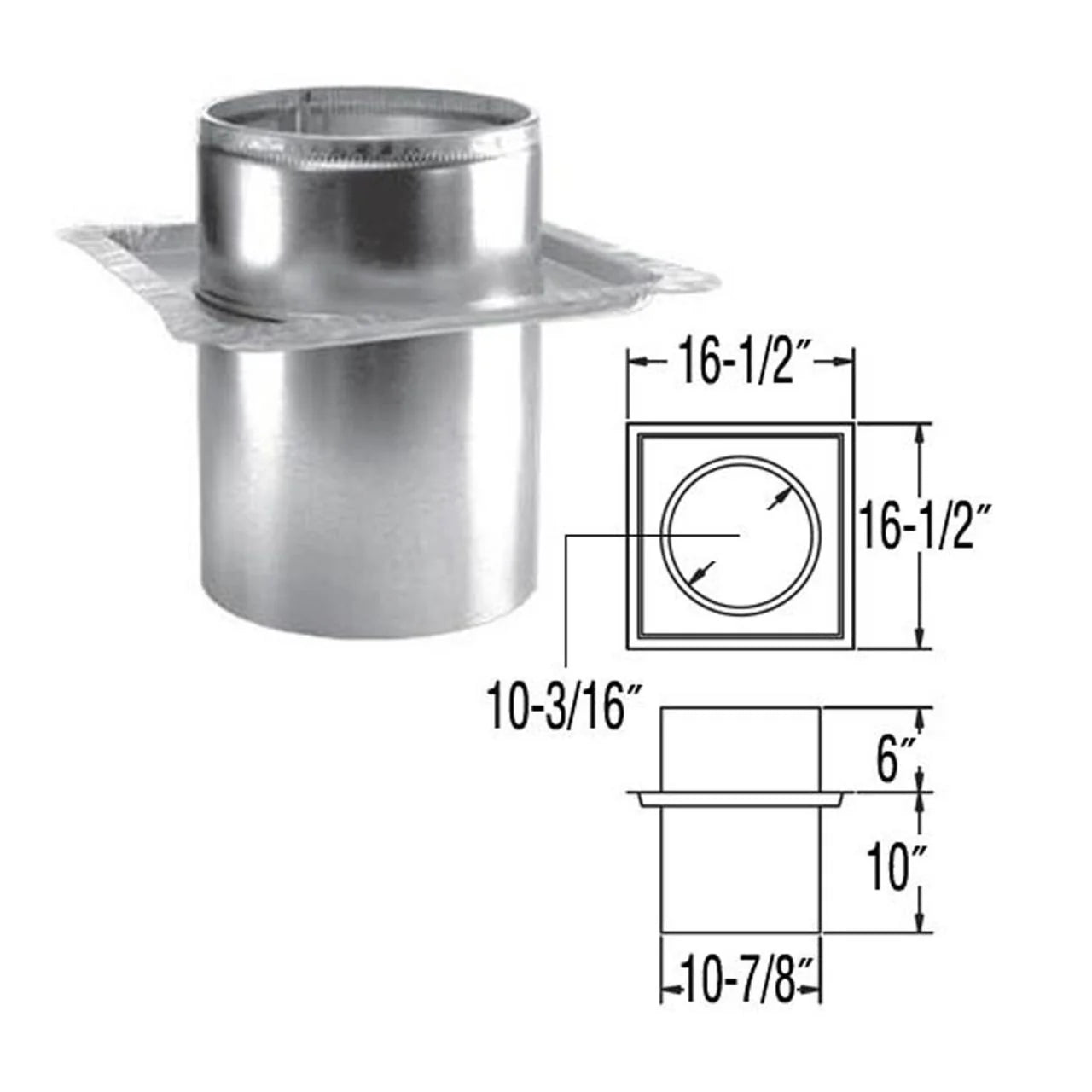

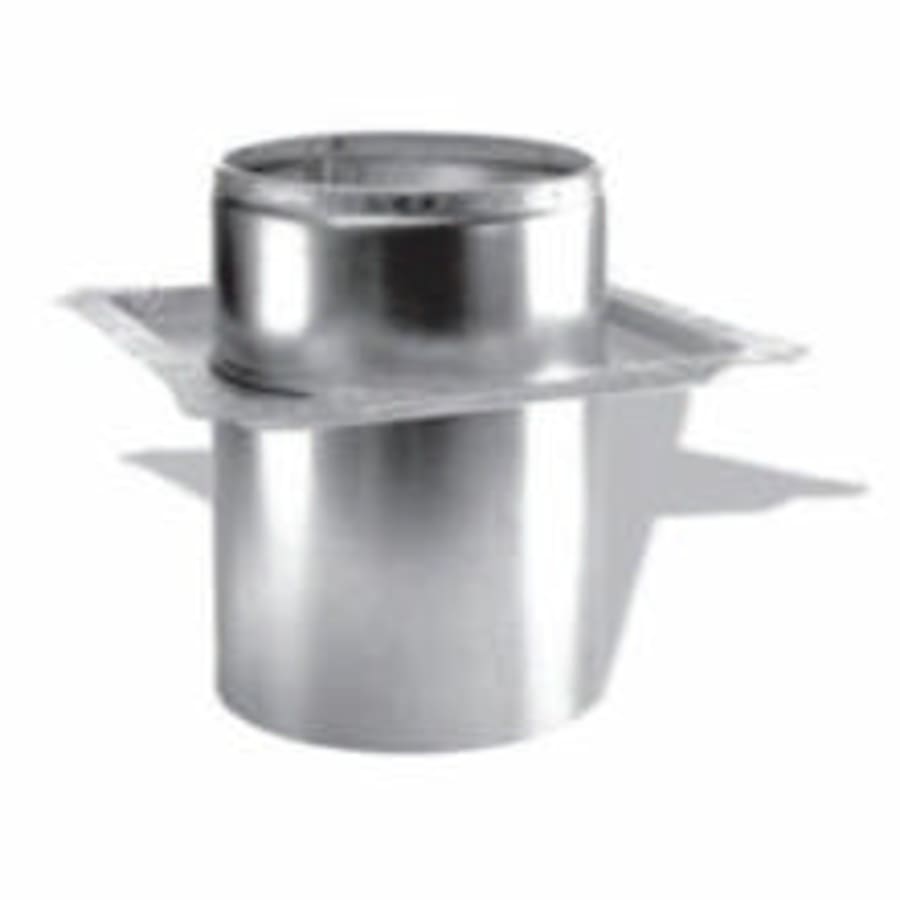

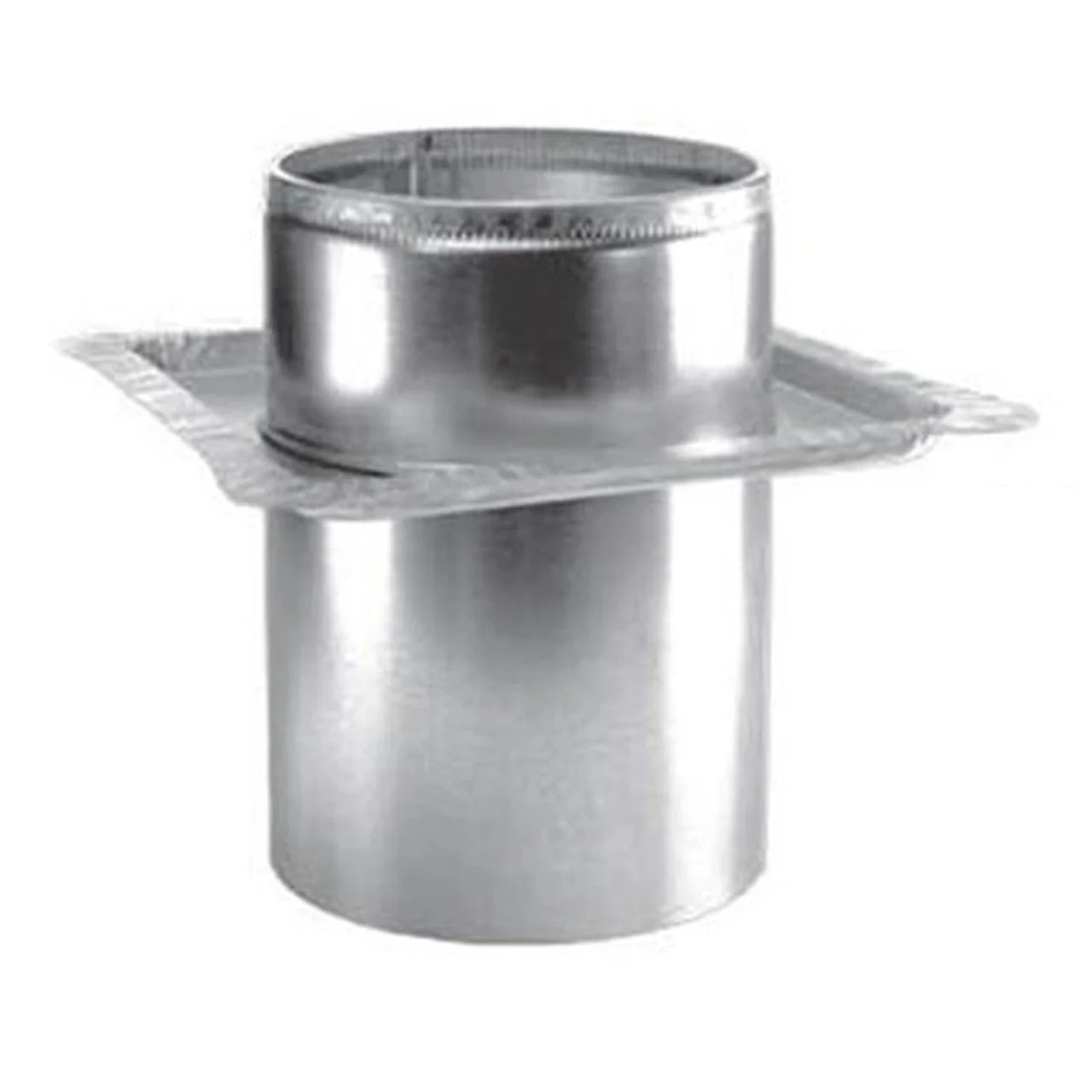

The DURAVENT 6DP-FRS DuraPlus All-Fuel Chimney Firestop Radiation Shield is used in ceiling and floor penetrations when a ceiling support is not used. It fits on the underside of the ceiling and adjusts to cover framing. DuraPlus is a triple-wall, all-fuel chimney, designed to stay cool on the outside and provide hot drafts on the inside.

• Use in ceiling and floor penetrations when no ceiling support
• Fits on underside of ceiling and adjusts to cover framing
• Not required when passing through the roof

Product Highlights

This firestop radiation shield protects joists from excessive heat when passing DuraPlus Chimney through a ceiling. It features triple wall construction and a precision twist-lock connection.

Product Information

Standard Information

• Brand: DURAVENT
• Manufacturer Part Number: 6DP-FRS
• Country of Origin: United States

Technical Specifications

• Pipe Wall: Triple Wall
• Pipe Piece: Radiation Shield
• Type: Class A Pipe
• Diameter: 6 Inch
• Inner Diameter: 6"
• Outer Diameter: 10-7/8"
• Configuration: Shield
• Inner Pipe Material: 430 Stainless Steel
• Insulation Type: Air, Ceramic blanket
• Intermediate Liner: .018" Aluminized Steel
• Outer Pipe Material: Galvanized Steel
• Pipe Class: Class A
• Pipe Shape: Round
• Vent Construction: Triple Wall
• Fuel Type: All Fuel, Coal, Gas, Oil, Wood
• Application: Appliance, Boiler, Fireplace, Furnace, Ranges, Stove, Water Heater, Wood Stove
• Certifications: UL
• Collection: DuraPlus
• UL Listing Number: UL 103 HT
