Duravent 4PVP-WT Wall Thimble PelletVent Pro for 1 inches Clearance 4 Inch

Product Description

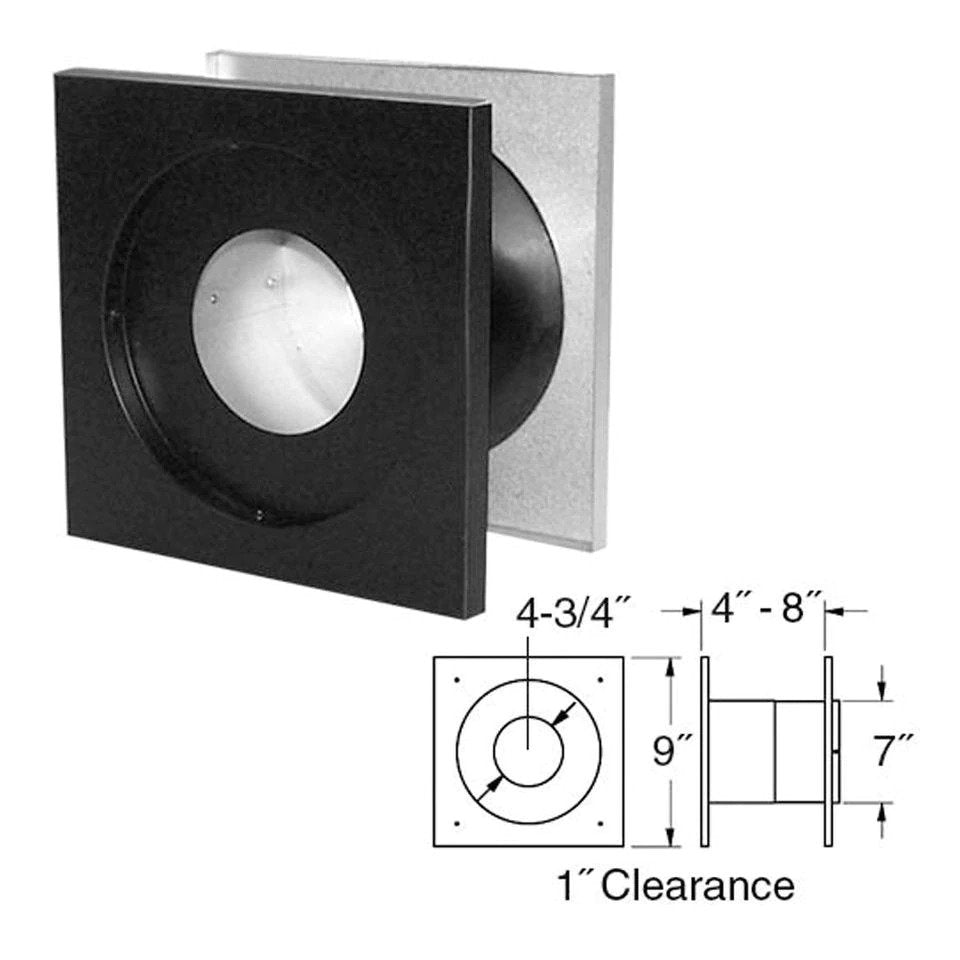

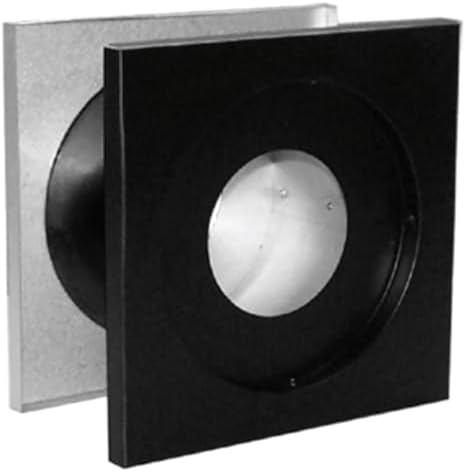

The DURAVENT 4PVP-WT Wall Thimble PelletVent Pro provides a 1" clearance for through-the-wall installations. It fits between standard wall studs and includes an insulation ring to minimize air infiltration where the pipe passes through the thimble. Constructed from galvanized metal and Zincalume, it features a duralock system for a tight seal.

• Used to provide required 1'' clearance to combustibles
• Fits between standard wall studs
• Comes with an insulation ring to cut drafts where the pipe slips through the thimble

Product Highlights

The DuraVent PelletVent Pro Wall Thimble is for through-the-wall installations and fits between standard wall studs. It is a Type L Biofuel Chimney Pipe component.

Product Information

Standard Information

• Brand: DURAVENT
• Manufacturer Part Number: 4PVP-WT

Technical Specifications

• Fuel Type: BioFuel, Oil, Pellet
• Width: 9"
• Height: 9"
• Double Wall Construction: UL Listed
• Construction Materials: Galvanized metal and Zincalume
• Material: Stainless Steel
