Duravent 4PVP-12 Pipe PelletVent Pro Straight Length 4 x 12 Inch

Product Description

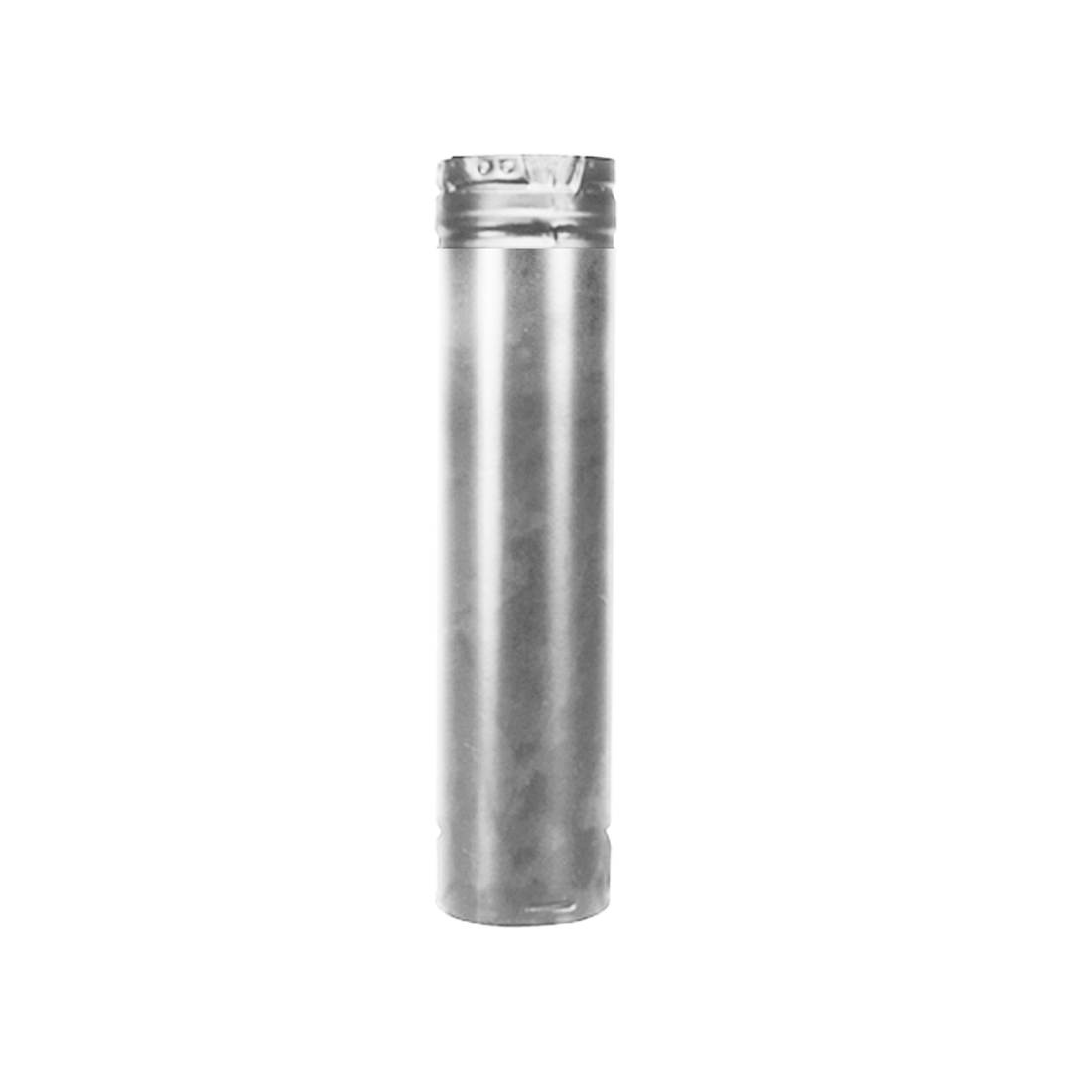

The DURAVENT 4PVP-12 Pipe PelletVent Pro Straight Length is a 4 x 12 inch pipe made from 304 stainless steel. Features a twist-lock construction and is listed at 1" clearance to combustibles in the USA. It can be used in both vertical and horizontal installations. Designed for stoves and inserts that use wood pellets and oil fuel, and can also vent corn and other biofuel products.

• Twist-lock connection
• 1" clearance to combustibles in the USA
• Duralock system for a tight seal

Product Highlights

This PelletVent Pro pipe features twist-lock construction and is suitable for vertical and horizontal installations. Constructed from stainless steel and galvalume.

Product Information

Standard Information

• Brand: DURAVENT
• Manufacturer Part Number: 4PVP-12
• Country of Origin: United States

Technical Specifications

• Diameter: 4" ID x 4 5/8'' OD
• Construction Materials: Laser-welded, double-wall pipe with an inner wall of .012" stainless steel and a .018" laser-welded galvalume outer wall
• Clearances: 1" clearance to combustibles in the USA for appliances using wood pellets or oil. 1" clearance to combustibles in Canada for oil-burning (type L vent) appliances. 3" clearance to combustibles in Canada for wood pellet-burning appliances
• Listings: c-UL-us Listed to UL 641 (MH8381 and MH14420). ULC Listed to ULC S609, ULC/ORD C441 (CMH1439 and CMH1440)
• Connection: Twist-lock connection
• Type: Straight Pipe
• Pipe Class: Type L
• Pipe Shape: Round
• Collection: PelletVent Pro
• Vent Construction: Double Wall
• Outer Pipe Material: Galvalume
• Inner Pipe Material: 444 Stainless Steel
• UL Listed: True
• Inner Pipe Gauge: 30
• Outer Pipe Gauge: 28
• Pipe Inside Diameter: 4"
