Duravent 46DVA-KHA DirectVent Pro Horizontal Termination Kit A 4 x 6-5/8-Inch

Product Description

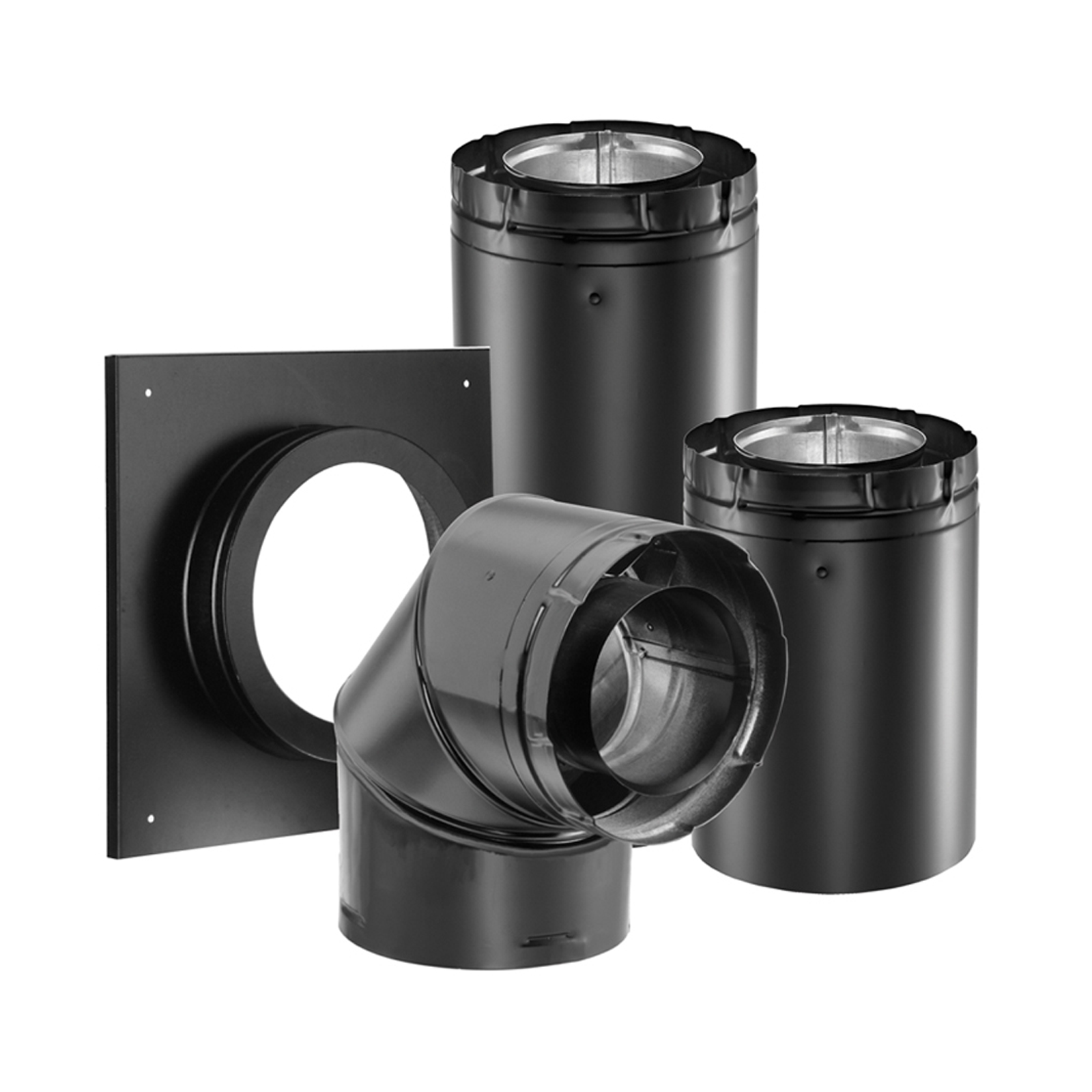

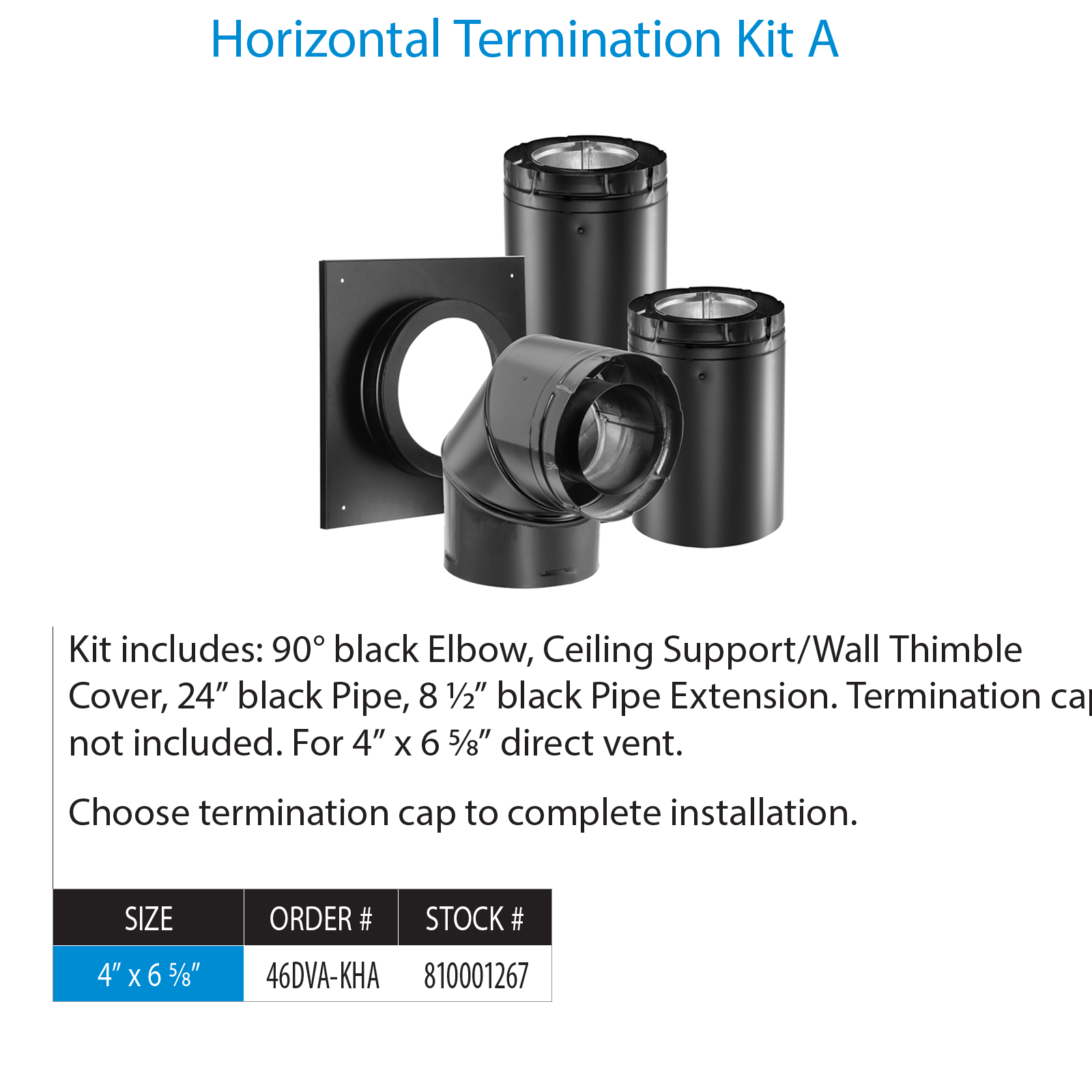

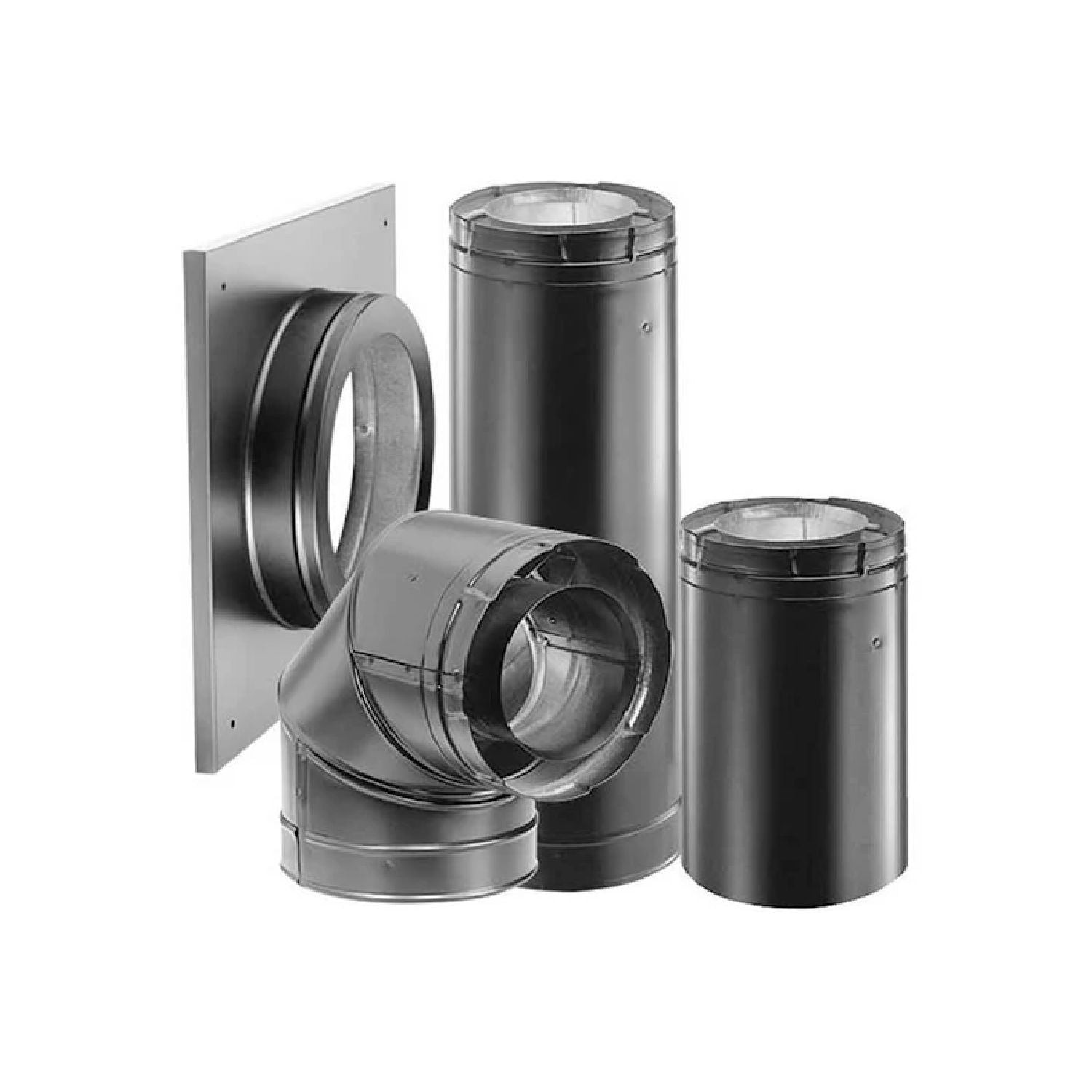

The DURAVENT 46DVA-KHA DirectVent Pro Horizontal Termination Kit A provides a pipe designed for appliances tested and listed for direct vent. This kit includes a 90-degree black elbow, a ceiling support/wall thimble cover, a 24-inch black pipe, and an 8.5-inch black pipe extension. A termination cap is not included.

• Allows for horizontal termination of a vent pipe
• Includes a 90-degree black elbow, ceiling support/wall thimble cover, 24-inch black pipe, and an 8.5-inch black pipe extension
• For use with 4x6 5/8-inch direct vent

Product Highlights

This DuraVent DirectVent Pro kit is for horizontal termination of direct vent piping and includes essential components for installation.

Product Information

Standard Information

• Brand: DURAVENT
• Manufacturer Part Number: 46DVA-KHA

Technical Specifications

• Series: DirectVent Pro
• Venting Size: 4x6-5/8-Inch
• Venting Style: Direct Vent Rigid
• Vent Size: 4" x 6 5/8"
• Inner Pipe: 4"
• Outer Pipe: 6 5/8"
• Material: Aluminum
• Diameters: 4" x 6 5/8"
• Inner Material: Aluminum
• Brand: DuraVent®
• Model: 46DVA-KHA
• Pipe Inside Diameter: 4 in.
• Configuration: Kit
• Pipe Shape: Round
• Vent Construction: Double Wall
• Fuel Type: Gas
• For piping with: 4" inner diameter and 6 5/8" outer diameter
• Compatible with: DirectVent Pro venting products
