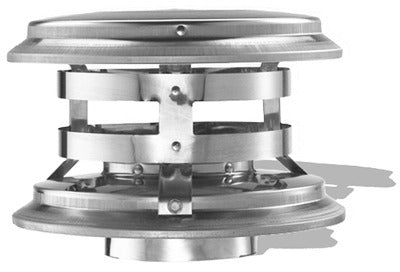

Duravent 3PVL-VCR Pellet Vent Vertical Cap 3 Inches

Product Description

The DURAVENT 3PVL-VCR is a 3-inch pellet vent vertical cap designed for use with wood pellet stoves and inserts that terminate vertically through the roof. The cap features a twist-lock collar for secure attachment and an integrated grid that blocks birds and debris from entering the vent system. It is UL Listed for 3-inch clearance to combustibles in both the United States and Canada. This component is installed by HVAC technicians or certified chimney professionals as part of a complete pellet vent termination assembly.

This vertical cap is designed exclusively for vertical termination applications on pellet-burning stoves and inserts. It is not intended for sidewall or horizontal terminations. The twist-lock collar simplifies field installation and provides a reliable mechanical connection to the vent pipe below. The bird guard grid reduces the risk of nesting or blockage at the terminal point, which can restrict draft and cause appliance performance issues.

Key Features

• Twist-lock collar secures the cap to the vertical vent pipe without separate fasteners
• Integrated bird guard grid prevents nesting and debris intrusion
• UL Listed for 3-inch clearance to combustibles in the USA and Canada
• Designed specifically for wood pellet stoves and inserts
• For vertical terminations only — not rated for horizontal use

Compatibility

Designed as a vertical termination cap for 3-inch pellet vent systems serving wood pellet stoves and inserts. Compatible with vertical vent configurations requiring UL-Listed clearance to combustibles. Verify vent pipe diameter and termination type before installation.

Installation Notes

Installation should be performed by a qualified HVAC technician or certified chimney professional in accordance with local building codes and the appliance manufacturer's instructions. Shut down and allow the pellet stove to cool completely before servicing any vent components. Confirm the vent pipe diameter and termination orientation match the cap specifications before mounting. This cap is rated for vertical terminations only and must not be used in horizontal or near-horizontal vent runs.

Technical Specifications

• Pipe Diameter: 3 inches
• Termination Type: Vertical only
• Shape: Round
• Weight: 1.3 pounds
• Listing: UL Listed for 3-inch clearance to combustibles (USA and Canada)
• Package Quantity: 2 per package

Standard Information

• Brand: DURAVENT
• Manufacturer Part Number: 3PVL-VCR
