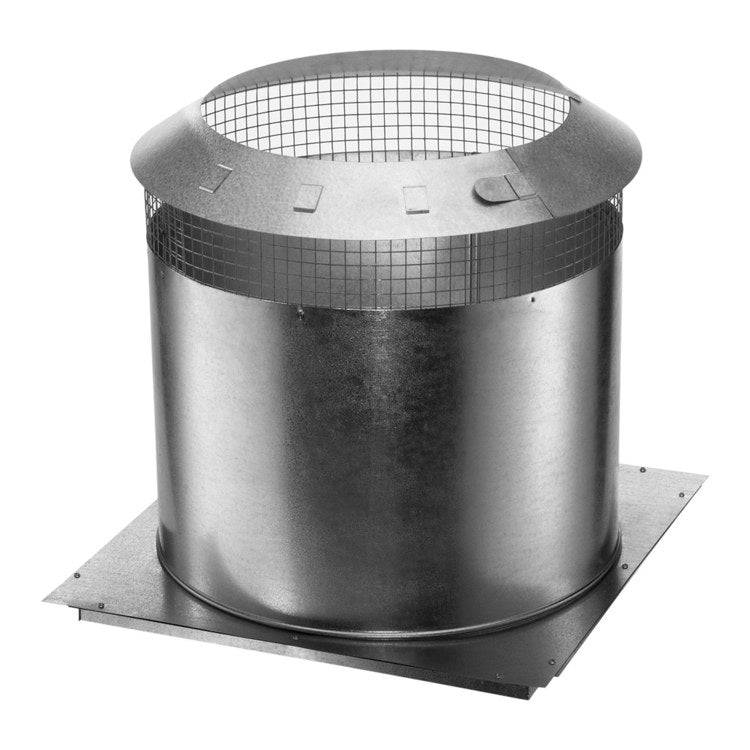

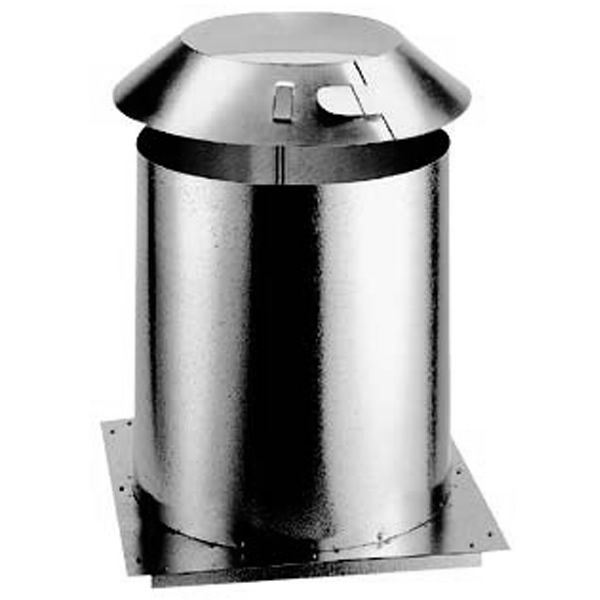

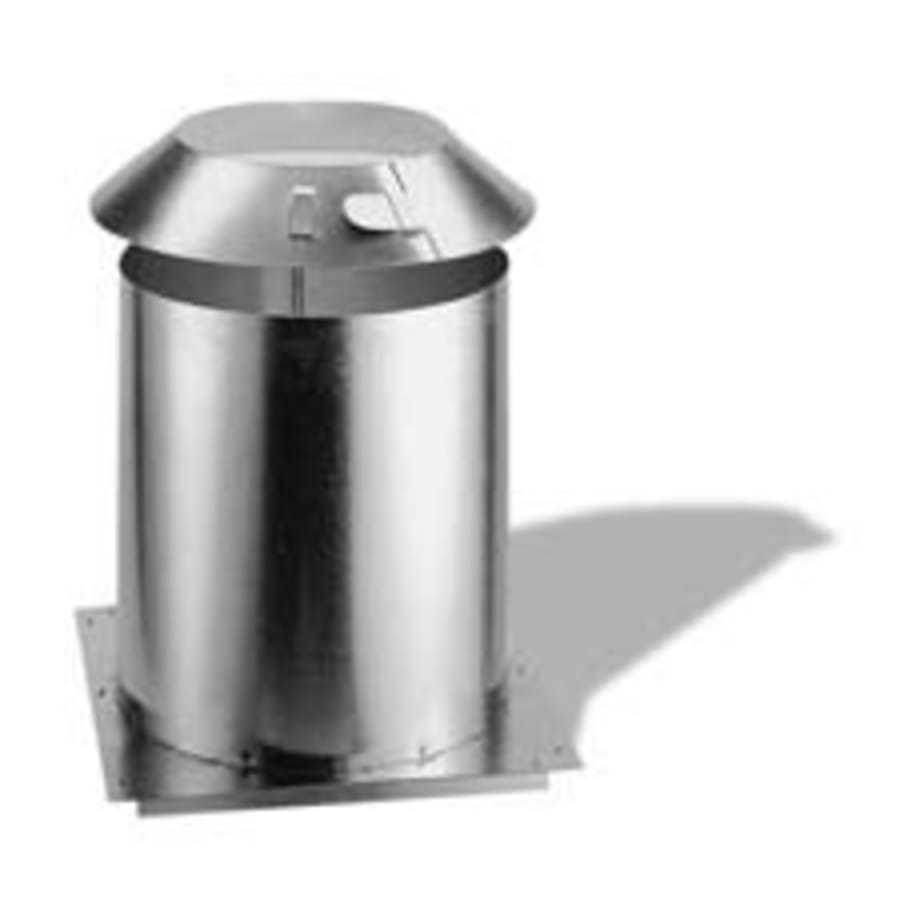

Duravent 12DT-IS insulation shield attic with collar/base/mesh sleeve 12 inch

Product Description

The DURAVENT 12DT-IS insulation shield attic comes with a collar, base, and mesh sleeve. This 12-inch stainless steel shield is designed for all-fuel chimney systems. It prevents insulation and debris from accumulating near the chimney when passing through an attic. Fits over a Firestop Radiation Shield or support box.

• Fits Over Firestop Radiation Shield or a Support Box
• Comes with Collar, Base, and Mesh Sleeve Around Top
• UL Listed

Product Highlights

The DURAVENT insulation shield is for all-fuel chimney systems and prevents debris accumulation. It features a collar, base, and mesh sleeve.

Product Information

Standard Information

• Brand: DURAVENT
• Manufacturer Part Number: 12DT-IS

Technical Specifications

• Brand: Duravent
• Product Type: Attic with Collar/Base/Mesh Sleeve
• Size: 12IN
• Material: Stainless Steel
• Used on: All-Fuel Chimney System
• Inner Diameter: 12"
• Outer Diameter: 14"
• Height: 15"
• Base Dimensions: 20" x 20"
• Inner Pipe Gauge: 23
• Length: 24 in.
• Outer Pipe Gauge: 24
• Pipe Inside Diameter: 12 in.
• Width: 24 in.
• Configuration: Shield
• Inner Pipe Material: 430 Stainless Steel
• Insulation Type: Thermal Tech
• Outer Pipe Material: Galvalume
• Pipe Class: Class A
• Pipe Shape: Round
• Vent Construction: Double Wall
• Fuel Type: All Fuel, Coal, Gas, Oil, Wood
• Application: Appliance, Boiler, Fireplace, Furnace, Ranges, Water Heater, Wood Stove
• Approved for Commercial Use: No
• Certifications: UL
• Collection: DuraTech
• UL Listing Number: UL 103, ULC S604
