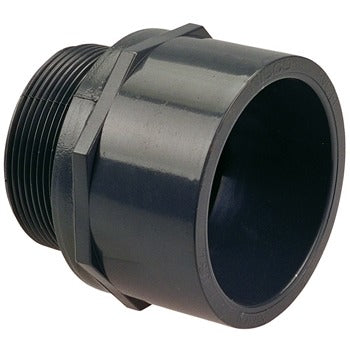

Dura Plastic PVC80ADSMIP1 Schedule 80 Male Adapter 1 in

Product Description

The DURA PLASTIC PVC80ADSMIP1 is a Schedule 80 PVC male adapter fitting designed to transition from a socket (slip) connection to a male pipe thread (MPT) connection. This fitting measures 1 inch in both the socket and threaded ends. Built from rigid PVC to Schedule 80 wall thickness standards, it delivers greater pressure ratings and impact resistance compared to Schedule 40 equivalents. Licensed plumbers and pipe fitters install this adapter in pressurized water supply, irrigation, chemical handling, and industrial piping systems where a threaded male end is required to connect into a female-threaded valve, pump, or equipment port.

This fitting is suited for residential and commercial plumbing, irrigation distribution, and light industrial fluid-handling applications. The socket end accepts solvent-welded 1-inch PVC pipe, while the MPT end threads directly into a 1-inch female NPT fitting, valve body, or equipment inlet. Schedule 80 construction makes it appropriate for higher-pressure service lines and installations where extra wall thickness is required by specification or code.

Key Features

• Schedule 80 wall thickness provides higher pressure rating than Schedule 40 PVC fittings
• 1-inch socket (slip) inlet accepts solvent-cement bonding to standard 1-inch PVC pipe
• 1-inch male NPT thread outlets into female-threaded valves, pumps, and equipment ports
• Rigid PVC construction offers resistance to corrosion and many common chemicals
• Compact adapter profile minimizes dead-leg volume in the transition

Compatibility

Designed as an OEM-style replacement and standard-use fitting for Schedule 80 PVC piping systems using 1-inch nominal pipe size with socket and male NPT threaded connections.

Installation Notes

Installation is performed by licensed plumbers or qualified pipe fitters in accordance with applicable IPC and local plumbing codes. Depressurize and drain the system completely before cutting into any existing line. Apply approved PVC primer and solvent cement to the socket end per manufacturer instructions; hand-tighten the MPT end into the mating female thread and apply PTFE tape or pipe thread sealant to prevent leaks. Do not over-torque the threaded connection, as PVC threads are susceptible to cracking under excessive force.

Technical Specifications

• Material: PVC
• Schedule: Schedule 80
• Pipe Size: 1 inch
• Inlet Connection Type: Socket (Slip)
• Outlet Connection Type: Male NPT (MPT)

Standard Information

• Brand: DURA PLASTIC
• Manufacturer Part Number: PVC80ADSMIP1
