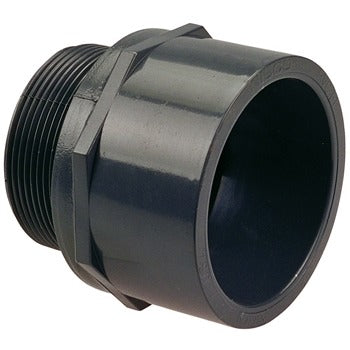

Dura Plastic PVC80ADSFIP114 Schedule 80 Male Adapter

Product Description

The DURA PLASTIC PVC80ADSFIP114 is a 1-1/4 inch Schedule 80 PVC male adapter fitting designed to transition between a socket (slip) connection and a female iron pipe thread (FIPT) connection. Built from rigid gray PVC to Schedule 80 wall-thickness standards, this adapter handles higher-pressure applications than Schedule 40 fittings, making it a reliable choice wherever added wall strength and chemical resistance are required. Plumbers and pipefitters use this fitting to connect PVC pipe runs to threaded iron or steel pipe sections, valves, pumps, and equipment ports.

This adapter is suited for use in residential and commercial plumbing systems, irrigation headers, industrial process lines, and pool or spa equipment plumbing. The socket end accepts 1-1/4 inch PVC pipe with solvent cement, while the male NPT thread end screws into a female-threaded valve, pump port, or pipe coupling. It is a common fitting in cold and ambient-temperature water distribution, chemical handling, and recirculation systems where Schedule 80 wall thickness is specified or required by code.

Key Features

• Schedule 80 PVC construction provides greater wall thickness and pressure rating compared to Schedule 40
• 1-1/4 inch socket (slip) inlet accepts standard PVC pipe with solvent cement weld
• Male NPT threaded outlet for connection to female-threaded valves, pumps, or fittings
• Gray PVC material offers good chemical resistance for a wide range of fluid handling applications
• Compact adapter design minimizes transition length in tight installation spaces

Compatibility

Designed as an OEM-style replacement or new-installation fitting for Schedule 80 PVC piping systems using 1-1/4 inch nominal pipe size with standard NPT threaded connections.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable IPC or local plumbing code requirements. Depressurize and drain the system fully before cutting into any existing line. Use a compatible PVC Schedule 80 solvent cement and primer on the socket end, and apply thread sealant tape or compound rated for PVC on the male NPT threads before engagement. Do not over-torque the threaded connection, as PVC threads can crack under excessive force.

Technical Specifications

• Material: PVC Schedule 80
• Pipe Size: 1-1/4 inches
• End Connections: Socket (slip) x Male NPT (MIPT)
• Schedule: 80

Standard Information

• Brand: DURA PLASTIC
• Manufacturer Part Number: PVC80ADSFIP114
