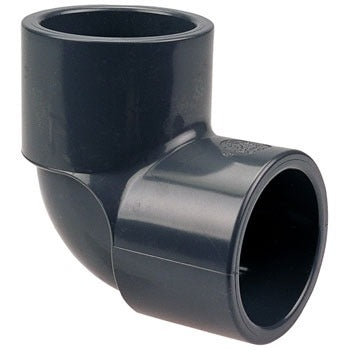

Dura Plastic PVC8090L3 Schedule 80 Socket 90 Elbow 3 in

Product Description

The DURA PLASTIC PVC8090L3 is a Schedule 80 PVC 90-degree elbow fitting with a socket-by-socket (S x S) connection. It is designed for use in pressure-rated piping systems where the added wall thickness and durability of Schedule 80 PVC is required. The 3-inch socket ends accept standard 3-inch PVC pipe for solvent-cement joining. This fitting is commonly installed by licensed plumbers and pipefitters working on industrial, commercial, or heavy-duty residential systems where Schedule 40 wall thickness is insufficient.

This elbow is suited for plumbing, irrigation, chemical distribution, and industrial process lines that require a 90-degree directional change in 3-inch PVC pipe runs. Schedule 80 construction provides greater pressure ratings and impact resistance compared to standard Schedule 40 fittings, making it appropriate for applications with elevated system pressures or mechanical stress. Both socket ends are sized for solvent-cement bonding to 3-inch Schedule 80 or Schedule 40 PVC pipe.

Key Features

• Schedule 80 PVC construction for higher pressure ratings versus Schedule 40
• Socket-by-socket (S x S) ends accept 3-inch PVC pipe for solvent-cement bonding
• 90-degree elbow geometry for right-angle directional changes in pipe runs
• Suitable for plumbing, irrigation, chemical, and industrial process applications
• Gray PVC color standard for Schedule 80 identification

Compatibility

Designed as an OEM-style replacement or new-installation fitting compatible with 3-inch Schedule 80 and Schedule 40 PVC pipe systems using solvent-cement socket connections.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable local plumbing codes and ASTM standards for solvent-cementing PVC pipe. Depressurize and drain the system fully before cutting into any existing line. Use the correct PVC primer and solvent cement rated for Schedule 80 fittings, and allow full cure time before restoring system pressure. Do not use this fitting with threaded connections or pipe types for which it is not rated.

Technical Specifications

• Material: PVC Schedule 80
• Connection Type: Socket x Socket (S x S)
• Pipe Size: 3 inches
• Fitting Angle: 90 degrees

Standard Information

• Brand: DURA PLASTIC
• Manufacturer Part Number: PVC8090L3
